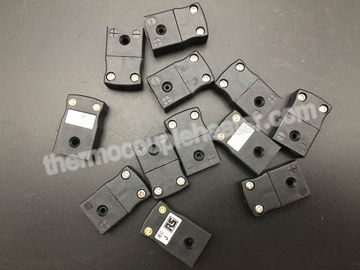

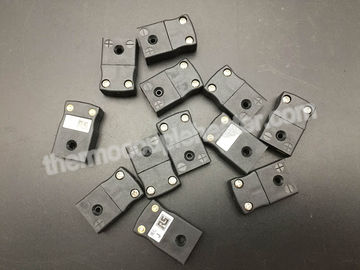

Mini Size Thermocouple Components Thermoplastic Connectors Male Parts

Mini Size Thermocouple Components Thermoplastic Connectors Male Parts

    • Mini Size Thermocouple Components Thermoplastic Connectors Male Parts
    • Mini Size Thermocouple Components Thermoplastic Connectors Male Parts
  • Mini Size Thermocouple Components Thermoplastic Connectors Male Parts

    Product Details:

    Place of Origin: China
    Brand Name: GME
    Certification: CE & ISO
    Model Number: Type J Mini Thermoplastic Thermocouple Connectors

    Payment & Shipping Terms:

    Minimum Order Quantity: 100 pcs
    Price: Negotiation
    Packaging Details: Exported Case Packing
    Delivery Time: 10-15 working days after received your payment
    Payment Terms: T/T, Western Union, D/P, L/C, Paypal
    Supply Ability: 25,000pcs per month
    Contact Now
    Detailed Product Description
    Product Name: Black Type J Thermocouple Mini Thermoplastic Connectors Male Parts Temperature Range Range: 0--600 Centigrade
    Materials: Thermoplastic Types: K, S, N, J, T, E
    Usage: Industrial, Thermocouple Accessories Material: Black
    Conductor Material:: Chromel, Alume Application: Industria



    Black Type J Thermocouple Mini Thermoplastic Connectors Male Parts




    1. Description



    Thermocouple connectors are mini size flat 2 pin TC connectors designed to connect temperature sensor instrumentation and a temperature controller or process control HMI automation panel. Male 2 pole TC plugs and matched female 2 prong TC jack pairs are stock items.



    Connector is widely used in thermocouple and RTD circuits ,best solution for quick and good contact. Different models are on offer for different applications.





    2.  Characteristics



    • Maximum ambient temperature for the thermoplastic body continuous usage is 200 degrees celsius.
    • Well designed body ensure good insulation inside, and well designed pins construct ensure good contact.
    • Available in all color code standard. ANSI color code standard will be the one if the customer do not have special requirements.
    • Thermoplastic body and ceramic material body are both available.
    • Original thermocouple alloy material pins, and spring loaded inserts.
    • Solid pins and hollow pins are both available, offer good contact and competitive price.
    •  Pins are polarized


    3. Thermocouple Connector Parameter.


    Wire size



    • Accepts wires from 0.2 mm to 2.0 mm.
    • Maximum cable diameter 8.0 mm.


    Max. Temperature



    • 200 Deg. C for thermoplastic body
    • 650 Deg. C for ceramic body

    Mini Size Thermocouple Components Thermoplastic Connectors Male Parts





    Mini Size Thermocouple Components Thermoplastic Connectors Male Parts


    Mark Material Color
    K Nickel chrome - nickel silicon yellow (ANSI), green (IEC)
    J Iron-copper nickel Black
    N Silicon nickel chrome - nickel silicon magnesium Orange
    T Copper - copper nickel blue
    E Copper nickel- chrome nickel purple
    R/S Copper - copper nickel green



    4. Thermocouple Connector Application


    This thermocouple connector is widely used in the thermocouple and RTD circuits and instrument machine.


    5. Thermocouple Connector Connector



    • Good Quality :We have strict quality control system .Good reputation in the foreigner market.
    • Fast & Cheap Delivery: We have big discount from forwarder (Long Contract).
    • Low MOQ: It can meet your promotional business very well.
    • OEM Accepted : We can produce any your design as long as you provide us the drawing.
    • Good Service : We treat clients as friend.

    Mini Size Thermocouple Components Thermoplastic Connectors Male Parts
