Wuhan Global Metal Engineering Co., Ltd
The pioneer manufacturer of heaters & sensors
 |
| Place of Origin: | Wuhan, China |
| Certification: | ISO/CE/UL |
| Minimum Order Quantity: | 100PCS |
|---|---|
| Packaging Details: | Normal exporting cartons |
| Delivery Time: | 5-8 days after payment |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 10000pcs |
| Usage: | Industrial | Temperature Range: | -50 To 300 / -58 To 572 |
|---|---|---|---|
| Probe Entry: | Customize | Theory: | Temperature Sensor |
| Length: | Customize | Accuracy: | Class I / II |
| High Light: | industrial heating elements,temperture sensor component |
||

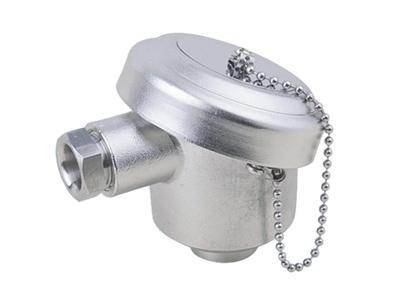

Thermocouple sensor connection head KD
Specification
| Material | Alloy-Aluminum, KNE Weight 274g |
| Protection Tube Entry | PF1/2", PF3/4", NPT3/4", BSP1/2", BSP3/4", M20×1.5 |
| Extension Wire Entry | PF1/2", PF3/4", NPT3/4", BSP1/2", BSP3/4", M20×1.5 |
| Material of Terminal Block | Ceramic, Bakelite |
| Form of Terminal Block | 2P-C, 3P-C, 4P-C, 6P-C 2P-B, 3P-B, 4P-B, 6P-B |
| Available Color | Silvery, Yellow, Red, Blue, Purple, Black |
| Approval IEC529 | IP65 |

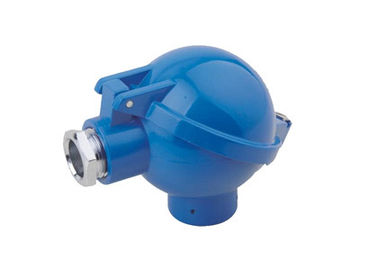

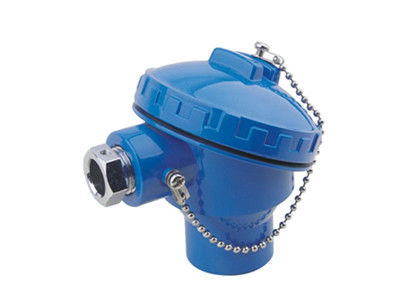

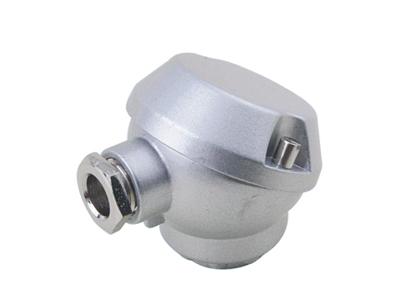

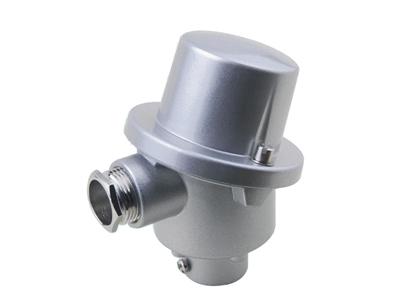

KNE, KSE, KNC, KSC, KD, KB, KNA, DANA, DAAD, NAA, MAA, TS, TL thermocouple heads etc.
The specification of Thermocouple head (thermocouple,thermocouple head,industrial thermocouple,surface thermocouple,sensor)
(1) Probe entry: M12×1, M16×1, M20×1, M22×1, M24×1, M27×1,
G1/2, G3/4, NPT1/2, NPT3/4
(2) Wire entry: M20×1.5, G1/2, G3/4, NPT1/2, NPT3/4
(3)Material : SUS304 or SUS 316 Excellent appearance.Explosion Proof standard : dIIBT1 ~ T6 Conforming to international standard IEC529 and IP65 approval. Can assemble with various types of thermocouple and resistance bulbs. 3P-B (H=36) can assemble with explosion proof thermocouple and resistance bulbs which have.
(4)Available in thermocouple types: K, T, J, N, Pt100 and others.Thick wall protective sheaths in stainless steel
| Packaging Details: | standard exported package according to your demand |
|---|---|
| Delivery Detail: | in one week |
