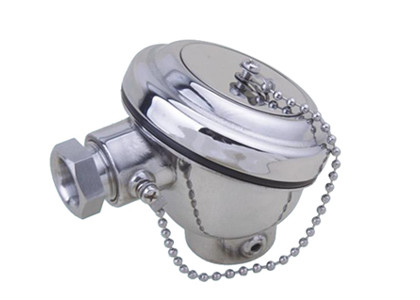

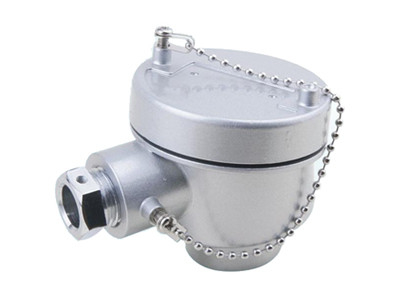

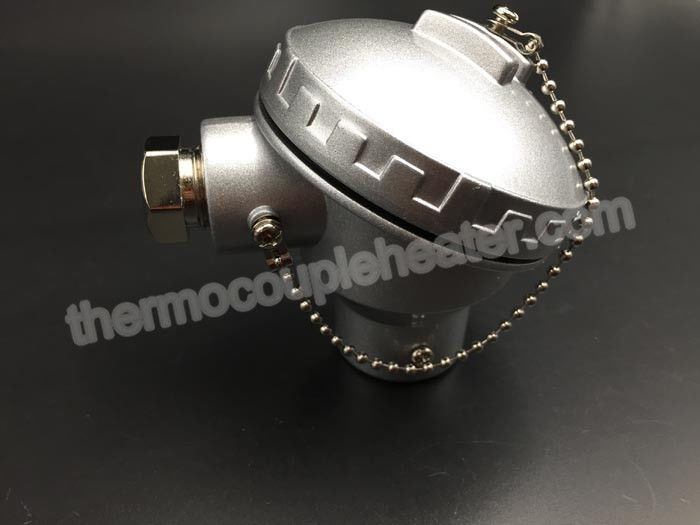

Aluminum Thermocouple Connection Head Good Mechanic Strength For Industry

Aluminum Thermocouple Connection Head Good Mechanic Strength For Industry

Aluminum Thermocouple Connection Head Good Mechanic Strength For Industry

Product Details:

Place of Origin: China
Brand Name: GME
Certification: CE

Payment & Shipping Terms:

Minimum Order Quantity: 500pcs
Price: negotiate
Packaging Details: export carton
Delivery Time: 12 days
Payment Terms: L/C, T/T, Western Union,paypal
Supply Ability: 50000pcs/month
Contact Now
Detailed Product Description
Model Number: KSE Material: Aluminum

                      KSE type Thermocouple Head
1.specification
Protection Tube Entry:
PF1/2", PF3/4", NPT1/2", NPT3/4", BSP1/2", BSP3/4", M20X1.5
Extension Wire Entry:
PF1/2", PF3/4", NPT1/2", NPT3/4", BSP1/2", BSP3/4", M20X1.5



ItemTypeFeatures for Thermocouple Head
1Cast Iron* Rugged construction
* Screw cover with inside thread
* Moisture and dust resistant
* Ideal for outdoor use
2Burnished
Die Cast
Aluminum
* Small and Lightweight
* Good corrosion resistance
* Gasketed, weather resistant
* Burnished finish
* Safety chain on cover
3Cast
Aluminum
Body and
Cap
* Explosion resistant head
* Rated for: Class III
Class I, Group C, D
Class II, Groups E, F, G
* Screw cover
* Moisture and dust resistant
* Safety Ideal for outdoor use
* Safety Utilizes barrier strip connector (optional)
4Feraloy
with
Iron
Alloy
* Explosion resistant head
for 2-wire transmitter
* Rated for
Class I,
Div 1&2, Groups C, D
Class III
Class II, Div 1
Groups E, F, G, Class III
* Moisture and dust resistant
* Ideal for outdoor use
* Utilizes barrier strip
connector (optional)



sheathing, RTDs can operate in a temperature range of (-200 to 450) °C [-392 to 842] °F.

2.Main Features

1.Material and diameter of sheath will affect temperature range of the thermocouple, i.e. range of thermocouple will be increased with diameter for same sheath material; however, under condition of same diameter, range of therocouple will be determined by material of the sheath;
2.Fast response: smaller the product diameter is, faster the temperature will be changed;
3.Various installation options will meet requirements of different installation conditions;
4.Product with good mechanic strength and air tightness, could be applied under harsh conditions including vibration, low and high operating temperature;


Aluminum Thermocouple Connection Head Good Mechanic Strength For Industry
Aluminum Thermocouple Connection Head Good Mechanic Strength For Industry
