Stainless Steel Assemble Thermocouple Rtd Custom Length With Temperature Sensor

Stainless Steel Assemble Thermocouple Rtd Custom Length With Temperature Sensor

    • Stainless Steel Assemble Thermocouple Rtd Custom Length With Temperature Sensor
    • Stainless Steel Assemble Thermocouple Rtd Custom Length With Temperature Sensor
    • Stainless Steel Assemble Thermocouple Rtd Custom Length With Temperature Sensor
  • Stainless Steel Assemble Thermocouple Rtd Custom Length With Temperature Sensor

    Product Details:

    Place of Origin: China
    Brand Name: GME
    Certification: CE

    Payment & Shipping Terms:

    Minimum Order Quantity: 50pcs
    Packaging Details: cartons, pallet
    Delivery Time: 7~10 working days
    Payment Terms: T/T, Western Union, MoneyGram, L/C
    Supply Ability: 100000 pcs per Month
    Contact Now
    Detailed Product Description
    Temperature Range: -200-1800C Probe Length: Custom
    Probe Material: Stainless Steel Or Nickel Style: K, J, S
    Type: R/S/B/K/N/J/E/T/PT100/PT Heating Element: Nichrome Resistance
    Mounting: Thread/flange/none Material: SS340/310/316,inconel 600,ceramic
    Types Of Terminal Box: Anti-spray/water-proof Connection: Thread

    Stainless Steel B S K E R J N type assemble Thermocouple with temperature sensor

    Description:


    1: the thermocouple's thermoelectric potential is the difference between the temperature function of the two ends of the thermocouple, and not the temperature difference between the cold end and the working end of the thermocouple.


    2: the thermoelectric potential generated by thermocouple. When the material of the thermocouple is homogeneous, it is independent of the length and diameter of the thermocouple, and only relates to the temperature difference of the components and the ends of the thermocouple.


    3: when the components of the two thermocouple wires of the thermocouple are determined, the size of the thermoelectric potential of the thermocouple is only related to the temperature difference of the thermocouple. If the temperature of the cold junction of the thermocouple is kept constant, the thermoelectric force of the thermocouple is only a single value function of the working temperature. The conductor or semiconductor A and B of two different materials are welded together to form a closed loop. When there is a temperature difference between the two persistent points 1 and 2 of conductor A and B, the electromotive force is generated between them, so that a size current is formed in the loop, which is called thermoelectric effect. A thermocouple is used to work with this effect.


    Specification:



    The spring type temperature sensor has good vibration resistance.
    High accuracy, high mechanical strength and good pressure resistance.
    The assembly is simple and the performance is reliable and stable.
    Less thermal response time and less dynamic error



    Ref No. WR Temp
    Thermal element materials

    B: PtRh30-Pt6

    R: PtRh13-Pt

    S: PtRh10-Pt

    N: NiCrSi-NiSi

    K: NiCr-NiSi

    E: NiCr-CuNi

    J: Fe-CuNi

    T: Cu-CuNi

    0~1600C

    0~1300C

    0~1300C

    0~1000C

    0~900C

    0~600C

    0~500C

    0~350C

    Ref No. WZP Temp


    PT100

    PT1000

    CU50

    -200~+650C

    -200~+650C

    -200~+650C

    Pairs quantity of sensor wire

    Simplex

    Duplex

    Ways of Mounting & Fixing

    1: without fixing device

    2: fixed thread

    3: movable flange

    4: fixed flange

    5: right-angle movable flange

    6: fixed thread in wimble shape protection tube

    Types of connections box

    2: anti-spray (Protection class: IP65)

    3: water-proof (Protection class: IP55)

    Types of sensor end

    G: variable section

    K: sheathed elements

    T: flexible sheathed elements

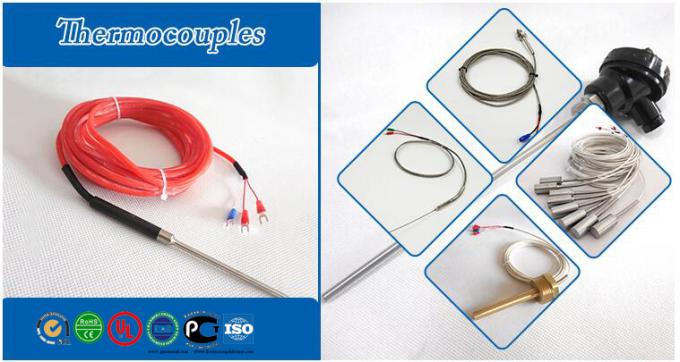

    Stainless Steel Assemble Thermocouple Rtd Custom Length With Temperature Sensor


    Application:



    Thermocouples are used in industry for measuring the temperature of gases, liquids or solid surfaces etc., Its usually assembled with indicators, recorders or computers.
