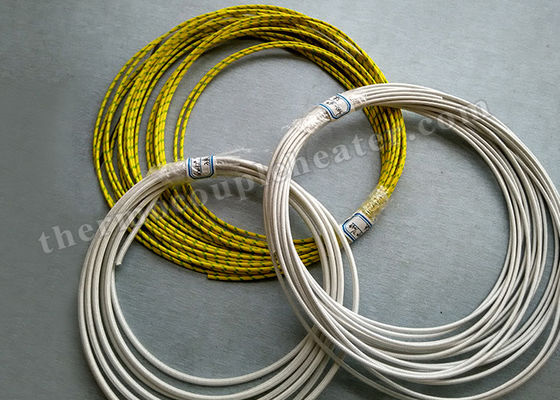

FEP / FEP CMP High Temperature Wire 1 X 1000 Ft 24 / 2 Stranded Shielded Plenum
 |
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | GME |
| Certification: | CE& ISO |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000m |
|---|---|
| Price: | negotiation |
| Packaging Details: | OPP Bag with export carton |
| Delivery Time: | 7 ~~10 days |
| Payment Terms: | T/T, Western Union, L/C |
Detailed Product Description
| Length: | 1000M | Name: | 24/2 Stranded Shielded Plenum, High Temperature Cable, FEP/FEP CMP 1x1000ft |
|---|---|---|---|
| AWG: | 24/Stranded | Insulation Type: | FEP - Fluorinated Ethylene Propylene |
| Insulation Thickness: | .006" | Jacket Color: | Translucent Blue |
| Highlight: | high temperature electrical wire,high temperature insulated wire |
||
24/2 Stranded Shielded Plenum, High Temperature Cable, FEP/FEP CMP 1x1000M
# Conductors: 2 Conductors, Paired
AWG: 24/Stranded (7x32 Tinned Copper)
Insulation type: FEP - Fluorinated Ethylene Propylene
Insulation Thickness: .006"
Conductor Color Code: Brown/Yellow
Shield Type: Overall Foil Shield with drain wire
Jacket type: FEP - Fluorinated Ethylene Propylene
Jacket Color: Translucent Blue
Approvals: (UL), C(UL) CL2P/CMP, Plenum Rated
Jacket Diameter: 0.110" Nominal
Operating Temperature: -70°C To +200°C
Capacitance Conductor to Conductor:
Voltage: 300 V RMS, Max
