High Temperature Thermocouple Components 1MM Diameter Stainless Steel Probe

High Temperature Thermocouple Components 1MM Diameter Stainless Steel Probe

High Temperature Thermocouple Components 1MM Diameter Stainless Steel Probe

Product Details:

Place of Origin: China
Brand Name: GME
Certification: ISO&ICE

Payment & Shipping Terms:

Minimum Order Quantity: 20 PCS
Price: Negotiation
Packaging Details: export carton
Payment Terms: Western Union, L/C, T/T, paypal
Supply Ability: 100000pcs per month
Contact Now
Detailed Product Description
Type: E Type Junction: Ungrounded
Bayonet: NO Material: Stainless Steel
Warranty: Yes Diameter: 1mm
High Light:

thermocouple accessories

,

thermocouple parts and components

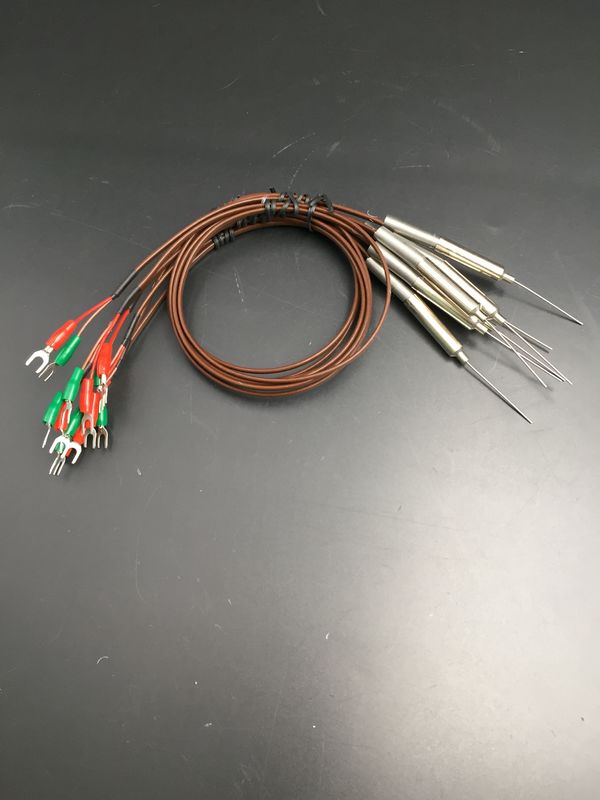

  1MM Diameter Stainless Steel Probe E type Sensor High Temperature Thermocouple



1. Product description



Features with 500 mm long, 1mm thread diameter, 40mm probe Length thermocouple. A thermocouple is a device consisting of two different conductors (usually metal alloys) that produce a voltage proportional to a temperature difference between either end of the pair of conductors.  E Type thermocouple with flexible spring built in. 2 terminals for easy connection. Temperature measurement range is from 0 Celsius to 400 Celsius degree. Widely used for industrial or laboratory to Test equipment's temperature.





2. Application



This E-type thermocouple probe can be used for a wide range of applications and is protected from most corrosive substances. This E-type thermocouple can be mounted in ovens, kilns or furnaces. It is also used to monitor machines and liquids in industrial processes. In metal working it can be used to measure some melted metals, for example lead in bullet casting and some melted aluminum.





3. Customization

Provide OEM service, most products are customizable (please consult with us for details).





4.After sale service

One year warranty since product shipped out. Fully technical support for application.



High Temperature Thermocouple Components 1MM Diameter Stainless Steel Probe
