Wuhan Global Metal Engineering Co., Ltd
The pioneer manufacturer of heaters & sensors
 |
| Place of Origin: | China |
| Brand Name: | GME |
| Certification: | ISO& |
| Minimum Order Quantity: | 20 pcs |
|---|---|
| Price: | negotiatable |
| Packaging Details: | stanard export carton |
| Delivery Time: | 15 days after receiving full payment |
| Payment Terms: | L/C, T/T, Western Union, paypal |
| Supply Ability: | 5000pcs/month |
| Dia Of Probe:: | 6mm | Type:: | PT-100 |
|---|---|---|---|
| Lenght Of Probe:: | 50mm | Diameter: | 6mm |
| Material: | Stainless Steel | Name: | 6mm Diameter Pt100 Stainless Steel Temperature Sensor With Metal Horse Tube |
| High Light: | temperature sensor rtd,temperature sensor rtd pt100 |
||

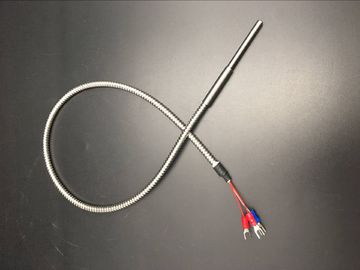

PT100 stainless steel temperature sensor with metal horse tube
Features
Technical details
| Measuring range sensor | -50 °C…+200 °C or -200 °C…+400 °C |
| Pt100 | 3- or 4-wire single or duplex, 1/3 DIN class B, option 1/5 or 1/10 DIN |
| Insertion dimensions | Diameter 3….20 mm, length 5 mm…4 m |
| Process connections | Threaded, hygienic connections EHEDG en 3A, flanges |
| Output | 3- or 4-wire Pt100 or head mounted transmitter |
| Head mounted transmitter | 4-20 mA 2-wire, option ATEX Ex-ia, HART protocol, Profibus PA, accuracy 0,1 % |
| Electronics housing | AISI 304 with bajonet or scew cover |
| Protection | IP65 and IP68 (screw cover) |
| Ambient temperature | -20 °C...+70 °C |
| Wetted parts | AISI 316, other materials on request |
| Options | Exchangeable element, extended neck length |
| Special designs |
F.e. duplex housing with 2 transmitters, ambient sensors, angled insertion, bendable insertion
|
