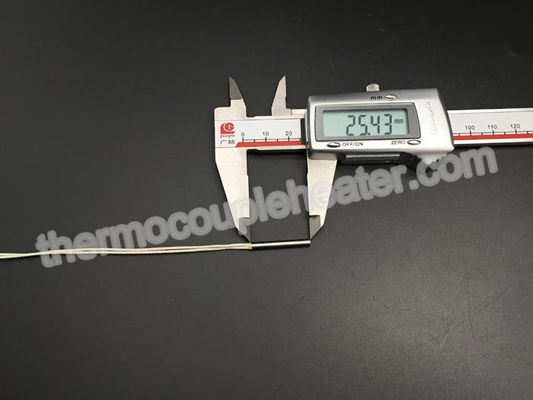

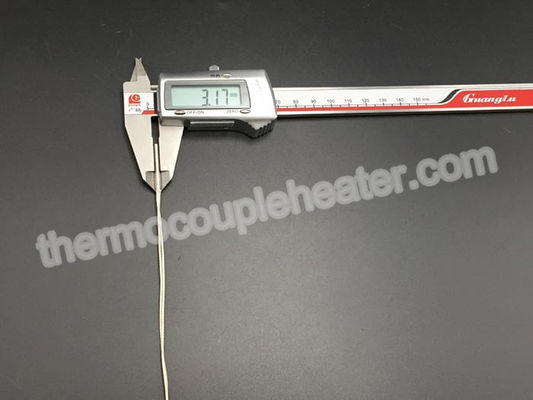

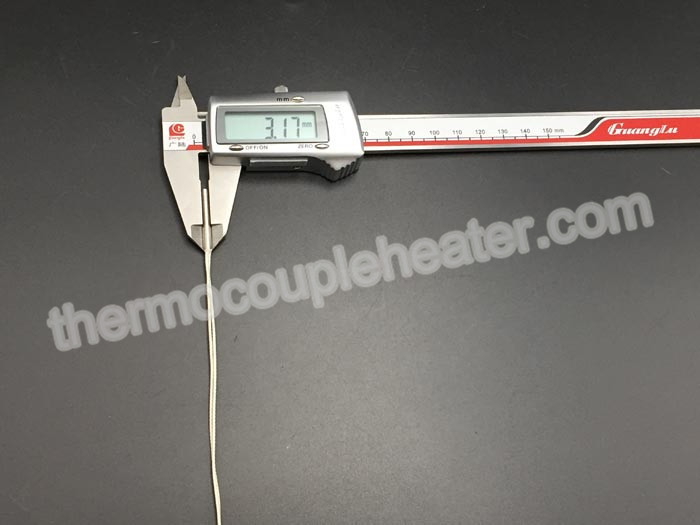

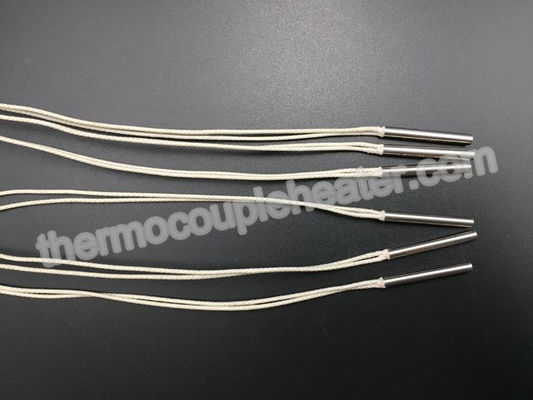

High Watt Density Cartridge Heaters 1/ 8 Diameter Mininiature Ni80Cr20

High Watt Density Cartridge Heaters 1/ 8 Diameter Mininiature Ni80Cr20

    • High Watt Density Cartridge Heaters 1/ 8 Diameter Mininiature Ni80Cr20
    • High Watt Density Cartridge Heaters 1/ 8 Diameter Mininiature Ni80Cr20
    • High Watt Density Cartridge Heaters 1/ 8 Diameter Mininiature Ni80Cr20
  • High Watt Density Cartridge Heaters 1/ 8 Diameter Mininiature Ni80Cr20

    Product Details:

    Place of Origin: China
    Brand Name: GME
    Certification: ISO/CE/UL/CSA

    Payment & Shipping Terms:

    Minimum Order Quantity: 12pcs
    Price: USD 1-100 FOB Shanghai/pc
    Packaging Details: Exported Case Packing
    Delivery Time: 7-15Wroking Days
    Payment Terms: T/T, Western Union, L/C,PayPal
    Supply Ability: 10000pcs/Month
    Contact Now
    Detailed Product Description
    Product Name: High Watt Density 1/8” Diameter Mininiature Cartridge Heaters Thermocouple: None
    Tube Material: High Quality 304SS, 316L Resistance Wire: Ni80Cr20
    Insulation Material: 99.99% High Purity Magnesium Tolerance Of Length: +/-1.5%
    Wattage: 400W

    High Watt Density 1/8” Diameter Mininiature Cartridge Heaters





    Description:



    Cartridge heater is a piece of heating elements made of MgO powder or MgO tube, ceramic cap, resistance wire(NiCr20/80).



    For easy installation, the heaters are made slightly undersize relative to their nominal diameter. ​GME produced cartridge heaters provide superior heat transfer and uniform temperatures, resistance to oxidation and corrosion and long life even at high temperatures.Our experience ensures that the performance and life expectancy of our cartridge heaters supersedes the cartridge heater of other companies.





    Feature



    1. Available in 1/8” – 1” diameters in 304 stainless steel or Incoloy;
    2. Low to high density is available ;
    3. Lead wire -nickel (instead of brass ) ;
    4. Moistureproof- IP65 ;
    5. Ambient temperature is up to 400℃ for the Lead wire insulation material ;
    6. Distributed wattage is available ;
    7. Split cartridge heaters is available ;



    Technical Details



    1 Inside magnesium oxide insulation material: 99.99% high purity magnesium oxide
    2 Heating element: high durance and high temperature NiCr2080 heating elements from Germany
    3 TC material: High quality TC elements to ensure ±5 ℃ tolerance
    4 Max working temperature: 400℃
    5 High voltage stability test: Less than 0.5mA leak under 1000V for 30 seconds
    6 OD range: 3mm-32mm
    7 The range of the Total Length: 25mm----2500mm
    8 Maximum power density: 40w/cm²
    9 Unheated zone: 10mm at lead end and about 5mm at bottom
    10 Lead options: A: Solid Nickel Pin: wire 300℃ or 500℃
    B: Swaged in wire: 500℃ wire coming from inside



    Applications:



    Usually, cartridge heaters are used to heat solids such as injection presses heating plates or various tools; On the other hand, they are also used for heating up water and gases under certain conditions. Especially, it is widely used in automotive industry. Cartridge heaters are also commonly found in the chemical, electronics, medical equipment, packing and nuclear industries.



    • Shoe Making Industry
    • Semiconductor chamber heating
    • Semiconductor wafer lead connection
    • Semiconductor wire and die bonding
    • Freeze protection and de-icing of equipment in cold climates or applications
    • Humidity control
    • Test sample heating in gas chromatography

    •  Marking & Sealing Machinery
    • Seal bars in Packaging Industry

    • Hot Runner Bushings
    • Mold die and platen heating
    • Medical & Laboratory Apparatus
