Wuhan Global Metal Engineering Co., Ltd
The pioneer manufacturer of heaters & sensors
|
Product Details:
Payment & Shipping Terms:
|
China
| Type: | K | Core Material: | +NICRO -NISI |
|---|---|---|---|
| Dimension: | 2 X 7 / 0.2mm, Customized | Temperature Range: | Up To 200℃ |
| Color: | ANSI Standard, Customized | Application: | Connecting Thermocouple And Instrument Machine |
| High Light: | Thermocouple Extension Cable Wire Type K,Teflon Insulated Thermocouple Extension Cable,ANSI Color Thermocouple Compensating Cable |
||

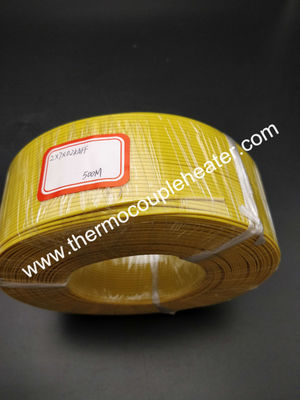

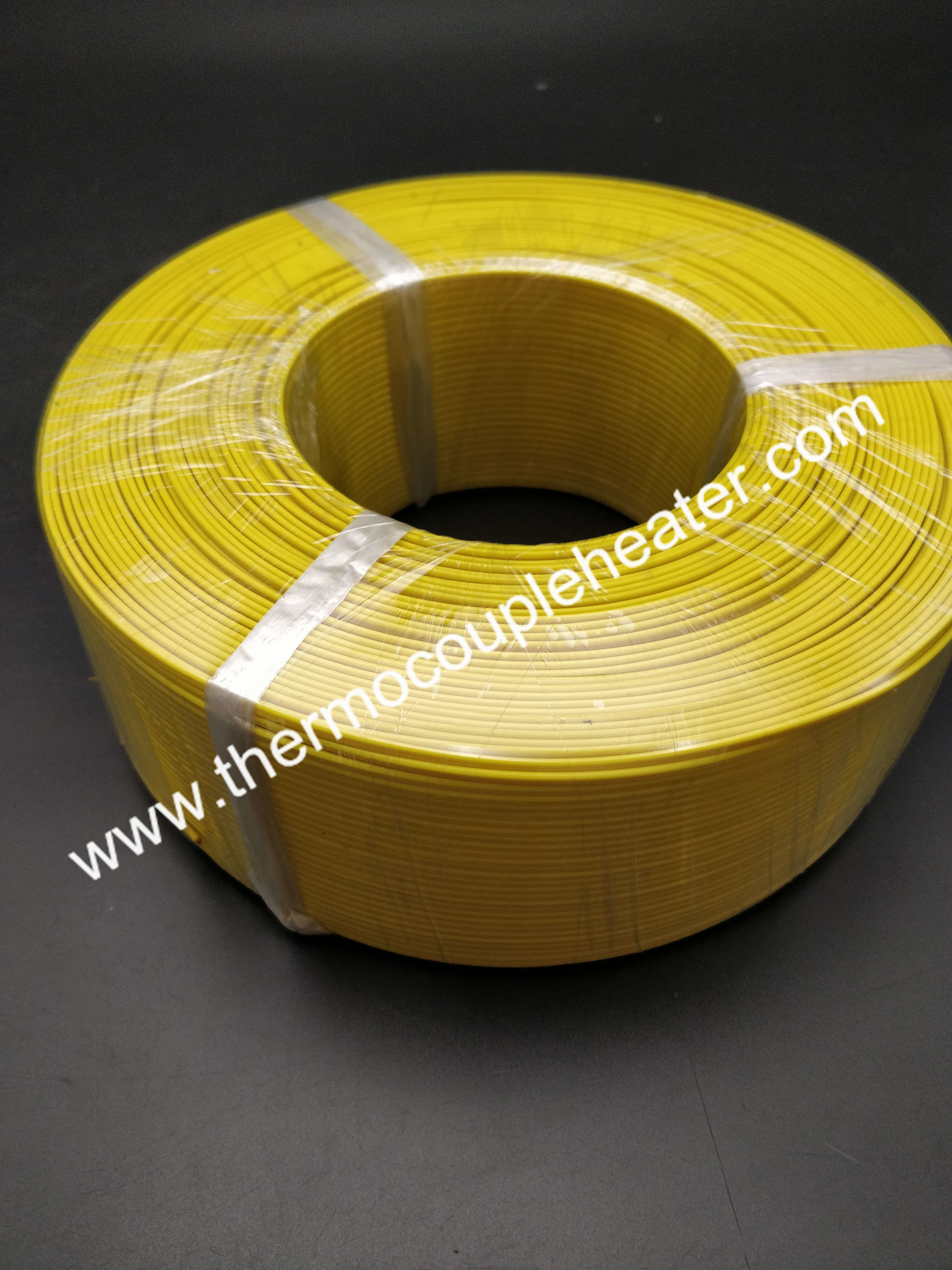

Thermocouple Compensation Extension Cable Wire Type K Insulated
1. Brief Introduction
Thermocouple extension cable consists of conductors of the same nature as the elements of the thermocouple and which extends this to the thermocouple's reference junction.
2. Insulation Material
Commonly there are four types of insulation material for extension cable:
- Fiberglass
-
- PVC
- Silicone.
Stainless steel braided and tinned brass braided are also commonly used in the cable.
3. Color Style
Customers from different areas possibly require different color style for the cable, all color standard are available upon requests.
4. Order Code Example
When asking for quotations, customers are required to provide order specifications, including
- Type
- Conductor Size
- Constructure
- Color Code
- Order Quantity
