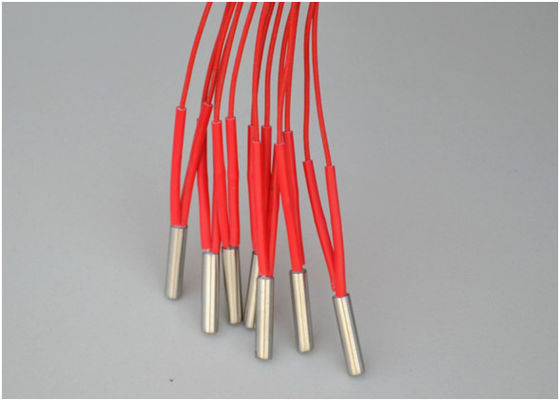

Stainless Steel Metal Sheath Electric Cartridge Heaters 12v 24v 48v 220v 20w 40w

Stainless Steel Metal Sheath Electric Cartridge Heaters 12v 24v 48v 220v 20w 40w

large.img.alt

Product Details:

Place of Origin: China
Brand Name: GME
Certification: ISO9001
Model Number: OEM

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Packaging Details: Standard Export Packing
Delivery Time: 7-15days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100000pcs/month
Contact Now
Detailed Product Description
Dimension: Customized Voltage: 12V 24V 110V 220V 380V
Warranty: One Year Insulation Material: MgO
High Light:

cartridge immersion heater

,

cartridge heater with thermocouple

12v 24v 48v 220v 20w 40w Stainless Steel Metal Sheath Electric Cartridge Heaters





Features



Characteristics & Properties
Tube diameter: Φ2mm-Φ30mm
Tube Material: SS201, SS304, SS316, SS321 and INCOLOY800 etc
Insulation Material: MgO
Conductor Material: Nichrome Resistance Wire
Wattage Density: High/Middle/Low (5-25w/cm2)
Lead Connection Option: Threaded Stud Terminal or Lead Wire
Lead Wire Type: 300mm Standard (/Silicone High Temperature Fiberglass are available)





Parameter



Heat intensity Not exceeding 30w/cm2 (advisable)
Power Depends on the dimension
Exhaust extreme (when cold) <=0.1mA to 242 v.
Insulation (when cold) 5 Min Ohms 500 Watts minimum
Dielectric strength 1500v. 1/sec
Working temperature 650 Deg C max.
Length tolerance +/-1.5%
Diameter tolerance -0.02 to -0.06 mm
Cut off connection tolerance +/-15 mm
Power tolerance (w) +5 % - 10 %
Cold areas Depends on length and diameter 5-25mm





Applications

Semiconductor Chamber Heating
Semiconductor Wafer Lead Connection
Semiconductor Wire and Die Bonding
Freeze Protection and Deicing of Equipment in Cold Climates or Applications
Humidity Control
Patient Comfort Heating used in Medical Devices
Mold Die and Platen Heating
Seal Bars used in Packaging Equipment
Test Sample Heating in Gas Chromatography
Heat Transfer Machine



Stainless Steel Metal Sheath Electric Cartridge Heaters 12v 24v 48v 220v 20w 40w
