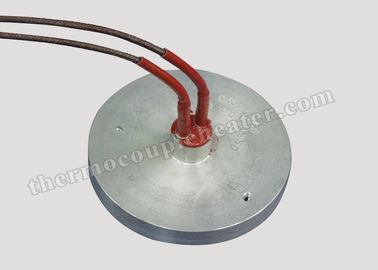

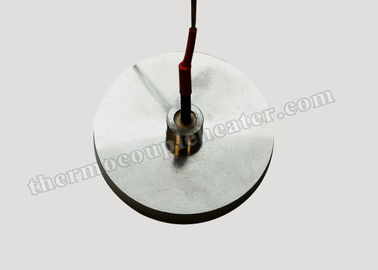

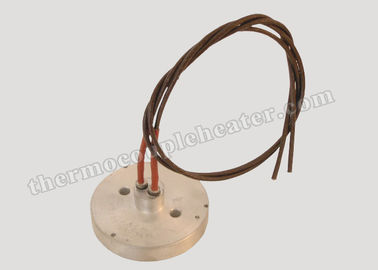

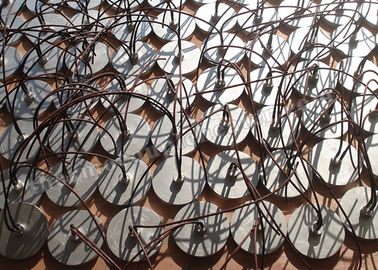

Professional Packaging Machinery Cast Heater , Cast In Aluminum Heaters

Professional Packaging Machinery Cast Heater , Cast In Aluminum Heaters

    • small.img.alt
    • small.img.alt
    • small.img.alt
    • small.img.alt
  • large.img.alt

    Product Details:

    Place of Origin: China
    Certification: ISO9001/ CE

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pcs
    Price: Negotiable
    Packaging Details: Carton or wooden crate or as per your request
    Delivery Time: 10 working days or above
    Payment Terms: L/C, T/T,PAYPAL
    Supply Ability: 100000pcs per month
    Contact Now
    Detailed Product Description
    Product Name: Cast In Aluminum Heaters For Packaging Machinery Application: Industrial Heating
    Voltage: 220V, Or Special Voltage To Order Wattage: 1000W ,or Special To Order
    Alloy Material Casted: Aluminum Heating Wire: Nickel Chrome Wire
    High Light:

    cast aluminum heaters


    Cast In Heaters

    Cast In Aluminum Heaters For Packaging Machinery




    The cast in heaters are composed of one or more electrical heating elements embedded in an aluminum alloy, brass, bronze, copper-nickel or iron type material with excellent thermal conductivity.
    The gravity casting provides excellent homogeneity of the casting material and therefore allows excellent thermal diffusion. The regularity of the surface temperature is ensured by a suitable forming. The cast heating elements can be used to surface temperatures up to 950 ° C.
    Aluminum alloy is the most commonly used material up to a temperature of 400 ° C. For higher temperatures, or because of mechanical stress or specific environmental constraints, it is replaced by alloys of brass, bronze or cast iron.
    The cast in heating devices are machined according to drawings taking into account roughness requirements.




    Industrial Heater

    Cast in heater


    High operating temperatures


    Liquid cooling or air-cooling fins


    Any size or shape customized

    Power Wattage

    Aluminum 35 watts/sq

    Bronze 50 watts/sq

    Max Temperature

    Aluminum 371 degree celsius

    Bronze/copper 700 degree celsius



    Bronze or Copper




    1. Efficient Heat Transfer.
    2. Cast-in heaters can be supplied with cooling tubes & end fitting.
    3. Various Heater terminations.
    4. Uniform surface temperatures.
    5. Also as per your requirements.
    6. Max watt density: Aluminum alloy - 35 w/sq in on heater elements.
    Brass alloy - 45 w/sq in on heater elements.
    7. Max temp:  Aluminum alloy -  375 °C, Brass alloy - 650 °C



    1. Injection and Blow Molding
    2. Extruders
    3. Molds & Dies
    4. Packaging machinery
    5. Medical equipments
    6. Thermoforming equipment.
