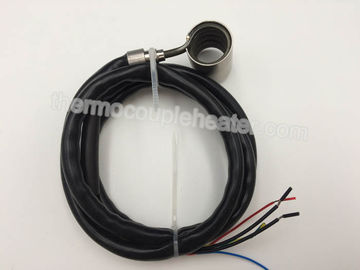

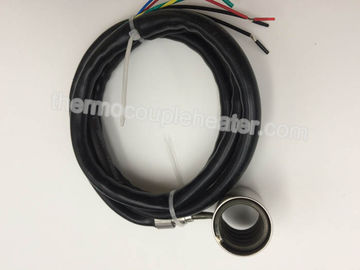

Moistureproof Stainless Steel Heating Coil With Black Silicone Cable Sleeve

Moistureproof Stainless Steel Heating Coil With Black Silicone Cable Sleeve

    • small.img.alt
    • small.img.alt
    • small.img.alt
  • large.img.alt

    Product Details:

    Place of Origin: China
    Brand Name: GME
    Certification: CE & ISO
    Model Number: Coil Heater

    Payment & Shipping Terms:

    Minimum Order Quantity: 10 pcs
    Price: Negotiation

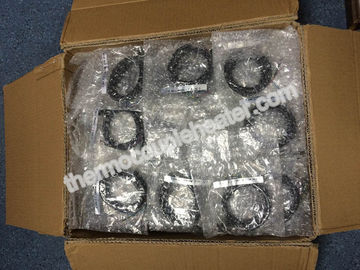

    Packaging Details: Exported Case Packing
    Delivery Time: 7-15 working days after received your payment
    Payment Terms: D/P, L/C, T/T, Paypal, , Western Union
    Supply Ability: 20,000pcs per month
    Contact Now
    Detailed Product Description
    Product Name: Stainless Steel Armor Hotlock Coil Heater Application: Hot Runner
    Certification: CE, Rohs, ISO9001 Moistureproof: IP65
    Insulated Material: Comressed MgO Watt Density: 6.5 W /CM 2
    Power(W): 200-3000W Max.Tempreture: 650℃
    High Light:

    Electric Coil Heaters

    ,

    coil heater with thermocouple

    Stainless steel armor Hotlock Coil Heater With Type J Thermocouple




    1. Coil Heater Description



    Coil heaters have a construction which is similar to high watt density cartridge heaters. These heaters are also known as high performance tubular heaters or cable heaters. They are used when you require highly focused heat with a low profile. They are usually installed where space available for heating is limited and are widely used on hot runner nozzles, and manifolds, die cast nozzles, packaging machines etc.



    2. Electric Resistance Heater Characteristics

    • Various Watt Density options available.
    • Standard sizes available with various cross section
    • Robust Design with Choice of Terminal Exits
    • Designed for even heat profile
    • Precision fit on Hot Runner Nozzles & Manifolds
    • Highly Non-corrosive
    • Maximum heat transfer due to more contact area
    • Advanced Thermal Engineering
    • CE Certified
    • Available with built in Thermocouple



    3.  Electric Resistance Heater Parameter.

    Standard Configuration

    Material :304

    Connector(cold side)(D1xU): Ф3.5x40mm

    Unheated length(L1):45mm

    Power lines,grounding wire length(L):1000mm

    Surface treatment:sandblasting;



    Moistureproof Stainless Steel Heating Coil With Black Silicone Cable Sleeve

    Sheath material Chrome Nickel Steel
    Insulation material High purity MgO
    Heating element NiCr 80:20
    Thermocouple 'J' type (Fe K) 'K' type (Cr Al) grounded or ungrounded
    Connection Wires Stranded Nickel wires with PTFE coating
    Power Tolerance (+5% ,-10%) (smaller tolerances on request )
    Insulation Resistance ≥ 500 MΩ at 500V AC
    Current Leakage ≤ 0.5 mA at 253V AC
    Sheath Temperature 750°C
    Dielectric strength (high voltage test ) Min. 1000V





    4. Electric Resistance Heater Application



    • Plastic injection molding nozzles
    • Medical, analytical and scientific instruments
    • Restaurant and food processing equipment
    • Cast-in heaters
    • Laminating and printing presses
    • Air heating
    • Textile manufacturing
    • Heating in a vacuum environment
    • Semiconductor manufacturing and wafer processing
    • Hot metal forming dies and punches Sealing and cutting bars
