Mineral Insulated Thermocouple RTD Pt100 Pt1000 Sensors With Thermowell

Mineral Insulated Thermocouple RTD Pt100 Pt1000 Sensors With Thermowell

    • Mineral Insulated Thermocouple RTD Pt100 Pt1000 Sensors With Thermowell
    • Mineral Insulated Thermocouple RTD Pt100 Pt1000 Sensors With Thermowell
    • Mineral Insulated Thermocouple RTD Pt100 Pt1000 Sensors With Thermowell
    • Mineral Insulated Thermocouple RTD Pt100 Pt1000 Sensors With Thermowell
    • Mineral Insulated Thermocouple RTD Pt100 Pt1000 Sensors With Thermowell
  • Mineral Insulated Thermocouple RTD Pt100 Pt1000 Sensors With Thermowell

    Product Details:

    Place of Origin: China
    Certification: ISO9001/CE

    Payment & Shipping Terms:

    Minimum Order Quantity: 10pcs
    Price: Negotiable
    Packaging Details: Carton or as per your request
    Delivery Time: 7~20 working days
    Payment Terms: L/C, T/T,PAYPAL
    Supply Ability: 100000 pcs per Month
    Contact Now
    Detailed Product Description
    Product Name: Mineral Insulated RTD Pt100 And Pt1000 Sensors With Thermowell Application: Temperature Sensor For Industry
    Sheath Material: SUS316 Insulation Material: Mineral, Compact MgO
    Max. Temperature: -200 To 500°C Conductor: Cooper ( Nickel On Request)
    High Light:

    temperature sensor rtd

    ,

    temperature sensor rtd pt100

    Mineral Insulated RTD Pt100 And Pt1000 Sensors With Thermowell


    Product  Description:


    Mineral Insulated RTD are equipped in general with Platinum-measuring resistors Pt100 ohm to Din IEC751. The inner (Cu) conductors are embedded in a closely compacted inert mineral powder (MgO), the measuring resistor will be connected to the inner conductors, is also embedded and is surrounded by the metal sheath to form a hermetically sealed assembly . The sheath functions as a useful protective cover in many situations. They are applied in locations where fast response, reduced space and or vibrations resistance is a need .

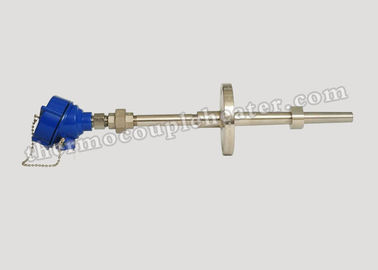

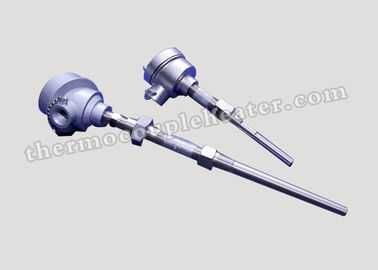

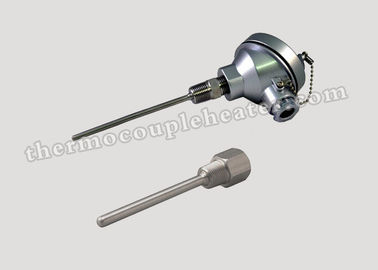

    Mineral Insulated Thermocouple RTD Pt100 Pt1000 Sensors With Thermowell



    Specification:



    “U” Fractional Dimension

    1 5/8”, 2 1/2”, 4 1/2”, 7 1/2”, 10 1/2”, 13 1/2”, 16 1/2”,22 1/2”

    Sheath Material

    304 Stainless Steel,316 Stainless Steel, Solid

    RTD Element Type

    1xPt100

    2xPt100

    1xPt1000

    2xPt1000

    RTD wire connection

    2 wire configuration

    3 wire configuration

    4 wire configuration



    Process Connection

    1/2”NPT, 3/4”NPT, 1”NPT,

    Connection Head Model

    None,3” Split Leads

    Cast Aluminum: Standard

    Cast Aluminum: Mini

    Polypropylene:FDA Appr.

    Cast Iron:Standard

    316 Stainless Steel

    Explosion Proof

    Conduit Opening

    None

    1/2” NPT

    3/4” NPT

    Connection Head Options

    None

    4-20mA Transmitter

    No Terminal Block



    Feature:


    1. Pt100 or Pt1000 as standard (other elements available)
    2. Available in a variety of sheath diameters
    3. Wide operating range between -200°C and +500°C
    4. High insulation resistance(>100M ohm @500VDC at 25°C)
    5. Two, three and four wire configuration
    6. Calibration in accordance with IEC 751
    7. Class A type or 1/3rd DIN with special limits of error optional#.
    8. Suits new or existing heavy duty thermowells.
    9. Suitable for head mounted transmitters
    10. High integrity construction
    11. High accuracy, repeatability
    12. Mineral insulated construction enables the sheath to be bent / routed to suit installation without affecting performance.
    13. Fast and reliable response due to spring loading



    Application:


    Mineral insulated RTD temperature sensor are used in chemical plants, power plants, pipelines, engine building, test rigs, and any measuring locations requiring flexibility and simple replacement.
