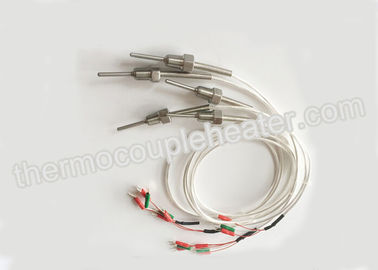

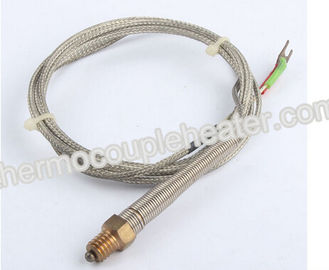

Mineral insulated thermocouple or RTDS in PT100/PT1000 with high tempertaure sensor
Description:
1) GME's Thermocouples are used in industry for measuring the temperature of gases, liquids or solid surfaces etc., Its usually assembled with indicators, recorders or computers.
2) A thermocouple consists of two dissimilar metals joined together at one end. When the junction of the two metals be cooled or heated and a voltage is produced that can be correlated back to the emperature. The calibrations are K, N, E.J, T, S, R, B. Each calibration has a different temperature range
3)Thermocouple is composed of temperature sensor and signal converter, signal converter is installed in the junction box of temperature sensor, temperature sensor produce resistance or potential effects made by the temperature affect, via transformation to create a differential voltage signal. The signal via the amplifier amplification, then through voltage and current transformation, output 4-20 mA current signal corresponding to the range.
Specification:
Technical Specs:
Pt100 sensor
Extension cable - 3 wires/2 wires
Standard cable length:2.5 mt
Pick-up range: from - 50 °C to 220 °C
Protection: IP 68
Flexible tinned copper wires 3x22 AWG
Primary insulation: silicon rubber
Shield: All. foil shield 100%
Secondary insulation: blue silicone rubber
Colour: No. 2 red conductors
No. 1 white conductor
|
Conductor
material
|
Calibration |
Accuracy |
| ClassⅠ |
ClassⅡ |
| Accuracy |
Temperature range( °C ) |
Accuracy |
Temperature range( °C ) |
| NiCr-NiSi |
K |
±1.5°C
Or
±0.4%|t|
|
-40-1000 |
±2.5°C
or
±0.75%|t|
|
-40-1000 |
| NiCr Si-NiSi |
N |
-40-1100 |
-40-1200 |
| NiCr-Konstantan |
E |
-40-800 |
-40-800 |
| Fe-Konstantan |
J |
-40-750 |
-40-750 |
| Cu-Konstantan |
T |
±0.5°C or
±0.4%|t|
|
-40-350 |
±1°C or
0.75%|t|
|
-40-350 |
| PtRh10-Pt |
S |
±1°C or
±[1+ ( t-1100 ) × 0.003]
|
0-1600 |
±1.5°C
Or
±0.25%|t|
|
0-1400 |
| PtRh13-Pt |
R |
0-1600 |
| PtRh30-PtRh6 |
B |
—— |
—— |
600-1700 |
Advantages:
1)GME's products is Easy assembly and convenient for replacement;
2) GME's products is Spring thermal element with good shock-proof performance;
3)GME's products is Wide mesuring range (0~1600 degree Celsius);
4) GME's products is High mechanical strength and good pressure-resistant performance
