Metric Tube And Wire General Purpose RTD Pt100 Probes
Product Description:
Resistance temperature detectors (RTD) accurately sense temperature with an excellent degree of repeatability and interchangeability of elements. The RTD is composed of certain metallic elements whose change in resistance is a function of temperature. In operation, a small excitation current is passed across the element, and the voltage, which is proportional to resistance, is then measured and converted to units of temperature calibration. The RTD element is manufactured by winding a wire (wire wound elements) or plating a film (thin film elements) on a ceramic or glass core and sealing the element within a ceramic or glass capsule.
Since most RTDs have a low initial resistance, often 100 ohms, and have a small change in resistance per unit of temperature range, the resistance of the lead wire is often compensated for with a three or four wire bridge configuration built into the measuring devices. By selecting the proper elements and protective sheathing, RTDs can operate in a temperature range of (-200 to 650) °C [-328 to 1202] °F.
Specification:
|
Probe Outside Diameter
|
3mm, 4mm, 5mm,6mm
|
|
RTD Element Type
|
1xPt100
2xPt100
1xPt1000
2xPt1000
|
|
RTD wire connection
|
2 wire configuration
3 wire configuration
4 wire configuration
|
|
Wire Description
|
24 Gage Stranded Stainless Steel Braid

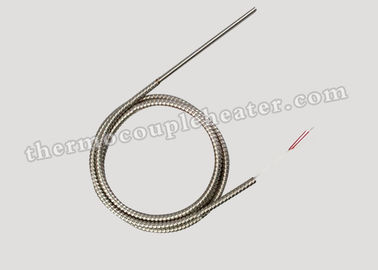

Flexible Armor Cable
24 Gage Stranded Fiberglass Cable
24 Gage Stranded Cable
|
|
Termination type
|

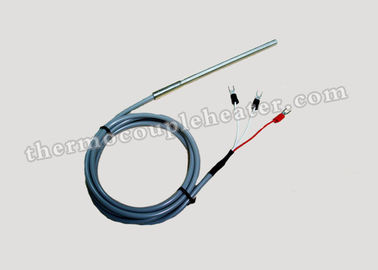

90mm split leads and Bare Ends.
90mm split leads and spade lugs.

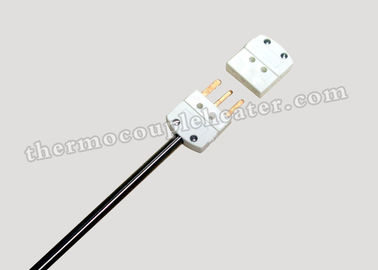

Standard Male Plug (2 & 3 wire configuration only)
Standard Female Jack(2 & 3 wire configuration only)
Mini Male Plug(2 & 3 wire configuration only)
Mini Female Jack(2 & 3 wire configuration only)
|
Feature:
Temperature range -328 °F (-200 °C) thru +1562 °F (+850 °C)
Standard temperature rated for use up to 1112 °F (600 °C)
Rigid and bendable sheaths
® coated probes available
Elements 100 or 1000 ohm, Class A (0.06%) or B (0.12%)
Curve European 100 ohms @ 0 °C= 0.00385 ohms/ohm/degree C
Curve American 100 ohms @ 0 °C =0.00392 ohms/ohm/degree C
Thin-film or wire-wound, Platinum, Nickel or Copper
Sheath Diameter: 3mm, 4mm, 5mm,6mm
Sheath length: there is no upper limit on sheath length. The minimum practical length is 2 inches.
Lead configurations: 2, 3 & 4-wire, single + dual element
Quick disconnects standard & custom
Enclosures: standard and explosion proof
Transmitters: Isolated 4-20 mA, DIN rail and head mount, standard & explosion proof.
Thermowells
Application:
The Metric Tube And Wire General Purpose RTD Pt100 has been designed to be used in below area,
Automotive, engine test cells
Co-Energy, solar, coal-gasification, fossil fuel, & nuclear
Fuel cells
Food & Beverage
Ovens & Chillers
Industrial processes
Medical
Pharmaceuticals
Chemical & Petrochemical
R&D
