Wuhan Global Metal Engineering Co., Ltd
The pioneer manufacturer of heaters & sensors
 |
| Place of Origin: | China |
| Brand Name: | GME |
| Certification: | CE & ISO |
| Minimum Order Quantity: | 100 M |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Standard Export Packing |
| Delivery Time: | 10-20 working days after received your payment |
| Payment Terms: | T/T, Western Union, Paypel |
| Supply Ability: | 100000 m per month |
| Calibration: | PT 100 | Size: | 3x16/0.2mm |
|---|---|---|---|
| Insulation Material: | Kapton | Package: | In Roll Or Spool |
| Color Code: | ANSI, DIN, LEC, ETC | Max. Temperature: | 260°C |
| High Light: | type k thermocouple extension wire,extension grade thermocouple wire |
||

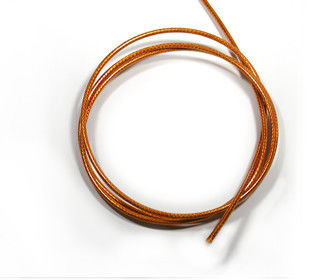

Kapton PT 100 wire , Thermocouple Compensating Cable For Signal Transfer , Chemical Resistance
1. Introduction
| Calibration | PT 100 |
| Size | 3x16/0.2mm |
| Insulation Material | Kapton |
| Package | In Roll or Spool |
| Color Code | ANSI, DIN, LEC, ETC |
| Max. Temperature | 260°C |
| MOQ | 100 meters |
GME can supply a range of Kapton insulated wires for use at temperatures up to 260°C. Wires are constructed using silver plated copper conductors, insulated with Kapton type-F film, which is subsequently treated for vacuum use.
This wire is very tough, durable double wrap of heat fused polymide tape is applied over each conductor. Each insulated single conductor is coated with an ANSI color coded polymide varnish. The jacket consists of a double wrapped heat fused polymide tape.
Excellent abrasion, moisture and chemical resistance.
Kapton-insulated electrical wiring has been widely used in civil and military aircraft because it is lighter than other insulators and has good insulating and temperature characteristics.
Kapton and ABS adhere to each other very well, which has led to widespread use of Kapton as a build surface for 3D printers. Kapton is laid down on a flat surface and the ABS is extruded on to the Kapton surface.
rapped around a ceramic or glass core but other constructions are also used. The RTD wire is a pure m2. Competitive Advantage
3. Application
4. Delivery
