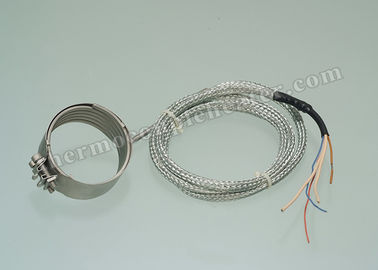

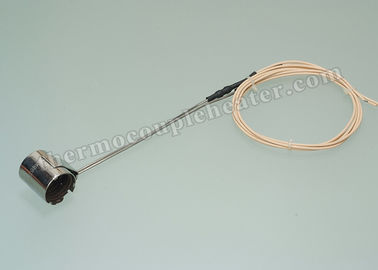

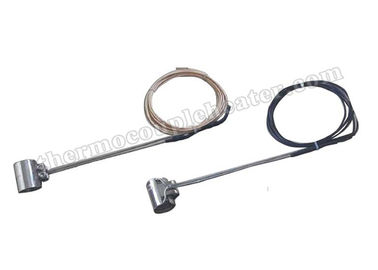

Insulated Compressed MgO Hotlock Copper Coil Heaters with Thermocouple

Insulated Compressed MgO Hotlock Copper Coil Heaters with Thermocouple

    • Insulated Compressed MgO Hotlock Copper Coil Heaters with Thermocouple
    • Insulated Compressed MgO Hotlock Copper Coil Heaters with Thermocouple
    • Insulated Compressed MgO Hotlock Copper Coil Heaters with Thermocouple
  • Insulated Compressed MgO Hotlock Copper Coil Heaters with Thermocouple

    Product Details:

    Place of Origin: China
    Brand Name: GME
    Certification: CE & ISO
    Model Number: Coil Heater

    Payment & Shipping Terms:

    Minimum Order Quantity: 20 pcs
    Price: Negotiation
    Packaging Details: Exported Case Packing
    Delivery Time: 7-15 working days after received your payment
    Payment Terms: L/C, D/P, T/T, Paypal, , T/T
    Supply Ability: 11,000pcs per month
    Contact Now
    Detailed Product Description
    Product Name: Copper Coil Heaters Application: Injection Mould
    Lead Wire Length: 1000 Mm Or Customised Insulated Materia: Comressed MgO
    Max.Tempreture: 650℃ Power(W): 200-3000W
    Dimension(L*W*H): Customized Warranty: 1 Year
    High Light:

    Electric Coil Heaters

    ,

    coil heater with thermocouple

    Hotlock Copper Coil Heaters with Thermocouple




    1. Copper Coil Heaters Brief Introduction



    • Make the groove according to the heating distribution
    • Compatiable with many coil heaters
    • Mini interior diameter 6mm
    • Mini length of the brass tube 30mm
    • Thermocouple K or J available
    • Good performance in heating conducting


    2. Copper Coil Heaters Characteristics

    • Standard sizes available with various cross section
    • Various Watt Density options available.
    • Robust Design with Choice of Terminal Exits
    • Designed for even heat profile
    • Precision fit on Hot Runner Nozzles & Manifolds
    • Highly Non-corrosive
    • Maximum heat transfer due to more contact area
    • Advanced Thermal Engineering
    • CE Certified
    • Available with built in Thermocouple


    3. Copper Coil Heaters Parameter.



    Insulated Compressed MgO Hotlock Copper Coil Heaters with Thermocouple

    Standard Configuration
    Material :304
    Unheated length(L1):45mm
    Connector(cold side)(D1xU): Ф3.5x40mm
    Power lines,grounding wire length(L):1000mm
    Surface treatment:sandblasting;



    Spring coil heater (H series)

    3.2x1.8

    Φ1.8
    Φ2.0

    Φ2.5

    4.2x2.2

    Voltage

    220V,230V,240V

    Power tolerance 115W-200W

    +/-10%

    Power tolerance  201W-2000W

    +5%-10%

    Out jacket length

    30mm~280mm

    inside jacket diameter

    10mm~42mm

    Unheating length

    45mm

    Max power density

    9W/cm²

    Heating Length tolerance

    +/-0.05mm

    Unheating length tolerance

    +/-2.5%

    Tolerance ID d ≤20mm

    0.05mm~0.10mm

    Tolerance cross section

    +/-0.10mm

    +/-0.15mm

    Thermocouple

    K,J,E

    None

    K,J,E

    Material

    304,321,316

    Maximum working temperature

    650℃

    Die electrical strength

    600V

    800V



    4. Copper Heaters Coil Application


    Hot Runner Nozzles & Bushings.
    Hot runner Injection moulds
    Injection & Blow Moulding Machine Nozzles.
    PET prefrom & Thin wall container Moulds.
    Hot Runner Manifolds.



    5. Packing Information



    Insulated Compressed MgO Hotlock Copper Coil Heaters with Thermocouple



    6. Transportation



    Insulated Compressed MgO Hotlock Copper Coil Heaters with Thermocouple
