    Product Details:

    Place of Origin: China
    Brand Name: GME
    Certification: CE

    Payment & Shipping Terms:

    Minimum Order Quantity: 50pcs
    Packaging Details: cartons, pallet
    Delivery Time: 7~10 working days
    Payment Terms: T/T, Western Union, MoneyGram, L/C
    Supply Ability: 100000 pcs per Month
    Contact Now
    Detailed Product Description
    Power Source: Electric Dimension: Customized
    Voltage: 12-480V Sheath Material: Stainless Steel Or Nickel
    Cross Section: 3.2*1.8mm Style: Straight Or Coil
    Lead Wire: Copper, , Fiberglass Silicon Coiling Scheme: Tangential, Radial Exits, Axial
    High Light:

    temperature sensor rtd

    ,

    resistance temperature detecto

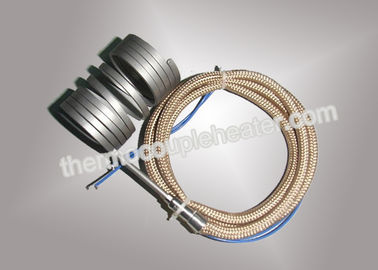

    Industry Heating Spring Coil nozzle Heater for Hot Runner system Heater​


    Description:

    1) GME specializes in manufacturing all kinds of electric heating elements. We have our own patent in cartridge heaters. We also have been certificated by ISO9001and CE in coil heaters, band heaters and immersion tubular heaters.



    2) We provide Mica Nozzle Heaters, Ceramic Heaters, and boiler heater. We provide OEM service for customers all over the world and customize electric heating elements as required. If you are interested in our products, welcome to our website www.thermocoupleheater.com. Please contact me.



    3) GME's heater :



    Adopt imported high-purity Mgo, to ensure excellent heat conduction and electrical property.


    Applicable to injection mold with high productivity and requirement.


    Adopt accurate processing equipment and advanced manufacturing technology. Our hot runner heaters are all deal with 1050ºC heat treatment, thus will be able to fit various molding and bending of different shapes.


    Specification:



    CONNECTION LEADS OPTION
    1. PTFE insulated nickel lead protected with thick silicone coated fiberglass sleeve
    2. PTFE insulated nickel lead protected with stainless steel metal hose
    3. PTFE insulated nickel lead protected with flexible stainless steel metal braid
    4. PTFE insulated nickel lead protection



    Sheath Material Cr Ni-Steel
    Insulation Material MgO
    Resistance Wire Ni Cr 80-20
    Maximum Sheath Temperature 700°C
    Die Electrical Strength 800V A/C
    Insulation > 5 M W
    Thermocouple J type (Standard) or K type
    Length Tolerance (Straight) 5%
    Wattage Tolerance + 10% (+ 5% Available Upon Request)
    Resistance Tolerance + 10% (+ 5% Available Upon Request)
    Unheated Length 35mm (Standard)
    Dimensional Tolerance Coil I.D + 0.1 to 0.2mm
    Coil Length + 1mm


    Product item/ cross section:
    DS1(round with single head): Φ1.6, Φ1.8, Φ2.0, Φ3.0, Φ3.3, Φ3.8, Φ5.0
    DS2 (square with single head): 1.5*2.1, 1.7*3.5, 2*4, 2.2*4.2, 2.7*4.5, 4.2*6.5
    DS3 (square with single head): 3*3, 3.5*3.5, 4*4
    SS1 (round with two heads): Φ1.6-5.0, Φ6.6, Φ8.0, Φ8.5, Φ10.0
    SS2 (square with two heads): 6*6, 8*8

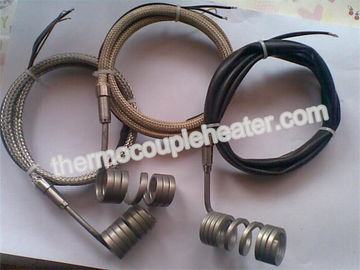

     Industry Heating Spring Coil nozzle Heater Thermocouple RTD CE Approval


    Application:

    1. Injection moulding machine nozzle
    2. Hot Runner Nozzles & Bushings.
    3. Packaging machineries
    4. Hot runner Injection moulds.
    5. Injection & Blow Moulding Machine Nozzles.
    6. PET prefrom & Thin wall container Moulds
    7. Hot runner Manifolds.
