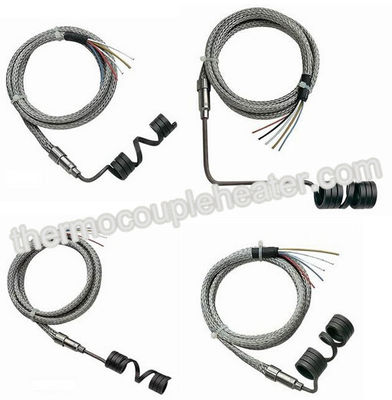

Hot Runner Coil Heaters , Stainless Steel Heating Coil High Working Temperature
Description:
1) Hot runner heaters with built in thermocouple are also available. Hot runner bushes are produced with hot runner heaters of different cross section with inner brass and outer stainless steel cover.
2) Hot Runner Coil Heaters are made of nickel chrome resistance wire placed inside chrome nickel steel tube filled with MgO powder and compacted for faster and efficient heat transfer. The heaters are annealed to acquire malleability for bending into any shape.
Specification:
1.Section Size
Flat: 2.0*4.0, 2.2*4.0, 2.5*4.0, 2.2*4.2
Square:3.0*3.0, 3.3*3.3, 3.6*3.6, 4.0*4.0
Circular:Double Tube1.8, 2.2, 3.0, 3.6
2.Inner Diameter(7MM-120MM)
3.Length
Inner Diameter(below 10mm),L≥30mm
Inner Diameter(10-15mm),L≥22mm
Inner Diameter≥20mm,Length according to customer's requirement
4.Cold End(non-heating length)
13-300mm according to customer's requirement,Connection terminals fixed length: 30MM.
5.Lead wiring
A) Standard Length: 1M(actual length according to customer's requirement)
B) With thermocouple(5 Lines)
Heating: 2 lines,grey,regardless of the positive and negative
Thermocouple: Red(represent positive),Blue(represent negative)
Ground line:yellow-green
C) Without thermocouple(3 Lines)
Heating:2 lines ,grey, regardless of the positive and negative
Ground line:yellow-green
6.Power supply: 220V/230V/240V/380V
7.Watts: 100W-2000W
| Heating section |
2.2x4.2mm 3x3mm 3.4x3.4mm 3.5x3.5m 4x4mm |
| Heating coil ID |
8mm~40mm |
| Heating ring height |
10mm~200mm |
| Voltage |
15V~380V |
| Wattages |
200W~3000W |
| Build-in thermocouple power |
With or without J/K thermocouple |
| Lead wire |
500/1000/1200/1500/2000mm
|
Application:
1. Injection moulding machine nozzle
2. Hot Runner Nozzles & Bushings
3. Packaging machineries
4. Hot runner Injection moulds.
5. Injection & Blow Moulding Machine Nozzles.
6. PET prefrom & Thin wall container Moulds
7. Hot runner Manifolds.
