Hot Runner Brass Tube Electric Coil Heaters , Electric Industrial Heaters

Hot Runner Brass Tube Electric Coil Heaters , Electric Industrial Heaters

    • Hot Runner Brass Tube Electric Coil Heaters , Electric Industrial Heaters
    • Hot Runner Brass Tube Electric Coil Heaters , Electric Industrial Heaters
    • Hot Runner Brass Tube Electric Coil Heaters , Electric Industrial Heaters
  • Hot Runner Brass Tube Electric Coil Heaters , Electric Industrial Heaters

    Product Details:

    Place of Origin: China
    Brand Name: GME
    Certification: CE & ISO
    Model Number: Coil Heater

    Payment & Shipping Terms:

    Minimum Order Quantity: 20 pcs
    Price: Negotiation
    Packaging Details: Exported Case Packing
    Delivery Time: 7-15 working days after received your payment
    Payment Terms: D/P, T/T, L/C, Paypal, , Western Union
    Supply Ability: 11,000pcs per month
    Contact Now
    Detailed Product Description
    Product Name: Coil Heaters With Thermocouple Power Source: Electric
    Power(W): 200-3000W Watt Density: 6.5 W / CM 2
    Insulated Material: Comressed MgO Moistureproof: IP 65
    Lead Wire Length: 1000 Mm Or Customised Material: Stainless Steel 304 316
    High Light:

    Electric Coil Heaters

    ,

    coil heater with thermocouple

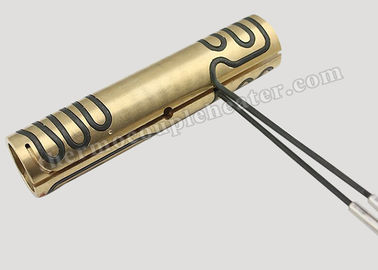

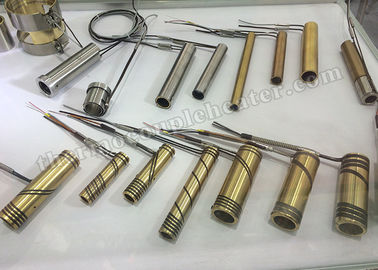

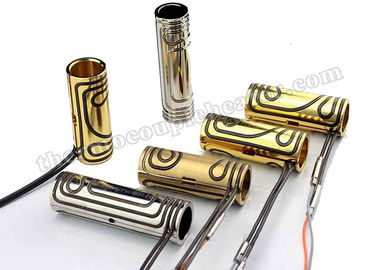

    Hot Runner Brass Tube Electric Coil Heaters with Thermocouple




    1. Coil Heaters with Thermocouple Brief Introduction


    Wuhan Global Metal hot runner heaters use Germany heater wire, United States high-purity magnesium oxide material, and strict process technology. There are various  cross section and size for choice, such as square, round and flat, provide high-performance electric heater for heating hot runner mold and other fields.


    Heater maximum temperature up to 650 ºC, the integration of temperature thermocouple for the precise temperature control, can provide K, J, E thermocouple, blasting and blackening surface treatment, also can provide bright surface.


    2. Coil Heaters with Thermocouple Characteristics



    • Standard sizes available with various cross section
    • Various Watt Density options available.
    • Robust Design with Choice of Terminal Exits
    • Designed for even heat profile
    • Precision fit on Hot Runner Nozzles & Manifolds
    • Highly Non-corrosive
    • Maximum heat transfer due to more contact area
    • Advanced Thermal Engineering
    • CE Certified
    • Available with built in Thermocouple


    3. Coil Heaters with Thermocouple Parameter.



    • Standard Configuration
    • Material :304
    • Unheated length(L1):45mm
    • Connector(cold side)(D1xU): Ф3.5x40mm
    • Power lines,grounding wire length(L):1000mm
    • Surface treatment:sandblasting;



    Spring coil heater (H series)

    3.2x1.8

    Φ1.8
    Φ2.0

    Φ2.5

    4.2x2.2

    Voltage

    220V,230V,240V

    Power tolerance 115W-200W

    +/-10%

    Power tolerance  201W-2000W

    +5%-10%

    Out jacket length

    30mm~280mm

    inside jacket diameter

    10mm~42mm

    Unheating length

    45mm

    Max power density

    9W/cm²

    Heating Length tolerance

    +/-0.05mm

    Unheating length tolerance

    +/-2.5%

    Tolerance ID d ≤20mm

    0.05mm~0.10mm

    Tolerance cross section

    +/-0.10mm

    +/-0.15mm

    Thermocouple

    K,J,E

    None

    K,J,E

    Material

    304,321,316

    Maximum working temperature

    650℃

    Die electrical strength

    600V

    800V





    4. Copper Heaters Coil Application


    Hot Runner Nozzles & Bushings.
    Hot runner Injection moulds
    Injection & Blow Moulding Machine Nozzles.
    PET prefrom & Thin wall container Moulds.
    Hot Runner Manifolds.



    5. Packing Information



    Hot Runner Brass Tube Electric Coil Heaters , Electric Industrial Heaters



    6. Transportation.



    Hot Runner Brass Tube Electric Coil Heaters , Electric Industrial Heaters
