High Temperature Mineral Insulated Thermocouple Cable / MI Cbale

Large Image : High Temperature Mineral Insulated Thermocouple Cable / MI Cbale

Product Details:

Place of Origin:	China
Brand Name:	GME
Certification:	ISO9001

Payment & Shipping Terms:

Minimum Order Quantity:	100 meters
Price:	negotiable
Packaging Details:	Carton or as per your request
Delivery Time:	3~7 working days
Payment Terms:	T/T, Western Union, L/C, Paypal
Supply Ability:	300000 Meters per Month

Contact Now

Detailed Product Description

Name:	High Temperature Mineral Insulated Thermocouple Cable/ MI Cbale	Calibration:	Type J
Accuracy:	Class I	Sheath Material:	SUS316
Application:	Industrial Temperature Sensor	Conductor:	2 Wires
Diameter:	From 0.5-12.7mm	Insulation Material:	99.6% High Purity MgO
Highlight:	mineral insulated metal sheathed cable , mineral insulated heating cable

High Temperature Mineral Insulated Thermocouple Cable/ MI Cbale

Feature

1). Conductor material: NiCr-NiSi, NiCrSi-NiSi, NiCr-Konstantan, Fe-Konstantan, Cu-Konstantan
2). Core number: 2, 4 or 6 cores
3). Sheath material: SS321(SS304), SS316, SS310, INCL600
4). Insulator: 99.6% high purity MgO
5). Dia(mm): from 0.5mm to 12.7mm

Specification

Outside Sheath Diameter available	0.25mm-12.7mm
Calibration Available	J, K, T , E , N, S, R, B
Sheath Material	304 Stainless Steel 316 Stainless Steel 310 Stainless Steel Inconel 600 Incoloy800

Sheath Material	Maximum Temperature In Air	Melting Temperature



SS304	900℃	1405℃
SS321	870℃	1400℃
SS316	925℃	1370℃
SS310	1090℃	1405℃
INC600	1090℃	1400℃

Conductor	Calibration	Accuracy
		I		II
		Tolerance	Temperature	Tolerance	Temperature
Ni Cr - Ni Si	K	1.5 or 0.4%t	-40~1000	2.5 or 0.75%t	-40~1000
Ni Cr Si- Ni Si	N		-40~1000		-40~1000
Ni Cr - Konstantan	E		-40~800		-40~800
Fe - Konstantan	J		-40~750		-40~750
Cu - Konstantan	T	1.5 or 0.4%t	-40~350	1 or 0.75%t	-40~350
Pt Rh 10 - Pt	S	1 or 1+(t-1100)x0.003	0~1600	1.5 or 0.25%t	0~1600
Pt Rh 13 - Pt	R	1 or 1+(t-1100)x0.003	0~1600		0~1600
Pt Rh 13 - Pt Rh 6	B	---	---		600~1700

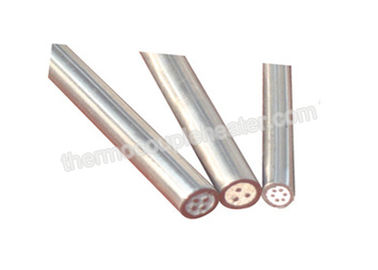

High Temperature Mineral Insulated Thermocouple Cable / MI Cbale 0

Company introduction

Wuhan Global Metal Engineering Co., Ltd (GME) professionally manufactures electric heaters, temperature sensors(thermocouples & RTDs), sacrificial anode, temperature controller and the related accessories primarily to industry since year 1995. After 20 years growth, we have more than 200 employees in the factory including 50 sophisticated technicians. Our products have been exported to many countries in the world.

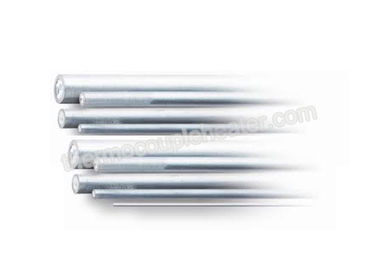

High Temperature Mineral Insulated Thermocouple Cable / MI Cbale 1
RFQ

1.Q:Are you a factory or trading company?
A:GME cable is a cable manufacturing base in Wenzhou,China,with more than 500 workers.

2.Q:How can I get some samples?
A: Free Samples will be sent you by economic International Express if checked available,Freight Charge normally will be on buyer’s account.

3.Q:How does your factory do regarding quality control?
A: Changcheng cable group has ISO9001 and ISO14004 certificate and strict QC system,we deliver only qualified cable.

4. Have you ever supplied cables to our country?
A: GME Cables have been supplied to many countries especially in Middle East,Middle Asia,South America,Southeast Asia countries and regions etc.

5. What is your MOQ?
A: MOQ varies as per the cable type.Normally 500 meters for big diameter cables.

Any questions you have, please kindly contact me.
