High Performance RTD Temperature Sensor PT100 In Thermocouple Probe

High Performance RTD Temperature Sensor PT100 In Thermocouple Probe

    • High Performance RTD Temperature Sensor PT100 In Thermocouple Probe
    • High Performance RTD Temperature Sensor PT100 In Thermocouple Probe
  • High Performance RTD Temperature Sensor PT100 In Thermocouple Probe

    Product Details:

    Place of Origin: China
    Brand Name: GME
    Certification: CE

    Payment & Shipping Terms:

    Minimum Order Quantity: 50pcs
    Packaging Details: cartons, pallet
    Delivery Time: 7~10 working days
    Payment Terms: T/T, Western Union, MoneyGram, L/C
    Supply Ability: 100000 pcs per Month
    Contact Now
    Detailed Product Description
    Power Source: Electric Temperature Range: -200~650℃
    Voltage: 12-480V Probe Material: Stainless Steel Or Nickel
    Style: PT100, PT1000, PT500, K, J Pairs Quantity Of Element: Simplex/duplex
    Heating Element: Nichrome Resistance Mounting: Thread/flange/none
    Usage: Temperature Sensor Feature: Economical
    Types Of Terminal Box: Anti-spray/water-proof
    High Light:

    temperature sensor rtd

    ,

    resistance temperature detecto

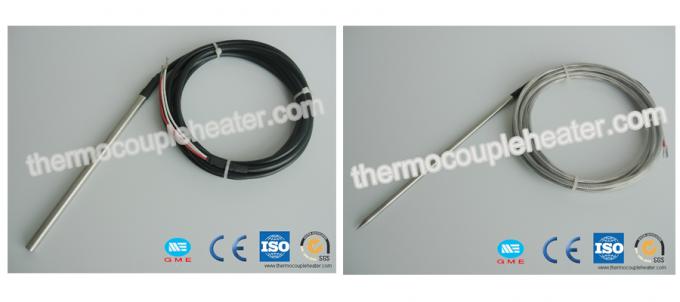

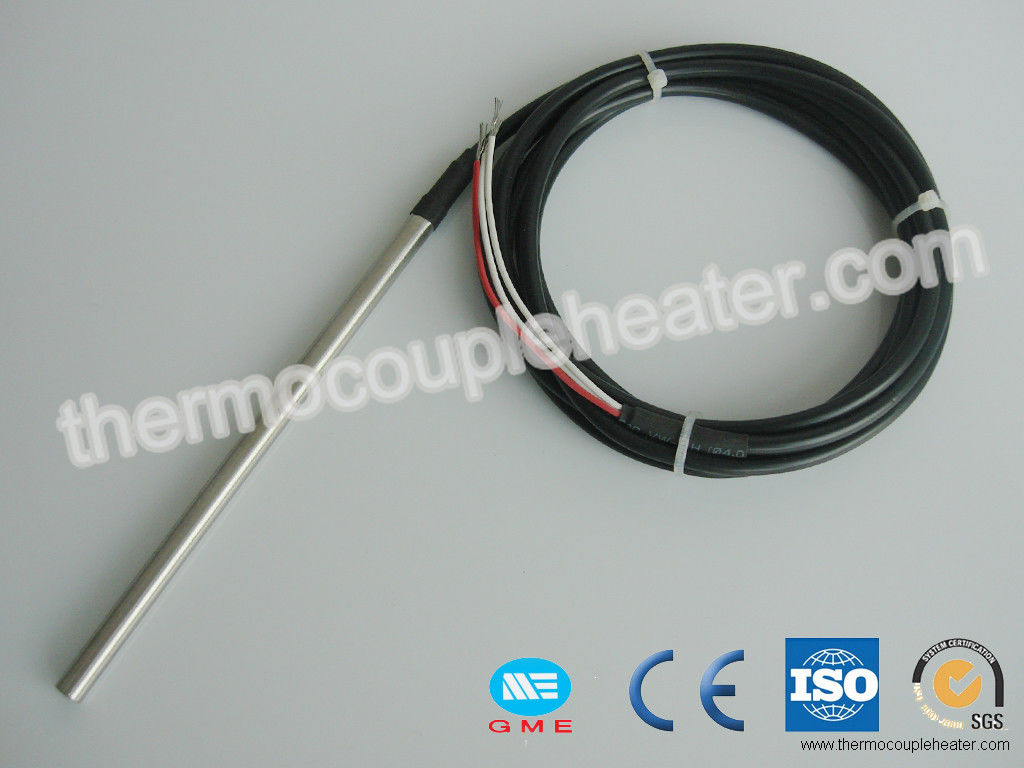

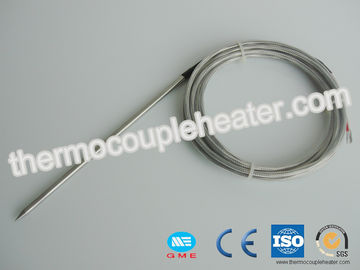

    High Performance RTD Temperature Sensor PT100 in thermocouple probe

    Description:



    1) RTD Temperature Sensor PT100 is designed to be light in weight and easy to install due to its integrated cable assembly. Capable of measuring temperature in the range -50 to 400°C.



    2) PTFE insulated cables rated for temperatures up to 250 °C are provided. Optional overall SS braiding on cable can be provided for protecting cable from mechanical damage and for additional thermal safety. This model of RTD sensor come with SS316 sheath material or an optional SS316L.




    Specification:



    Features:



    1. Flexible extension wire with metal shield can bend freely
    2. Pt100,Cu50 is more reliable and higher accuracy than K,E
    3. Short thermal response time,small size,stainless steel probe,simple structure,low cost, convinient using, etc.
    4. Can measure temperature directly with temperature indicator in the occasion not fitted with protecting tubes.
    5. Be used to measure temperature in the plastic,food,light and textile and the other industries.





    product name temperature sensor industrial usage
    temperature range -55 to 125C
    probe material waterproof stainless steel sheath
    probe length 50mm or customized
    probe diameter 6mm or customized
    wire material PVC
    wire color black, red, white
    wire length 1m or customized 2m 3m 5m 10m cable
    accuracy ±0.5C
    usage Cable channel temperature measurement, temperature measurement of blast furnace water temperature, boiler temperature, room temperature, agricultural greenhouse temperature, clean room temperature measurement, and other non extreme temperature conditions for the storage of ammunition.



    High Performance RTD Temperature Sensor PT100 In Thermocouple Probe


    Application:



    • Food processing equipment

    • De-icing

    • Plating baths

    • Industrial processing

    • Medical equipment

    • Pipe tracing control

    • Industrial heat treating

    • Packaging equipment

    • Liquid temperature measurement

    • Refrigerator temperature control

    • Oven temperature control
