Fiberglass Braided Heat Resistant Electrical Wire , Silicone Rubber Insulated Cable

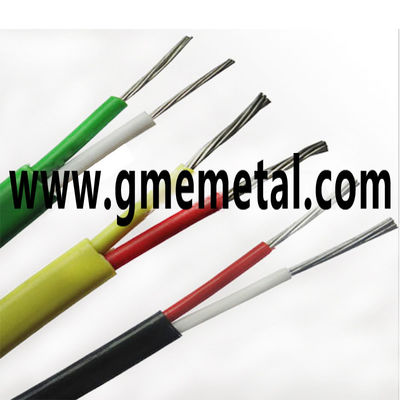

Large Image : Fiberglass Braided Heat Resistant Electrical Wire , Silicone Rubber Insulated Cable

Product Details:

Place of Origin:	Wenzhou, China
Brand Name:	GME

Payment & Shipping Terms:

Minimum Order Quantity:	50M
Packaging Details:	cartons
Delivery Time:	5-8 working days
Payment Terms:	T/T, Western Union
Supply Ability:	10000000 Meter/Meters per Month

Contact Now

Detailed Product Description

Nominal Section:	2.0 Mm2	Rated Voltage:	300/500V
Insulation Material:	Rubber	Conductor:	Tinned Copper
Structure:	Stranded	Packing:	PE Bag, Carton Box, Pallet
Highlight:	high temperature electrical wire , high temperature insulated wire

Fiberglass Braided Heat Resistant Electrical Wire , Silicone Rubber Insulated Cable

Features:

1. Conductor: Tinned Copper

2. Insulation: Silicone Rubbe

3. Braiding: Fiberglass

4. Rated Votage: 300V/500V

5. Rated Temperature: -60°c ~ + 180°c

6. O.D Tolerance: ±0.1mm

7. Color: Green, red, blue, etc.

Prameters:

Nominal section mm²	conductor structure NO./φmm	Average insulation thickness mm	Max diameter mm	conductor direct current resistance 20℃≤Ω/km	testing voltage KV	Average weight

0.3	17/0.15	0.6	1.8±0.05	53	3	6.0
0.35	20/0.15	0.6	1.9±0.05	48	3	8.0
0.5	20/0.18	0.6	2.2±0.05	40	3	9.0
0.75	24/0.20	0.6	2.4±0.10	26	3	12
1	30/0.20	0.6	2.5±0.10	19.3	3	14.5
1.5	30/0.25	0.7	2.9±0.10	13.2	5	20
2	40/0.25	0.7	3.1±0.10	9.9	5	24.5
2.5	49/0.25	0.8	3.7±0.10	7.98	6	29.5
4	56/0.3	0.8	4.2±0.10	4.95	6	46
6	84/0.3	0.8	5.0±0.10	3.3	6	65
10	84/0.4	1.0	6.8±0.10	1.91	6	122
16	126/0.4	1.0	8.0±0.10	1.21	6	174
25	196/0.4	1.2	10.0±0.20	0.85	6	260
35	280/0.4	1.4	11.8±0.20	0.68	6	380
50	399/0.4	1.6	13.6±0.20	0.59	6	550

Fiberglass Braided Heat Resistant Electrical Wire , Silicone Rubber Insulated Cable 0
