Electric Cylindrical Heating Element SS316 304 Sheath Cartridge Heater for Packing Machine

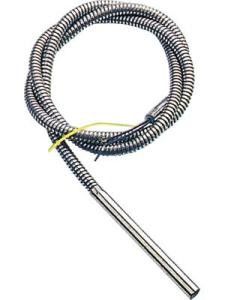

Large Image : Electric Cylindrical Heating Element SS316 304 Sheath Cartridge Heater for Packing Machine

Product Details:

Place of Origin:	Wuhan, China
Certification:	CE, RoHS

Payment & Shipping Terms:

Minimum Order Quantity:	10PCS
Packaging Details:	Normal exporting cartons
Delivery Time:	5-8 days after payment
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	10000 Piece/Pieces per Month

Contact Now

Detailed Product Description

Dimension:	Custom Size	Power:	1.1-6.5W/CM2
Insulation Material:	High-purity Mgo	Certification:	CE ROHSer
Heating Wire:	Ni80Cr20	Power Source:	Electric
Highlight:	electric cartridge heaters , cartridge heater with thermocouple

Product Description

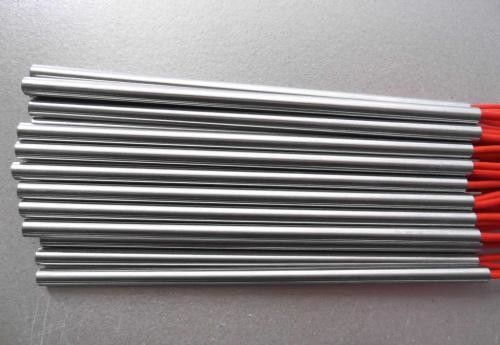

China Factory Electric Cylindrical Heating Element SS316 304 Sheath Cartridge Heater for Packing Machine

Cartridge heater with elbow is cylindrical electrical heating elements. Protected with a stainless steel sheath, their watt density can reach 25 W/cm² and their operating temperature can go up to 800°C (1472°F)

Mostly cartridge heater is used for heating up solids such as injection presses heating plates or various tools, cartridge heater can also be used for heating up water of gases under certain conditions. Widely used for manufacturing plastic and rubber parts in the car industry or in the food processing industry, etc . cartridge heaters are also commonly found in the chemical, electronics, medical equipment, packing and nuclear industries

Various cartridge heater technologies are available. The choice of technology will depend on technical specifications required and the application. Unless you know exactly which product you are looking for, we will recommend you the best solution for your needs.

Cartridge heater:
1.Tube diameter: Φ3 mm-Φ30 mm
2.Tube Material: SS304;SS316,SS321,NICOLOY800 etc
3.Insulation Material:High-purity Mgo
4.Resistance wire element:Ni-Cr or FeCr
5.Lead Connection Option: Crimped or Swagged leads
6.Lead and type of connection leads, 10" Fiberglass Standard(Wire options:,silicone high temperature fiberglass)
