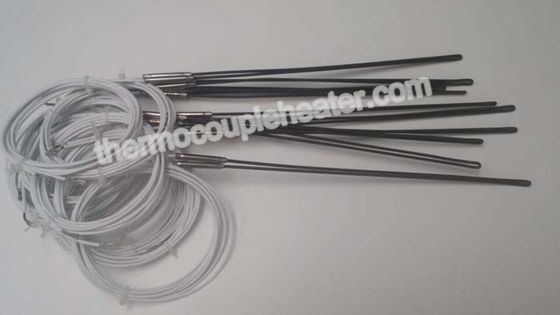

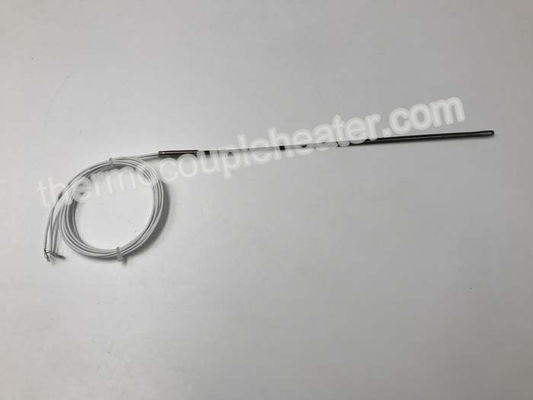

Diameter 1.8mm Spring Mini Coil Heaters With Leads For Hot Runner System

Diameter 1.8mm Spring Mini Coil Heaters With Leads For Hot Runner System

    • small.img.alt
    • small.img.alt
    • small.img.alt
  • large.img.alt

    Product Details:

    Place of Origin: China
    Brand Name: GME
    Certification: CE & ISO
    Model Number: -

    Payment & Shipping Terms:

    Minimum Order Quantity: 10 pieces
    Price: negotiation
    Packaging Details: Export Carton Box
    Delivery Time: 7-15 working days
    Payment Terms: L/C, D/P, T/T, Western Union, Paypal
    Supply Ability: 20,000pcs per month
    Contact Now
    Detailed Product Description
    Product Name: Diameter 1.8mm Spring Mini Coil Heater With Leads For Hot Runner System Thermocouple: Type J
    Application: Hot Runner Plastic Mold Material: Stainless Steel 304, 316
    Moisture Proof: IP 65 Insulated Material: Comressed MgO
    Warranty: 1 Year Lead Wire Length: 1000 Mm Or Customized
    High Light:

    electric resistance heater

    ,

    Electric Coil Heaters





    Diameter 1.8mm Spring Mini Coil Heaters With Leads For Hot Runner System





    1. Coil Heater Brief Introduction



    Coil and cable heaters are made by placing a pair of tiny coils or two lines of straight resistance wire inside a very dense MgO medium. This core is then inserted into a stainless steel shell. These high-performance heating cells can acquire temperatures of up to 1500° F.

    A Coil Spring Heater in its unformed straight stage can have a maximum length of 6ft and its cross-section can be square or rectangular, while a cable heater can be 300ft long and is available in round cross sections. Thermocouple sensors could be installed internally at the tip or the middle of a heater.


    Coil and cable heaters can accommodate "J" type or "K" type thermocouple sensors that could be placed internally at the tip or the middle of a heater. They can be made as well to have profiled or distributed wattage configuration.



    The sheath material of standard cable heaters is stainless 304; their heating core is coiled or straight solid Nickel Chrome wire. Cable heaters can transmit up to 35 W/in2 heating capacity and can attain up to 15000F surface temperature.



    Cable heaters could be coiled, to form coil heaters that are ideal whenever a large amount of heat is required in a confined space. Coil heaters have many applications but are mostly utilized as powerful heating cells inside hot runner nozzles in plastic injection molding.





    2. Coil Heater Characteristics



    • Standard sizes available with various cross section
    • Various Watt Density option available
    • Designed for even heat profile
    • Precision fit on Hot Runner Nozzles
    • Highly Non-corrosive
    • Choice of Terminal Exits
    • Advanced Thermal Engineering
    • Available with in built Thermocouple



    3. Coil Heater Parameter.

    Diameter 1.8mm Spring Mini Coil Heaters With  Leads For Hot Runner System

    • heater 2.2x1.5
      2.4x1.6
      Φ1.8
      Φ2.0
      Φ2.5
      Voltage 220V (standard) ,230V,240V (optional )
      Power tolerance 160W-200W +/-10%
      Power tolerance 201W-2000W +5%-10%
      Unheating length standard length 45mm
      Max power density 9W/cm²
      Heating Length tolerance +/-2.5%
      Unheating length tolerance +/-2.5%
      Tolerance cross section +/-0.10mm +/-0.15mm
      Thermocouple NONE
      Material 304,321,316
      Maximum working temperature 650℃
      Die electrical strength 600V



    4. Spring Coil Heater Application

    1. Applications for Coil Spring Heater
    2. Hot runner nozzles
    3. Cutting & sealing bars
    4. Medical equipment
    5. Rod, pipe & tube heating
    6. Heat tracing
    7. Semiconductor manufacturing
