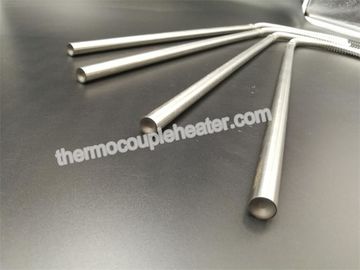

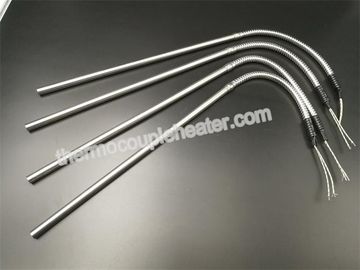

Dia 12.5mm Cartridge Heating Elements / Heating Cartridge Element With Metal Tube

Dia 12.5mm Cartridge Heating Elements / Heating Cartridge Element With Metal Tube

    • small.img.alt
    • small.img.alt
    • small.img.alt
  • large.img.alt

    Product Details:

    Place of Origin: China
    Brand Name: GME
    Certification: ISO/CE/UL/CSA

    Payment & Shipping Terms:

    Minimum Order Quantity: 50pcs
    Price: USD 1-100 FOB Shanghai/pc
    Packaging Details: Boxes or Wooden Cartons
    Delivery Time: 7-15 work days
    Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram, L/C
    Supply Ability: 10000pcs/Month
    Contact Now
    Detailed Product Description
    Lead Wire: Silicon, Glassfiber Shealth Material: SS304 ,SS321 ,SS316
    Color: Biack And White Wattage Tolerance: +5%, -10%
    Application: Oil, Water Or Other Liquid Etc Power Source: Electric
    Voltage: 12-480v Dimension(L*W*H): Customizable
    Type: Air Heater, Cartidge Heaters
    High Light:

    electric cartridge heaters

    ,

    cartridge heater with thermocouple





    Dia 12.5mm Cartridge Heating Elements / Heating Cartridge Element With Metal Tube

    Description:



    1) High precision single end electric heat pipe is done by metal shell loaded high resistance electric thermal bonding wire heating material, around the heating wire with high thermal conductivity of high purity magnesium oxide as a filling material filling and compaction, good insulation performance.This product has the advantages of large power, high thermal efficiency, heat faster.Commonly used in plastic packaging, small mould heating, analysis instrument, the cigarette industry,shoe industry, semiconductor welding heat input, die casting, all kinds of gas expands the cooling effect of heating.



    2) Cartridge heater with elbow is cylindrical electrical heating elements. Protected with a stainless steel sheath, their watt density can reach 25 W/cm2 and their operating temperature can go up to 800°C (1472°F)



    3) Mostly cartridge heater is used for heating up solids such as injection presses heating plates or various tools, cartridge heater can also be used for heating up water of gases under certain conditions. Widely used for manufacturing plastic and rubber parts in the car industry or in the food processing industry, etc


    Specification:



    Customize 3.7v 5v 7.4v 9v 12v 24v 36v 48v 60v 110v 115v 120v 220v 230v 240v 380v 400v heating pad with CE RoHS any size and voltage are available



    Heating pad is one of the lighter and flexibler heater.The heating elements have two material,one is nickel chrome heating wire,another is etching foil Both of them are heating fast and thermal conversion efficiency high.So silicone heaters are widely used on industry,agriculture,medical and household electrical.



    NOTE: we can custom according to your voltage, size, power and so on.

    Some features are follow.



    NO. Description Parameter
    1. Certification CE and Rohs
    2. Voltage range 1.5v~400v
    3. Power density range

    0.03w/cm2~2.5w/cm2

    (0.19w/inch2~16.13w/inch2)

    4. Using temperature range

    -60~250°C

    (-140~482°F)

    5. Width range

    10mm~1200mm

    (0.39"~47.24")

    6. Length range

    10mm~40000mm

    (0.39"~1574")

    7. Thickness range 1~20mm(0.039"~0.79"),standard:1mm(0.039") and 1.5mm(0.059")
    8. Plug Chinese,British, American, European and so on
    9. Quality guarantee 1 year
    10. Life more than 4 years(normal useful)
    11. MOQ 1 piece
    OEM and ODM is welcome,can print your logo



    Dia 12.5mm Cartridge Heating Elements / Heating Cartridge Element With Metal Tube


    Application:





    1.Injection moulding - Internal heating of nozzles

    2.Hot runner systems - Heating of manifolds

    3.Packaging industry - Heating of cutting bars, hot stamps

    4.Laboratories - Heating of analytical equipment

    5.Medical: Dialysis, Sterilization, Blood Analyzer, Nebulizer, Blood/Fluid Warmer, Temperature Therapy

    6.Telecommunications: Deicing, Enclosure Heater

    7.Transportation: Oil/Block Heater, Aircraft Coffee Pot Heaters,

    8.Food Service: Steamers, Dish Washers,

    9.Industrial: Packaging Equipment, Hole Punches, Hot Stamp.





    Packing and Shipping:



    Dia 12.5mm Cartridge Heating Elements / Heating Cartridge Element With Metal Tube



    Dia 12.5mm Cartridge Heating Elements / Heating Cartridge Element With Metal Tube
