Customized Dimension Electric Immersion Water Heater 100w - 3000kw

Customized Dimension Electric Immersion Water Heater 100w - 3000kw

    • small.img.alt
    • small.img.alt
  • large.img.alt

    Product Details:

    Place of Origin: Wuhan, China
    Certification: CE

    Payment & Shipping Terms:

    Minimum Order Quantity: 10PCS
    Price: negotiable
    Packaging Details: packing for export
    Delivery Time: 1-2 monthes
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 100PCS/MONTH
    Contact Now
    Detailed Product Description
    Dimension: Customized Power: 100w-3000kw
    Color: White/customized Type: Air Heater
    Certification: CE Material: Stainless Steel
    High Light:

    flexible tubular heater

    ,

    tubular heater elements

    Water tank use electric tubular immersion water heater



    Product general description

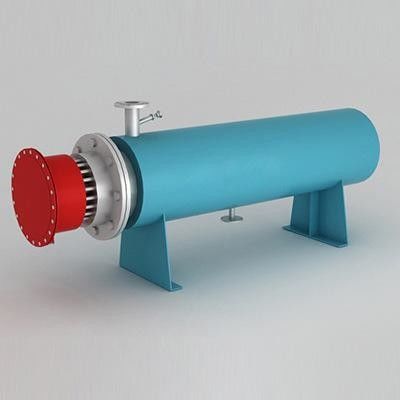

    Water tank use electric tubular immersion water heater is a high quality heater, PID automatic control, temperature can be adjusted as user's request, with over-temperature and over-pressure protection alarm. Main structure is consiste of flange type of concentration of beam immersion heater and tubular housing. In the outlet of water heater PT100 resistance temperature detector is equipped with to test if water temperature reached requirement.In the housing a few guide plate will insure water is heating evently and fully. Insulation aluminum silicate wool will reach good keep warming effection.


    Heating element characteristics



    1. Electric heating resistors is made of nichrome aluminum alloy, it own the advantage of long working life, good oxidative stability, high temperature resistance

    2. Fill magnesium oxide powder in the space between inner shell and resistance wire, with the hig

    h safety performance , good insulating property and heat-conducting property

    3. We supply with many type of electrical heating pipe tubes as chosen:U type,W type,double open ,flange type,with fins etc.Special form can be customered order.

    4. Optional covers material: stainless steel, carbon steel, copper, titanium

    5. Cover is stainless steel tube, with ceramics sealing

    6. Can resist dry burn in certain time

    7. All resistance wires need to be passed strictly insurability test and Proof Pressure test(1800V/min NO Breakdown) before out of factory



    Customized Dimension Electric Immersion Water Heater 100w - 3000kw

    Customized Dimension Electric Immersion Water Heater 100w - 3000kw
