Ceramic Terminal Block Thermocouple Parts And Components For Thermocouple Head

Large Image : Ceramic Terminal Block Thermocouple Parts And Components For Thermocouple Head

Product Details:

Place of Origin:	Wuhan, China
Brand Name:	GME
Certification:	ISO9001:2008

Payment & Shipping Terms:

Minimum Order Quantity:	10PCS
Packaging Details:	packing for export
Delivery Time:	5-8 days after payment
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	10000 Piece/Pieces per Month

Contact Now

Detailed Product Description

Material:	Alumina Ceramic	Material Of Block:	Ceramic
Across Fixing Hole:	40mm	Type:	Ceramic Rings
Terminals:	3 Poles	Material Of Screw:	Stainless Steel
Highlight:	thermocouple assemblies , thermocouple parts and components

1. Product description

Place of Origin:	Wuhan, China	Brand Name:	GME	Model Number:	N-3P-C
Usage:	Industrial	Theory:	Thermocouple Thermometer	bakelite:	ceramic
high temp:	temperature sensor	Conductor Size:	21 - 30 AWG	Number of Contacts:	1 - 10
Type:	terminal blocks

2. Specifications

ISO9001:2008
Terminal block: ceramic
Available models: KNC, CMI,KB,KNE,KD,DAN,NAA
You can choose 3, terminals.

Terminal blocks

1) Available models: KNC, CMI,KB,KNE,KD,DAN,NAA
2) Ceramic body

3) Mounting holes distance: 40mm

4)Ceramic material: talc powder& olefin, 92%Al2O3,99%Al2O3

5)Bakelite material is also available, black color

6)Terminal material:nickel coated brass

7)Screw material: stainless steel, nickel coated iron

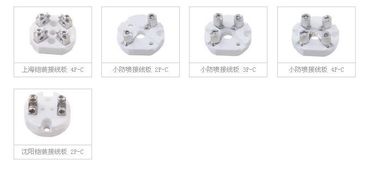

Ceramic Terminal Block Thermocouple Parts And Components For Thermocouple Head 0

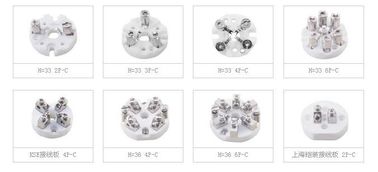

Ceramic Terminal Block Thermocouple Parts And Components For Thermocouple Head 1
