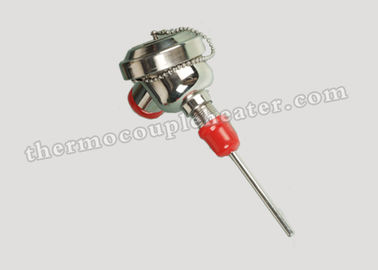

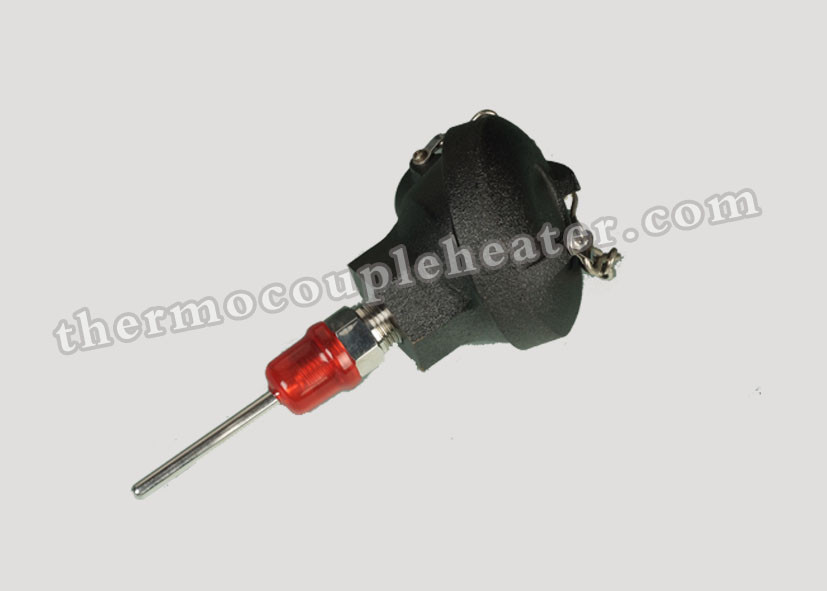

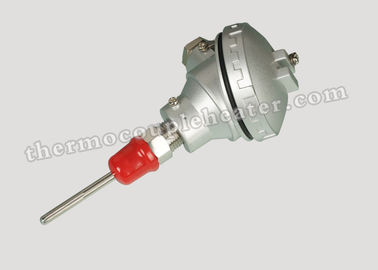

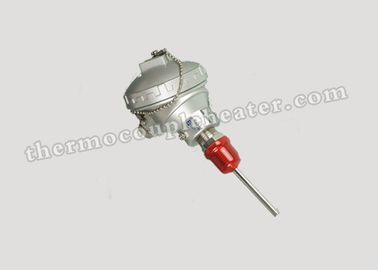

Base Metal Thermocouple RTD sensor Thermocouple Assembly With Metal Protection Tube

Base Metal Thermocouple RTD sensor Thermocouple Assembly With Metal Protection Tube

    • Base Metal Thermocouple RTD sensor Thermocouple Assembly With Metal Protection Tube
    • Base Metal Thermocouple RTD sensor Thermocouple Assembly With Metal Protection Tube
    • Base Metal Thermocouple RTD sensor Thermocouple Assembly With Metal Protection Tube
    • Base Metal Thermocouple RTD sensor Thermocouple Assembly With Metal Protection Tube
  • Base Metal Thermocouple RTD sensor Thermocouple Assembly With Metal Protection Tube

    Product Details:

    Place of Origin: China
    Certification: ISO9001/ CE

    Payment & Shipping Terms:

    Minimum Order Quantity: 10pcs
    Price: Negotiable
    Packaging Details: Carton or as per your request
    Delivery Time: 7~20 working days
    Payment Terms: L/C, T/T,PAYPAL
    Supply Ability: 100000 pcs per Month
    Contact Now
    Detailed Product Description
    Product Name: Base Metal Thermocouple Assembly With Metal Protection Tube Application: Temperature Sensor For Industry
    Common Size: Ø 6.0mm To 26.7mm (3/4" Nominal Bore) Common Element Diameters: Ø 1mm To 3.2mm
    Temperature Range: -200 To 1400 ° C Depending On Thermocouple Sensor Type Common Sensor Types:: K, J, N, T, E
    High Light:

    resistance temperature detecto

    ,

    temperature sensor rtd pt100

    Base Metal Thermocouple Assembly With Metal Protection Tube


    Product  Description:


    Base metal thermocouples are known as Types E, J, K, T and N and comprise the most commonly used category of Thermocouple. The conductor materials in base metal thermocouples are made of common and inexpensive metals such as Nickel, Copper and Iron.

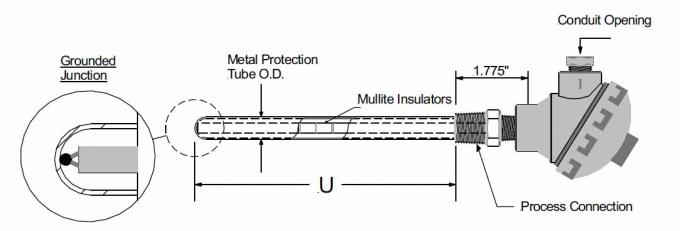

    Base Metal Thermocouple RTD sensor Thermocouple Assembly With Metal Protection Tube



    Specification:





    Outside Diameter

    1/4” NPT Pipe

    1/2” NPT Pipe

    3/4” NPT Pipe

    Wall Thickness



    Schedule 20

    Schedule 40

    Schedule 80

    Sheath material

    Carbon steel

    304 SS

    316 SS

    Inconel 600

    Ceramic Coated

    Carlibration

    Standard Limits of Error J, K,T,E,N

    Special Limits of Error J,K,T,E,N

    Junction

    Grounded ( Single, Dual)

    Ungrounded (Single, Dual)

    Process Connection

    None, 1/2”NPT, 3/4”NPT, 1”NPT,

    Connection Head Model

    None,3” Split Leads

    Cast Aluminum: Standard

    Cast Aluminum: Mini

    Black Nylon Head

    Cast Iron:Standard Size

    316 Stainless Steel

    Explosion Proof

    Conduit Opening

    None

    1/2” NPT

    3/4” NPT

    Connection Head Options

    None

    4-20mA Transmitter

    No Terminal Block



    Type

    Name of Material

    Application Range

    K

    NiCr-Ni

    -200 to 1200°C

    J

    Fe-CuNi

    -40 to 750°C

    T

    Cu-CuNi

    -200 to 350°C

    E

    NiCr-CuNi

    -200 to 900°C

    N

    NiCrSi-NiSi

    -200 to 1200°C



    Feature:



    1. The sensor can be mounted into a thermowell or directly into a process with the use of a fixed,spring loaded or compression process fitting.
    2. The thermocouple sensors available for this assembly are provided with a variety of sheath materials including stainless steels, corrosion resistant and high temperature oxidation resistant alloys.
    „3. Thermocouple diameters range from 2 mm to 8 mm. Standard diameters are 3 mm & 6 mm.
    „4. The thermocouple sensor can be springloaded ensuring a positive contact to the base of a thermowell bore.
    „5. Thermocouple temperature ranges are dependent on the sheath & conductor diameter, element calibration, and sheath material.

    6. A variety of neck extensions are possible. They provide a fixture from the enclosure (connection
    head) to the process or thermowell. The standard neck extensions are the nipple-union-nipple or
    the male threaded neck tube. These extensions allow for directional rotation of the head for field
    wiring as well as a positive quick disconnection of the assembly from the process or thermowell.



    Application:


    The Base Metal Thermocouple Assembly With Metal Protection Tube are designed for use in corrosive or hostile environments. The choice of a specific style is determined by the temperature working range, ambient atmospheric or media conditions and the size and shape required for the application. Control requirements, such as accuracy and speed of response, may also be considerations to take into mind. It is mainly used for below area,

    1. Metal processing such as aluminum, zinc, brass (with appropriate protection tube)
    2. Chemical Industry
    3. Petrochemical Industry
    4. Industrial storage tanks
