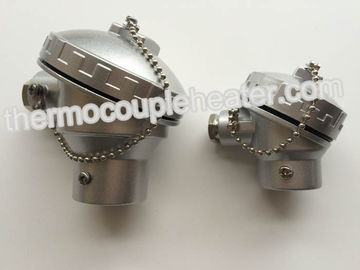

Alloy Aluminum Thermocouple Connection Head With Ceramic Terminal Block

Alloy Aluminum Thermocouple Connection Head With Ceramic Terminal Block

    • Alloy Aluminum Thermocouple Connection Head With Ceramic Terminal Block
    • Alloy Aluminum Thermocouple Connection Head With Ceramic Terminal Block
  • Alloy Aluminum Thermocouple Connection Head With Ceramic Terminal Block

    Product Details:

    Place of Origin: China
    Brand Name: GME
    Certification: ISO/CE/UL

    Payment & Shipping Terms:

    Minimum Order Quantity: 100pcs
    Price: USD 2.5-10 FOB Shanghai/PC
    Packaging Details: Export Carton Package or as Customer Request
    Delivery Time: 7-15 Working Days
    Payment Terms: T/T, Western Union, L/C,PayPal
    Supply Ability: 10000pcs
    Contact Now
    Detailed Product Description
    Product Name: KNE-SS Thermocouple Connection Head Material: Stainless Steel
    Probe Entry: M24*1.5, M16*1, G1/2’’, G3/4’’,NPT1/2’’, NPT3/4’’ Founction: Water Resistant
    Terminal Block:: 2P, 3P, 4P, 6P ,8P
    High Light:

    temperture sensor component

    ,

    industrial heating elements

    Alloy-Aluminum KNE KSE Thermocouple Head With Ceramic Terminal Block



    1. Description:



    Thermocouple head is uaually use with assembly thermocouple and RTD,with terminal block or transmitter in the side.  They are are used for making connection between thermocouple and extension wire, and protect the connection against corrosion, abrasion and breakage caused by handling. Thermocouple heads are easily installed  and convenient for checking



    An outlet for conduct connection is provided with a selection of threaded outlet Sizes for protection tube.

    General Purpose Heads Available in aluminum or cast iron, these heads are superior in durability and convenience.



    A quick acting, tempered wire clamp holds the molded cover tightly against a gasket, making a positive seat. Weatherproof Head with Internal Threads provide complete protection from weather in outdoor locations. In sheltered areas they provide greater protection in chemical and petroleum plants.



    The screw on cover, with close fitting threads, tightens against a gasket. The internal threads are protected from ambient atmosphere by the gasket seal. Double lugs, integral with the cast cover provide for removal by means of a screwdriver or wrench.



    2. Specifications:



    1. Approved IEC529 IP65
    2. KNE-SS Thermocouple head
    3. Type: KNE, all type available
    4. Material: Stainless steel 304/316
    5. Wire entry: M20*1.5, NPT1/2’’, NPT3/4’’, G1/2’’, G3/4’’
    6. Probe entry: M24*1.5, M16*1, G1/2’’, G3/4’’,NPT1/2’’, NPT3/4’’
    7. Standard wire entry and probe entry;
    8. Terminal block: 2P, 3P, 4P, 6P ,8P

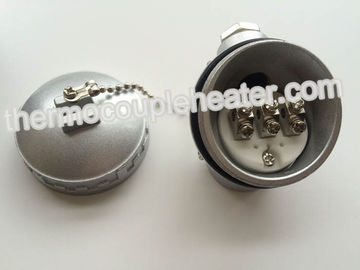

    9. Terminal block material: Bakelite or ceramic.
    10. Wide range of specification;
    11. High precision painting
    12. Accessory: cover sealing and cable gland sealing in silicone free material
    13. Protection level: IP65 of IEC529 Enclosure protection class
    14. Place of Origin: China (Mainland)



    3. Technical Drawing:

    Alloy Aluminum Thermocouple Connection Head With Ceramic Terminal Block





    4. Applications:



    Connecting with thermocouple and RTD



    5. Competitive Advantage:



    1. High precision painting

    2. Suitable for all kinds of thermocouple or thermal resistance

    3. Small minimum order quantity

    4.  All sizes available

    5.  Make head with logo according to your demand

    6.  Excellent corrosion resistance

    7.  Moisture and dust-resistant

    8.  Beautiful outlook and good performance
