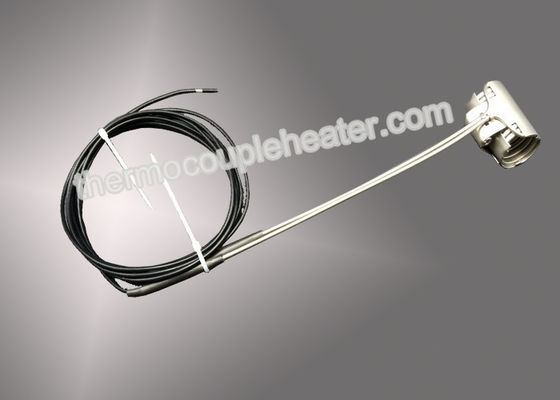

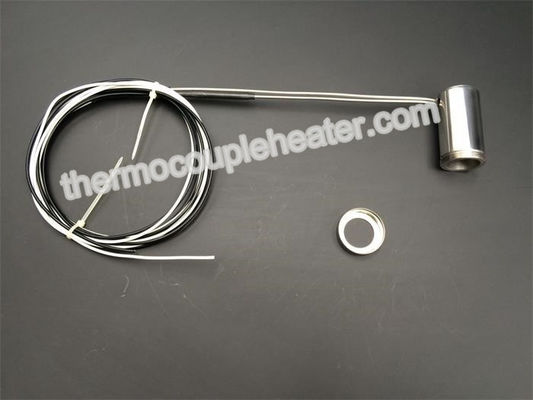

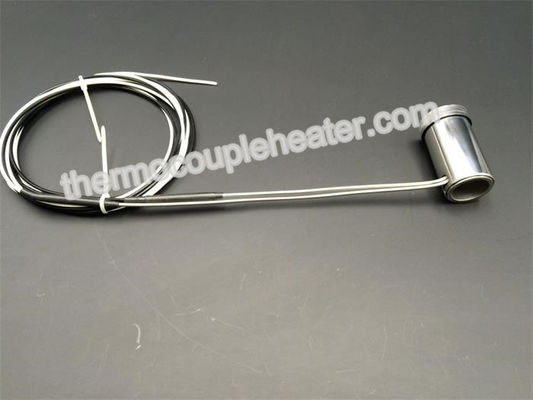

3 X 3mm Injection mold Hot runner system coil heaters with thermocouple

3 X 3mm Injection mold Hot runner system coil heaters with thermocouple

    • small.img.alt
    • small.img.alt
    • small.img.alt
  • large.img.alt

    Product Details:

    Place of Origin: China
    Brand Name: GME
    Certification: CE

    Payment & Shipping Terms:

    Minimum Order Quantity: 50pcs
    Packaging Details: cartons, pallet
    Delivery Time: 7~10 working days
    Payment Terms: T/T, Western Union, MoneyGram, L/C
    Supply Ability: 100000 pcs per Month
    Contact Now
    Detailed Product Description
    Power Source: Electric Dimension: Customized
    Voltage: 12-480V Sheath Material: Stainless Steel Or Nickel
    Cross Section: 2.2*4.2mm Style: Straight Or Coil
    Lead Wire: Copper, , Fiberglass Silicon Coiling Scheme: Tangential, Radial Exits, Axial
    High Light:

    electric resistance heater

    ,

    Electric Coil Heaters

    3 X 3mm Injection mold Hot runner system coil heater with thermocouple



    Description:



    1) GME offer the finest Hot Runner Coil Heaters that are made of nickel chrome resistance wire, placed inside chrome nickel steel tube filled with MGO powder and compacted for faster and efficient heat transfer.



    2) GME's Hot Runner Coil Heater is annealed to acquire malleability for bending into any shape. Hot Runner Bushes are produced with hot runner heaters of different cross sections with inner brass and outer stainless steel cover.



    3) GME's Hot runner coil heater fast heat, heat evenly, high temperature oxidation resistance, good elongation properties, insulation properties, and long service life. Widely used in hot runner plastic mold, blow molding machines, extruders and hot mouth



    Specification:



    1.Use condition: environment temperature -20~+60°C, Relative temperature <95%



    2.Leakage current:<0.5MA



    3.Insulation resistance:≥5MO



    4.Ground resistance:<0.1O



    5.Voltage resistance: no electric breakdown for 1 minute under 1500V



    6.Temperature endurance:100-1200°C



    7. Fiberglass, Stainless Stell Armour & Stainless Stell Braid Lead Options.
        A wide range of lengths are available up to 2000mm.
        Optional built-in-type 'J' Thermocouple.
        Flat, Squre or Round profiles.

    Voltage 120V(Can be customized 12~440V)
    Wattage 100W( Can be customized 200~3000W)
    Dimension 20mm(inner diameter) x 16mm
    Thermal protection Build in Type "K" Thermocouple
    Operation Tempreature 0~800C
    Lead cable Fiberglass/ silicone/Kavlar/armor cable
    Dimension Tolerance Coil I.D + 0.1 to 0.2mm



    3 X 3mm Injection mold Hot runner system coil heaters with thermocouple





    Application:



    1) Hot Runner & Bushings

    2) Tube Extrusion

    3) Pipe Forming

    4) Hot Runner Mould

    5) Plastic Injection Machine

    6) Plastic Extruder Machine

    7) Enail Dnail
    8) Sealing Bars & Dies
    9) Hot Metal Forming Punches



    Shipping



    1) Express: UPS, FEDEX, DHL, TNT, EMS, ect

    2) Air shipping: Please choose your convenient shipping method according your detail requirement.

    3) Sea shipping: large quntity order

    4)Normally, it will take around 3--7days from China to destination country.
