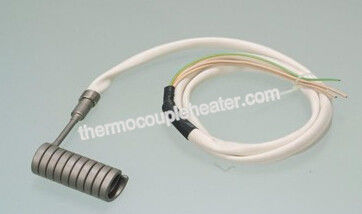

3*3 Industrial Injection Mould Hot Runner Coil Heaters With K J Thermocouple

3*3 Industrial Injection Mould Hot Runner Coil Heaters With K J Thermocouple

    • small.img.alt
    • small.img.alt
    • small.img.alt
  • large.img.alt

    Product Details:

    Place of Origin: China
    Brand Name: GME
    Certification: CE

    Payment & Shipping Terms:

    Minimum Order Quantity: 50pcs
    Packaging Details: cartons, pallet
    Delivery Time: 7~10 working days
    Payment Terms: T/T, Western Union, MoneyGram, L/C
    Supply Ability: 100000 pcs per Month
    Contact Now
    Detailed Product Description
    Power Source: Electric Dimension: Customized
    Voltage: 12-480V Sheath Material: Stainless Steel Or Nickel
    Cross Section: 2.2x4.2mm;3x3mm;4x4mm.. Style: Straight Or Coil
    Lead Wire: Copper, , Fiberglass Silicon Coiling Scheme: Tangential, Radial Exits, Axial
    Material: Brass And Stainless Steel
    High Light:

    electric resistance heater

    ,

    Electric Coil Heaters





    3*3 Industrial Injection Mould Hot Runner Coil Heaters With K J Thermocouple



    Description:



    1) We have a top quality selection of nozzle coiled heaters that are available to buy online, here at GME. The length of our coiled heaters goes up to 2000mg, and they are designed to our customer’s requirements and specifications. See the list below to find out what applications our coiled heaters suit.


    2) The applications the coiled heaters suit are: hot sprue bushings, sealing bars, dies, hot metal forming punches and many more. You’re spoilt for choice with our deluxe range of nozzle coiled heaters.



    Specification:



    - The following list describes our designs of the nozzle coiled heaters:
    - PTFE leads with a Silicone Fibreglass Oversleeve – 1000mm long,
    - A wide range of lengths are available up to 2000mm long (1900mm Heated)
    - Wattages are available up to 1400W
    - Standard Built-In Type ‘J’ Thermocouple.
    - 3.35mm Square section Profile.
    - Clampband optional
    - Available from stock as straight lengths. Coiled to required diameters and length



    Heat intensity Not exceeding 30Wcm2 (advisable)
    Power Depends on the dimension
    Escape of current (when cold) <=0.1mA a 242 v.
    Insulation (when cold) 5 Min Ohmios 500 Watts minimum
    Dielectric strength 1500v. 1/seg
    Working temperature 750ºG max.
    Tolerance of length +/-1.5%
    Tolerance of diameter -0.01 a -0.06 m/m
    Tolerance of cut of connexion +/-15 mlm
    Power tolerance (w) 5 % - 10 %
    Cold areas

    Depends on length and diameter 5-25mm



    3*3 Industrial Injection Mould Hot Runner Coil Heaters With K J Thermocouple

    Application:

    • Caustic Cyanide used in gold processing
    • Hot water storage
    • Asphalt Wax
    • Caustic solutions Detergent
    • Sterilizing equipment
    • Heating oils
    • Plastic processing&packaging machinery
    • Ovens&dryers
    • Dies&Tools
    • Water& Oil heating appliances
    • Vending machines
    • Kitchen equipments
    • Medical equipments
