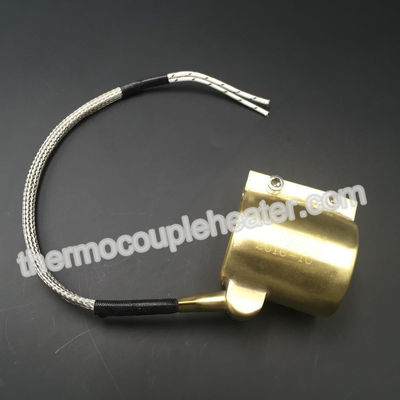

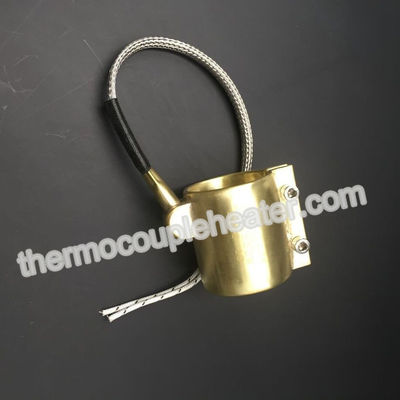

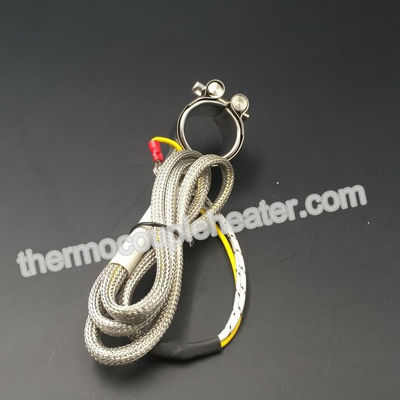

12V Coil Heaters With Thermocouple , Stainless Steel Nozzle Band Heaters

12V Coil Heaters With Thermocouple , Stainless Steel Nozzle Band Heaters

    • small.img.alt
    • small.img.alt
    • small.img.alt
  • large.img.alt

    Product Details:

    Place of Origin: China
    Brand Name: GME
    Certification: CE

    Payment & Shipping Terms:

    Minimum Order Quantity: 50pcs
    Packaging Details: cartons, pallet
    Delivery Time: 7~10 working days
    Payment Terms: T/T, Western Union, MoneyGram, L/C
    Supply Ability: 100000 pcs per Month
    Contact Now
    Detailed Product Description
    Power Source: Electric Dimension: Customized
    Voltage: 12-480V Sheath Material: Stainless Steel Or Nickel
    Cross Section: 2.2*4.2mm Style: Straight Or Coil
    Lead Wire: Copper, , Fiberglass Silicon Lead Wire: Copper, , Fiberglass Silicon
    Coiling Scheme: Tangential, Radial Exits, Axial
    High Light:

    electric resistance heater

    ,

    Electric Coil Heaters



    12V Nozzle band heater with built in ktype thermocouple in brass for hot runner



    Description:



    1) Terminal box that connect the heater

    2) Flexible armor cable for lead protection is available where abrasion is a problem

    3) Concentrated tightness system which ensure maximum contact of the windings

    4) Inox screws with high degree of tightness so as to transport the current correct in thewinding

    5) Specially treated rust-recistance steal, a of Nikel or Inox for temperatures from 480°C and 650°C correspondingly

    6) Grated mica sheets type ''C'' are used for he winding and the insulation of the heaters. It provides excellent thermal conductivity and dielectric strength

    7) The warming source of the heater is created by a selected nickel-chroma wire in ribbon or round form which achieves, with special winding, to create the correct appropriation of heating

    8) External strip of steal-sheets from nickel or inox which covers the total width of the heater





    Specification:



    1) The inner profile is perfectly round,providing a perfect coupling with the nozzle.Size of the connectiong cap is minimal,giving extremely limited overall dimensions.



    2) Power connection is performed by a metal braiding cabl,standard length 1m,with two nickel power leads and one galvanized-copper grounded lead.



    Sheath Material

    Chrome Nickel Steel



    Insulators

    High Grade Steatite Ceramic Insulators (High temperature)



    Heat Saving Thermal Insulation Ceramic Fibre (std.)
    Heating Elements (coil)

    NiCr 60:16, NiCr 80:20



    Nominal Wall Thickness

    Premium Heat : ½" Power Saver : ½" + 5/8" (Outer Insulation) Power Saver PLUS :½" + 1.5" ( Outer Insulation)



    Connection

    Fiber Glass Insulated- Metal Braided Flexible Cable

    (std. 12" long) mounted on rigid screw post terminals



    Voltage Range

    110V - 440V, Single



    Surface Loading

    35-55W / inch2 (depending upon model & application)



    Power Rating

    Depending upon application



    Power Tolerance

    ± 10%



    HV Testing

    1.5 Kv between heating element and sheath



    Insulation Resistance (Cold) < 20 MΩ
    Sheath Temperature

    Up to 500°C maximum (Chrome Nickel Steel sheath)



    Gap Between the Clamping Edge 5 - 10mm
    Resistance

    +/- 10%



    Width :

    Minimum 30mm and there after multiples of 15mm. Minimum 100mm in case of Power saver & Power Saver

    PLUS



    Inner Diameter

    Minimum 50mm Minimum 75mm incase of Power saver & 100mm for Power Saver PLUS




















































































    12V Coil Heaters With Thermocouple , Stainless Steel Nozzle Band Heaters



    Application:



    1) GME's heaters are widely used for Dies

    2) GME's heaters are widely used for Cylinders and drums

    3) GME's heaters are widely used for Plastic film extruders

    4) GME's heaters are widely used for Injection and blow Moulding machine

    5) GME's heaters are widely used for Holding Tanks

    6) GME's heaters are widely used for All Plastic & Rubber Processing Machinery
