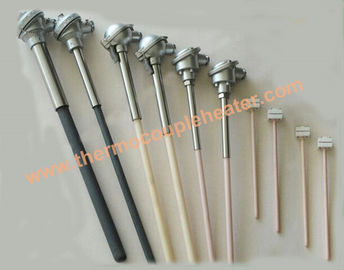

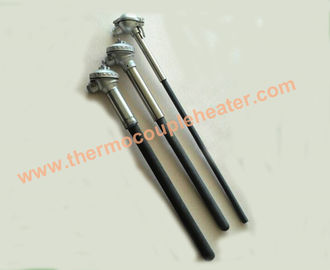

0~1600C S Type Thermocouple Temperature Sensor Rtd With Ceramic Protection

0~1600C S Type Thermocouple Temperature Sensor Rtd With Ceramic Protection

    • small.img.alt
    • small.img.alt
  • large.img.alt

    Product Details:

    Place of Origin: China
    Brand Name: GME
    Certification: CE

    Payment & Shipping Terms:

    Minimum Order Quantity: 50pcs
    Packaging Details: cartons, pallet
    Delivery Time: 7~10 working days
    Payment Terms: T/T, Western Union, MoneyGram, L/C
    Supply Ability: 100000 pcs per Month
    Contact Now
    Detailed Product Description
    Power Source: Electric Temperature Range: -200~650℃
    Voltage: 12-480V Probe Material: Stainless Steel Or Nickel
    Style: K, J, S Pairs Quantity Of Element: Simplex/duplex
    Heating Element: Nichrome Resistance Mounting: Thread/flange/none
    Function: Temperature Sensor Feature: Economical
    Types Of Terminal Box: Anti-spray/water-proof Connection: Thread
    Diameter: 0.5mm
    High Light:

    resistance temperature detecto

    ,

    temperature sensor rtd pt100





    0~1600C S Type Thermocouple Temperature Sensor Rtd With Ceramic Protection



    Description:



    1) Thermocouple is composed of temperature sensor and signal converter, signal converter is installed in the junction box of temperature sensor,



    2) temperature sensor produce resistance or potential effects made by the temperature affect, via transformation to create a differential voltage signal.



    3) The signal via the amplifier amplification, then through voltage and current transformation, output 4-20 mA current signal corresponding to the range.



    4) Assembly thermocouple temperature sensor is widely applied in industries of aviation, nuclear energy, petrochemical, metallurgy, machinery and technical area for temperature measurement of gas, liquid or surface between -200 ~ 1600°C.



    Specification:



    100% Brand New and High Quality
    Thermocouple Type:K Type (ungrounded)
    Operating Temperature: 0 – 1100 °C
    Probe Material: ceramic protection pipe
    Diameter :0.5mm
    Probe Length (L):500mm



    Type K
    Model WRN-130 230 330 430 530 191
    Circle diameter customized
    Temperature range 0~+1300C
    Tube material SS310/304/316,inconel600/ceramic
    Fixing screw/flange/none
    Cable

    stainless/silicone/





    0~1600C S Type Thermocouple Temperature Sensor Rtd With Ceramic Protection



    Application:



    Thermocouples are widely used in science and industry; applications include temperature measurement for kilns, gas turbine exhaust, diesel engines, and other industrial processes. Thermocouples are also used in homes, offices and businesses as the temperature sensors in thermostats, and also as flame sensors in safety devices for gas-powered major appliances.



    Payment Terms and Shipping:



    Packaging for High-temperature s type thermocouple

    1) plastic bag + carton for High-temperature s type thermocouple

    2) wooden box for High-temperature s type thermocouple



    Shipping for High-temperature s type thermocouple

    1) shipping by express (sample order) or by sea(bulk order)

    2) worldwide shipping service available
