Customizable MgO Insulation Immersion Tubular Heater For Solar Water Heater

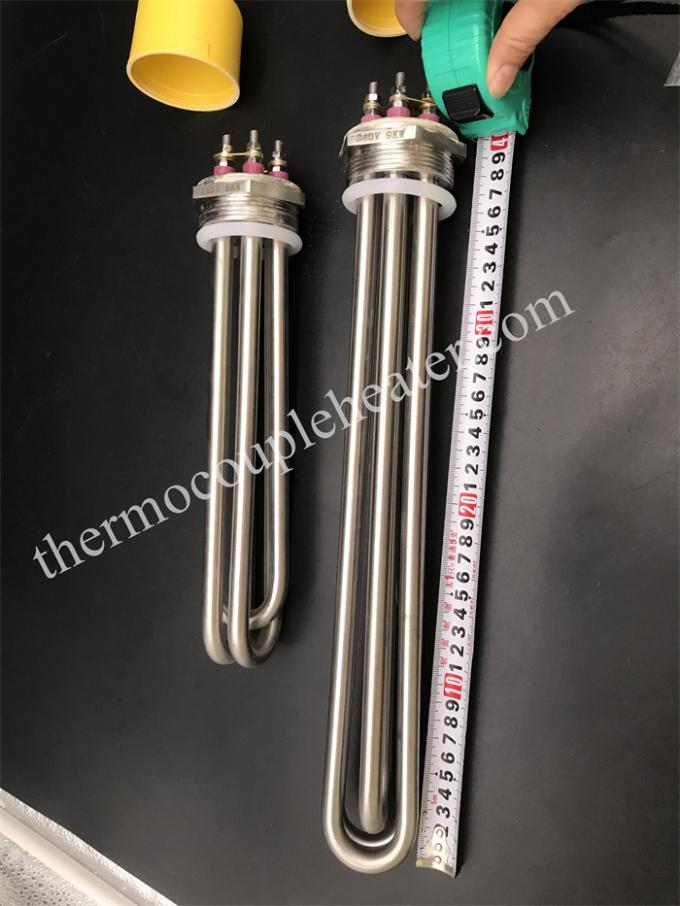

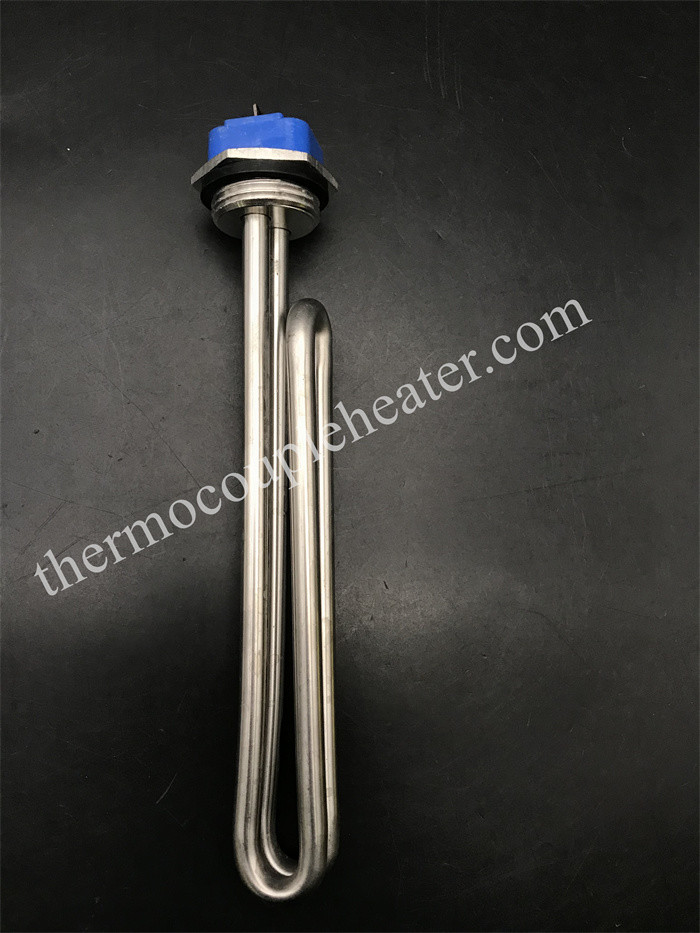

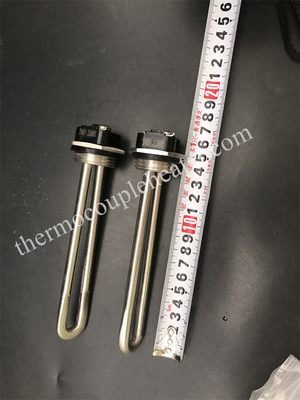

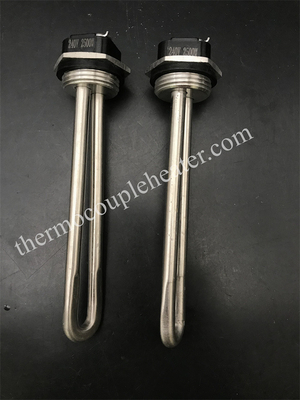

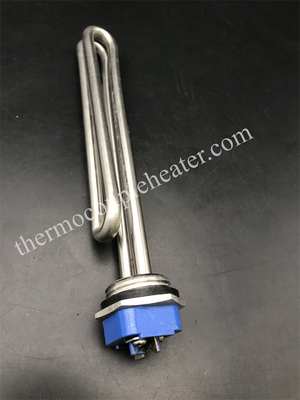

Large Image : Customizable MgO Insulation Immersion Tubular Heater For Solar Water Heater

Product Details:

Place of Origin:	China
Brand Name:	GME
Certification:	CE

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Packaging Details:	cartons， pallet
Delivery Time:	7~10 working days
Payment Terms:	T/T, Western Union, MoneyGram, L/C
Supply Ability:	100000 pcs per Month

Contact Now

Detailed Product Description

Power Source:	Electric	Dimension:	Customized
Voltage:	12-480V	Sheath Material:	Stainless Steel Or Nickel
Style:	K, J,	Lead Wire:	Copper, , Fiberglass Silicon
Insulation Material:	MgO	Heating Element:	Nichrome Resistance
Screw Threads:	Available	Flange Washer:	Available
Connection:	Screw Fitting
Highlight:	Immersion Tubular Heater , Solar Water Heater Tubular Heater , Solar Water Heater Immersion Tubular Heater

Immersion Tubular Heater For Solar Water Heater

Description:

waterproof electric heating element 2000w immersion water heater 220v 4500w is made of the electric heating elements and flanges. It's mainly used for heating large, medium and small containers, and the oil, water, viscous liquids, molten materials and gases in tanks. large, medium and small containers and storage tanks.

Specification parameter	Detail	Remark
Sheath Material	SUS304	Materials can be changed to be copper , sus321 ,sus316L ,incoloy804,incoloy800 as requested
Voltage/wattage	12V 100W200W600W	Voltage/Wattage/Tolerance can be customized as required,and Wattage tolerance(cold condition)+5%-10%
Tube Diameter	8.5mm	Tube diameter can be changed to 6.6mm,7mm,8.0mm,8.5mm,10mm or other as requested
Resistance Powder	Magnesium oxide	We can use other powder if requested
Resistance Wire	Ni80Cr20	Ocr25Al5 or other material if requested
Faston Terminal	Nickel plated iron	Material of terminal housing could be stainless iron,stainless steel if required
Leads	Stainless steel	Materials of terminal piece could be stainless iron,stainless steel if required
Screw Thread	1"or2"	Other thread can be made if required
Shape	as requirement

Application:

1. Injection moulding machine nozzle
2. Hot Runner Nozzles & Bushings
3. Packaging machineries
4. Hot runner Injection moulds.
5. Injection & Blow Moulding Machine Nozzles.
6. PET prefrom & Thin wall container Moulds
7. Hot runner Manifolds.

Customizable MgO Insulation Immersion Tubular Heater For Solar Water Heater 0
