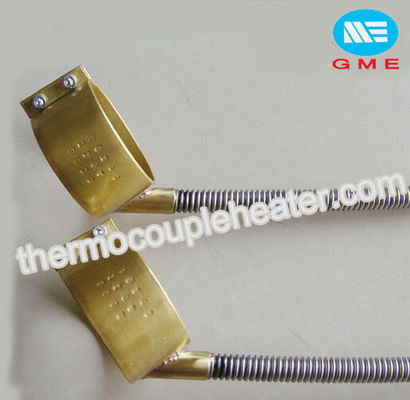

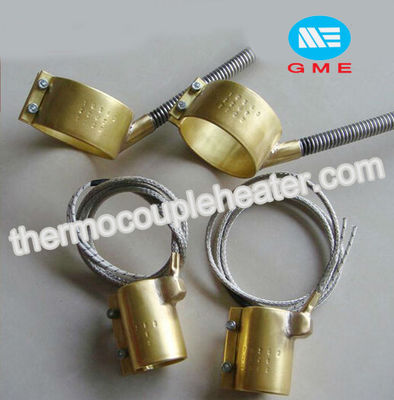

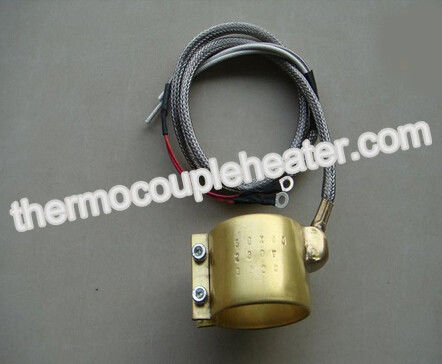

Heating Element Electric Band Coil Heaters Nozzle Band Heater For Injection Moulding Machine

Heating Element Electric Band Coil Heaters Nozzle Band Heater For Injection Moulding Machine

    • Heating Element Electric Band Coil Heaters Nozzle Band Heater For Injection Moulding Machine
    • Heating Element Electric Band Coil Heaters Nozzle Band Heater For Injection Moulding Machine
    • Heating Element Electric Band Coil Heaters Nozzle Band Heater For Injection Moulding Machine
  • Heating Element Electric Band Coil Heaters Nozzle Band Heater For Injection Moulding Machine

    Product Details:

    Place of Origin: China
    Brand Name: GME
    Certification: CE

    Payment & Shipping Terms:

    Minimum Order Quantity: 50pcs
    Packaging Details: cartons, pallet
    Delivery Time: 7~10 working days
    Payment Terms: T/T, Western Union, MoneyGram, L/C
    Supply Ability: 100000 pcs per Month
    Contact Now
    Detailed Product Description
    Power Source: Electric Dimension: Customized
    Voltage: 12-480V Sheath Material: Stainless Steel Or Nickel
    Cross Section: 2.2*4.2mm Style: Straight Or Coil
    Lead Wire: Copper, , Fiberglass Silicon Coiling Scheme: Tangential, Radial Exits, Axial
    High Light:

    electric resistance heater

    ,

    Electric Coil Heaters

    Heating element Electric Band heater Brass Nozzle Band Heater for injection moulding machine



    Description:



    1) Mica band heaters are widely used on operations involving heating of cylindrical surface and are

    manufactured in a full range of standard construction variations, physical dimensions, electrical rating,

    and a complete arrangement of screw terminals and lead terminations.



    2) These standard band heater variations and terminations do not represent the extent of our capabilities. GME ’s engineering staff, with many years experience in heat processing and temperature control  applications, can assist you in designing the right band heater for your specific applications.



    Specification:



    1, Brass tubular sheath (available in stainless steel for corrosive materia Copper Nozzle Band Heater ls such as PVC).

    2, Power standard density: max brass 5 W/cm²

    3,Tear-resistant connection of power cable.
    4,dia is available from 25mm to 150mm,and height is available from 25mm to 70mm.

    5,Thermocouple K or J is available.

    6, Material:

    Heating element: nickel chrome wire or FeCr ;
    Sheath material: stainless steel316/304/321/310/201;

    Insulation material: mica;



    SIZE(MM)
    WATT(W)
    SIZE
    WATT
    SIZE
    WATT
    SIZE
    WATT
    Ø25×25
    120
    Ø32×25
    115
    Ø38×25
    140
    Ø45×25
    160
    Ø25×30
    120
    Ø32×30
    140
    Ø38×30
    160
    Ø45×30
    185
    Ø25×32
    120
    Ø32×32
    150
    Ø38×32
    170
    Ø45×32
    200
    Ø25×35
    130
    Ø32×35
    160
    Ø38×35
    190
    Ø45×35
    225
    Ø25×38
    140
    Ø32×38
    175
    Ø38×38
    200
    Ø45×38
    240
    Ø25×40
    150
    Ø32×40
    180
    Ø38×40
    225
    Ø45×40
    250
    Ø25×45
    165
    Ø32×45
    200
    Ø38×45
    270
    Ø45×45
    275
    Ø25×50
    180
    Ø32×50
    230
    Ø38×50
    275
    Ø45×50
    325
    Ø30×25
    120
    Ø35×25
    130
    Ø40×25
    140
    Ø50×25
    180
    Ø30×30
    130
    Ø35×30
    150
    Ø40×30
    175
    Ø50×30
    220
    Ø30×32
    140
    Ø35×32
    160
    Ø40×32
    180
    Ø50×32
    235
    Ø30×35
    150
    Ø35×35
    175
    Ø40×35
    200
    Ø50×35
    250
    Ø30×38
    160
    Ø35×38
    190
    Ø40×38
    220
    Ø50×38
    280
    Ø30×40
    175
    Ø35×40
    200
    Ø40×40
    230
    Ø50×40
    300
    Ø30×45
    200
    Ø35×45
    225
    Ø40×45
    250
    Ø50×45
    325
    Ø30×50
    220
    Ø35×50
    250
    Ø40×50
    280
    Ø50×50
    375



    Application:



    They are used in many manufacturing processes such as the injection, extrusion and moulding processes or other specific application Brass Band Heater with Sealed Nozzle s such as tank heating and they are to be found in many industries such as the plastic processing industry, the car industry, chemical and food processing industries, etc;

    Heat-exchange Property Brass Band Heater



    Plastic injection molding machines Plastic extruders
    Oil reclamation equipments Food and candy extruders
    Drum heating Extrusion dies
    Holding tanks Blow molding machines
    Vending machines Barrels and heads
    Food service warming Autoclaves and sterilizers
    Metallurgical analyzers Fluidized Beds
    Hot runner molds Pulp and paper processing equipment
