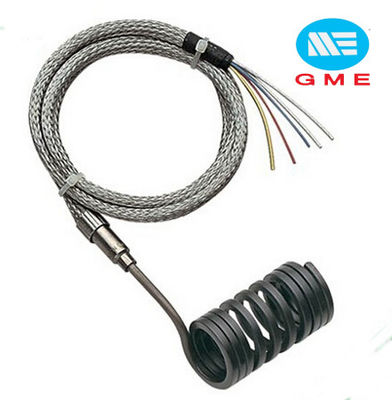

PVC Extruder Hot Runner Coil Heaters Spring Coil Heater With Metal Mesh Lead Wire

PVC Extruder Hot Runner Coil Heaters Spring Coil Heater With Metal Mesh Lead Wire

    • PVC Extruder Hot Runner Coil Heaters Spring Coil Heater With Metal Mesh Lead Wire
    • PVC Extruder Hot Runner Coil Heaters Spring Coil Heater With Metal Mesh Lead Wire
  • PVC Extruder Hot Runner Coil Heaters Spring Coil Heater With Metal Mesh Lead Wire

    Product Details:

    Place of Origin: China
    Brand Name: GME
    Certification: CE

    Payment & Shipping Terms:

    Minimum Order Quantity: 50pcs
    Packaging Details: cartons, pallet
    Delivery Time: 7~10 working days
    Payment Terms: T/T, Western Union, MoneyGram, L/C
    Supply Ability: 100000 pcs per Month
    Contact Now
    Detailed Product Description
    Power Source: Electric Dimension: Customized
    Voltage: 12-480V Sheath Material: Stainless Steel Or Nickel
    Cross Section: 2.2x4.2mm;3x3mm;4x4mm.. Style: Straight Or Coil
    Lead Wire: Copper, , Fiberglass Silicon Coiling Scheme: Tangential, Radial Exits, Axial
    Material: Brass And Stainless Steel
    High Light:

    electric resistance heater

    ,

    Electric Coil Heaters

    PVC extruder hot runner coil heater spring coil heater with metal mesh lead wire



    Description:



    1) Coil and cable heaters are made by placing a pair of tiny coils or two lines of straight resistance wire inside a very dense MgO medium. This core is then inserted into a stainless steel shell. These high-performance heating cells can acquire temperatures of up to 1500° F.



    2) A Coil Spring Heater in its unformed straight stage can have a maximum length of 6ft and its cross-section can be square or rectangular, while a cable heater can be 300ft long and is available in round cross sections. Thermocouple sensors could be installed internally at the tip or the middle of a heater.





    Specification:



    1.Square section area: 3*3mm,3.5*3.5mm,4*4mm

    2.Rectangular section area: 4*2mm, 4.2*2.2mm,3.2*1.8mm

    3.Watt:115W-2000W

    4.Voltage:110V-220V

    5.Thermocouple: type K. J can be attached in coil heater



    Sectional area 3X3,4.2X2.2,4X2,4X2.7,4X2.5 3.3 X 3.3 3.5 X 3.5 4 X 4,2.2X1.3
    Minimum ID 8mm
    Sheath Material SS304,SS310
    Insulation Material High Pure MgO
    Resistance Wire Cr20Ni80
    Maximum Sheath Temperature 700°C
    Die Electrical Strength 800V A/C
    Insulation > 5 M W
    Dimensional Tolerance Coil I.D + 0.1 to 0.2mm// Coil Length + 1mm
    Wattage Tolerance + 10% (+ 5% Available Upon Request)
    Voltage 12V~380V
    Wattage 70W~1000W
    Build-in thermocouple power without or with J/K thermocouple
    Sheath's length 500/1000/1200/1500/2000mm
    Available sheath nylon,metal braided,fiberglass ,silicone rubber, kevlar
    Sheath's color standard is black,other color is also available
    Connector without or with 5 pin xlr,4 pin min xlr connector
    Connector' color

    silver or fully black

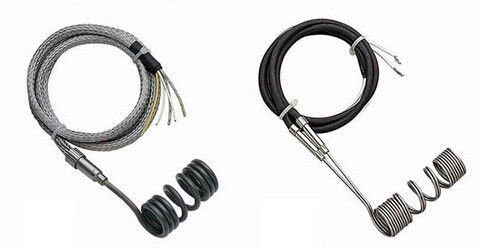

    PVC Extruder Hot Runner Coil Heaters Spring Coil Heater With Metal Mesh Lead Wire



    Application:

    • Hot runner nozzles
    • Cutting & sealing bars
    • Medical equipment
    • Rod, pipe & tube heating
    • Heat tracing
    • Semiconductor manufacturing
