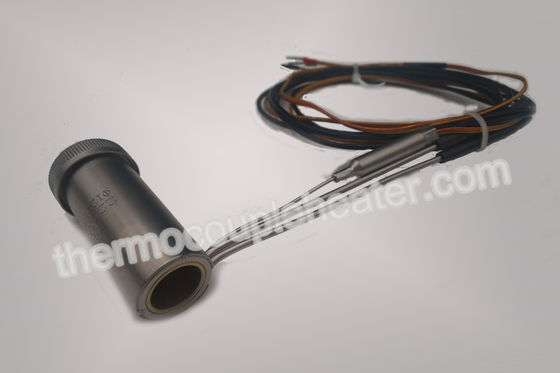

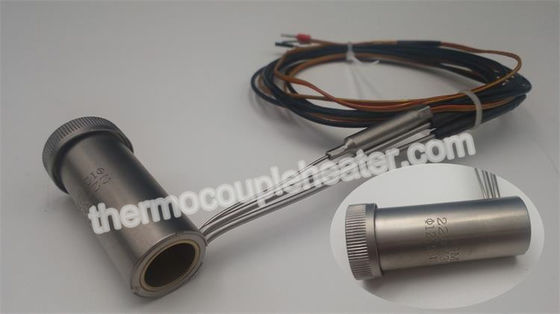

Industry Electric Hot Runner Injection Mold Heater High Temperature

Industry Electric Hot Runner Injection Mold Heater High Temperature

    • Industry Electric Hot Runner Injection Mold Heater High Temperature
    • Industry Electric Hot Runner Injection Mold Heater High Temperature
  • Industry Electric Hot Runner Injection Mold Heater High Temperature

    Product Details:

    Place of Origin: China
    Brand Name: GME
    Certification: CE

    Payment & Shipping Terms:

    Minimum Order Quantity: 50pcs
    Packaging Details: cartons, pallet
    Delivery Time: 7~10 working days
    Payment Terms: T/T, Western Union, MoneyGram, L/C
    Supply Ability: 100000 pcs per Month
    Contact Now
    Detailed Product Description
    Power Source: Electric Dimension: Customized
    Voltage: 12-480V Sheath Material: Stainless Steel Or Nickel
    Cross Section: 2.2x4.2mm;3x3mm;4x4mm.. Style: Straight Or Coil
    Lead Wire: Copper, , Fiberglass Silicon Coiling Scheme: Tangential, Radial Exits, Axial
    Material: Brass And Stainless Steel
    High Light:

    electric resistance heater

    ,

    Electric Coil Heaters



    Industry Electric Hot Runner Injection Mold Heater High Temperature



    Description:



    1) Hot runner heater is an advance concept of thermal engineering which has a construction similar to high watt density cartridge heaters.

    2) These heaters are also known as high performance tubular heaters or cable heaters. The basic construction of these heaters consist of compacted MgO, high temperature resistance wire and Chrome Nickel Steel tube.

    3) These heaters can be constructed with or without built in thermocouples. They are usually installed where space available for heating is limited and are widely used on hot runner nozzles, and manifolds, die cast nozzles, packaging machines etc.
    COIL HEATER - APPLICATIONS:
    1.Hot Runner & Bushings

    2.Tube Extrusion

    3.Pipe Forming



    Specification:



    Standard sizes available with various cross section



    Various Watt Density option available



    Designed for even heat profile



    Precision fit on Hot Runner Nozzles



    Highly Non-corrosive



    Choice of Terminal Exits



    Advanced Thermal Engineering



    Available with in built Thermocouple



    Features:



    1.voltage and power according to your requirement.



    2. various sizes of cross section, including 4.2*2.2mm, 4*2mm, 3.2*1.8mm, 4*4mm, 3.5*3.5mm, 3*3mm and other specificaitons



    3.high watt density--25w/sq.cm, low watt density--5w/sq.cm, Temperature:650 degree



    4. Material: stainless steel



    5.can build in thermocouple according to your requirement.



    Name of product Hot runner heater
    Inner Diameter of coiled heater 8-38mm( + 0.05mm)
    Coil style Length 40-200mm (+ 0.5mm)
    staright style length 200-3000mm (+ 0.5mm)
    Cross-section

    Round Dia.3mm;3.3mm;3.5mm

    Square: 3x3mm;3.3x3.3mm,4x4mm,

    Rectangular:4.2x2.2mm,4x2mm;1.3x2.2mm

    Tube Material SUS304/SUS/310S/Incoloy800
    Tube color sliver or annealed black
    Insulation High pure Mgo
    Inner heating element NiCr8020
    Voltage 12v;24v;110v;220v;240v;380v
    Wattage 200-3000w( 6.5W/CM2 ) + 5% tolerance
    Max. Temperature: 650°C
    Built-in thermocouple with or without J /K TC(Available)
    Delivery Time

    3-5 days(10-500pcs)

    7 days(more than 500pcs)





    Industry Electric Hot Runner Injection Mold Heater High Temperature



    Application:



    1. Caustic Cyanide used in gold processing



    2.Hot water storage



    3.Asphalt Wax



    4.Caustic solutions Detergent



    5.Sterilizing equipment



    6.Heating oils



    7.Plastic processing&packaging machinery



    8.Ovens&dryers



    9.Dies&Tools



    10.Water& Oil heating appliances



    11.Vending machines



    12.Kitchen equipments



    13.Medical equipments





    Payment Terms and Shipping:



    7 working days if uugent can be negotiable

    Express: UPS, FEDEX, DHL, TNT, EMS, ect

    Air shipping: Please choose your convenient shipping method according your detail requirement.

    Sea shipping: large quntity order

    Normally, it will take around 2--5days from China to destination country.
