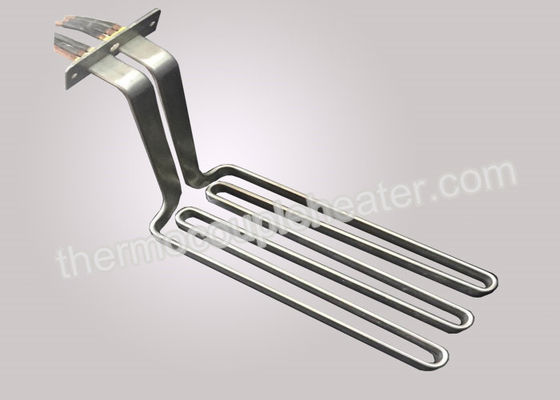

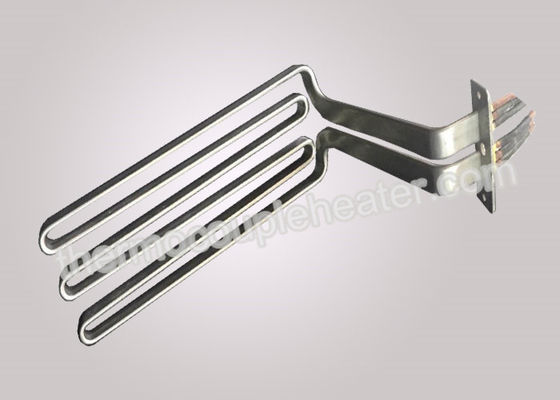

Various Shaped Oven Bake Heating Tubular Electric Heaters High Pressure Resistance

Various Shaped Oven Bake Heating Tubular Electric Heaters High Pressure Resistance

    • Various Shaped Oven Bake Heating Tubular Electric Heaters High Pressure Resistance
    • Various Shaped Oven Bake Heating Tubular Electric Heaters High Pressure Resistance
  • Various Shaped Oven Bake Heating Tubular Electric Heaters High Pressure Resistance

    Product Details:

    Place of Origin: China
    Brand Name: GME
    Certification: CE

    Payment & Shipping Terms:

    Minimum Order Quantity: 50pcs
    Packaging Details: cartons, pallet
    Delivery Time: 7~10 working days
    Payment Terms: T/T, Western Union, MoneyGram, L/C
    Supply Ability: 100000 pcs per Month
    Contact Now
    Detailed Product Description
    Power Source: Electric Dimension: Customized
    Voltage: 12-380v Sheath Material: Stainless Steel Or Nickel
    Power: 1w-10000w Style: Straight Or Coil
    Material: Ss304 Or Requirement Length: Up To Your Order





    Various Shaped Oven Bake Heating Tubular Electric Heaters High Pressure Resistance





    1) Resistance For Electric Oven are the most versatile and widely used source of electric heat for industrial, commercial and scientific applications. They can be designed in a wide range of electrical ratings, diameters, lengths, terminations, and sheath materials.



    2) Also screw plug immersion heaters, flanged immersion heaters, circulation heaters, and high temperature process air heaters are available.



    3) GME is available to assist with the design and development of special heaters for particular requirements.



    4) Electric Tubular Heater is a tube-shaped, heavy-duty, industrial joule heating element (electrical resistance) used in the process heating industry, usually custom manufactured to a specific watt density, based on its intended application. Highly compacted they reach a surface watt density of up to 30 w/cm².


    Specification:



    Hi-pot test: 1500V/2mA/1S
    Insulation resistance(cold air addition): 100MΩ
    Leakage current to be 0. 5mA max While energized at rated voltage
    Power tolerance(standard): +5%/-10%
    Heating resistance wire: 0Cr25Al5,Cr20Ni80 or as custom'es requirement
    Hydrostatic test: 8KG(Air pressure without penetration)
    Flange: 1 1/4" brass flange with/without Mg anode holding M6/M8
    Thermostat: With 16A 250V. L=275mm. Single safety thermostat.
    Temperature Range: 20-80℃



    Resistance For Electric Oven Standard Sheath Materials



    The following are the most common tubular element sheath materials. For other materials consult GME



    Material Material Max. Temp. °C Application
    Copper 150 Water, non-corrosive liquids
    Steel 400 Oil immersion
    Stainless Steel 304 650 Water,Corrosive liquids, food processing
    Stainless Steel 316 650 Corrosive liquids,
    Stainless Steel 321 650 intergranular corrosion situation
    Incoloy 800 800 Water ,Corrosive liquids, air, clamp on



    PHYSICAL AND ELECTRICAL SPECIFICATIONS

    Sheath Dia. ±0.15mm 6.4 8 10 12 14 16 18 20 25
    Sheath Length Max. (mm) 6000 6000 6500 6500 7000 7000 7000 7000 7000
    Maximum Voltage 250 277 480 550 550 550 550 550 550
    Wattage Tolerance +5% -10%
    Resistance Tolerance

    +10% -5%





    Various Shaped Oven Bake Heating Tubular Electric Heaters High Pressure Resistance

    Various Shaped Oven Bake Heating Tubular Electric Heaters High Pressure Resistance


    Application:

    Plastic Processing machinery.
    Water and Oil Heating Appliances.
    Packaging machineries
    Vending Machines.
    Dies and Tools.
    Heating Chemical Solutions.
    Ovens & Dryers
    Kitchen equipments
    Medical equipments
    Used in many other applications.


    Packing and Shipping:

    Various Shaped Oven Bake Heating Tubular Electric Heaters High Pressure Resistance

    Various Shaped Oven Bake Heating Tubular Electric Heaters High Pressure Resistance
