Industria Thermocouple Components / Type K Miniature Male Connector With Metal Wire Holder

Product Details:

Place of Origin:	China
Brand Name:	GME
Certification:	CE & ISO
Model Number:	Type K Miniature Male Connector With Metal Wire Holder

Payment & Shipping Terms:

Minimum Order Quantity:	100 pcs
Price:	Negotiation

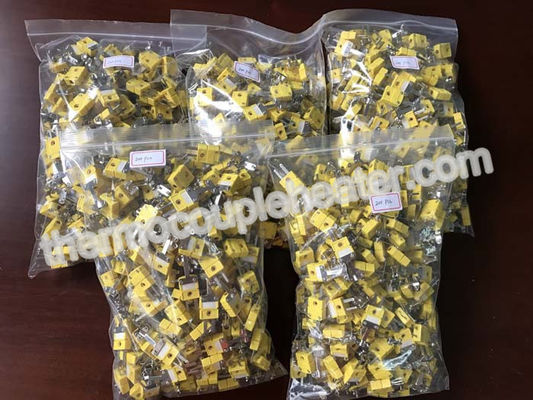

Packaging Details:	Exported Case Packing
Delivery Time:	10-15 working days after received your payment
Payment Terms:	T/T, Western Union, D/P, L/C, Paypal
Supply Ability:	25,000pcs per month

Contact Now

All Products

Coil Heaters (328)

Thermocouple RTD (294)

Mineral Insulated Thermocouple Cable (32)

Thermocouple Compensating Cable (62)

Cartridge Heaters (143)

Cast Heater (36)

Tubular Heater (87)

High Temperature Cable (28)

Thermocouple Connection Head (59)

Hot Runner Temperature Controller (22)

Thermocouple Thermowell (26)

Sacrificial Anodes (10)

Thermocouple Components (162)

Mica Insulated Band Heaters (27)

Ceramic Heaters (4)

Electric Heater Components (31)

Heater Making Machine (13)

High Temperature Resistance Steatite Ceramic Insulators For Band Heater

Detailed Product Description

Product Name:	Type K Miniature Male Connector With Metal Wire Holder	Temperature Range Range:	0--600 Centigrade
Materials:	Thermoplastic	Types:	K, S, N, J, T, E
Usage:	Industrial, Thermocouple Accessories	Material:	Black
Conductor Material::	Chromel, Alume	Application:	Industria
High Light:	thermocouple accessories , thermocouple assemblies

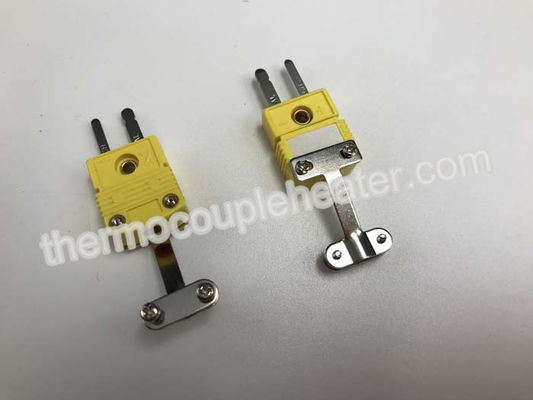

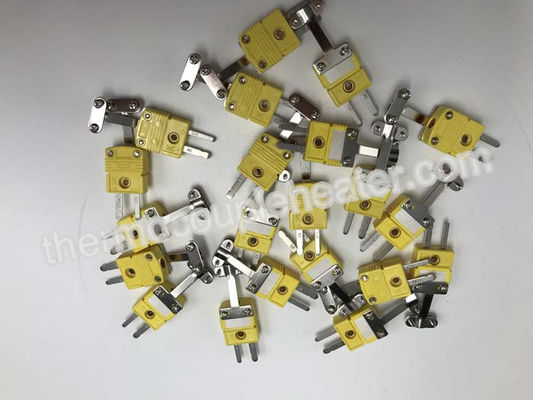

Thermocouple Components Type K Miniature Male Connector With Metal Wire Holder

1. Description

Thermocouple connectors are mini size flat 2 pin TC connectors designed to connect temperature sensor instrumentation and a temperature controller or process control HMI automation panel. Male 2 pole TC plugs and matched female 2 prong TC jack pairs are stock items.

Connector is widely used in thermocouple and RTD circuits ,best solution for quick and good contact. Different models are on offer for different applications.

2. Characteristics

Well designed body ensure good insulation inside, and well designed pins construct ensure good contact.
Available in all color code standard. ANSI color code standard will be the one if the customer do not have special requirements.
Thermoplastic body and ceramic material body are both available.
Original thermocouple alloy material pins, and spring loaded inserts.
Pins are polarized
Solid pins and hollow pins are both available, offer good contact and competitive price.
Maximum ambient temperature for the thermoplastic body continuous usage is 200 degrees celsius.

3. Thermocouple Connector Parameter.

Wire size

Accepts wires from 0.2 mm to 2.0 mm.
Maximum cable diameter 8.0 mm.

Max. Temperature

200 Deg. C for thermoplastic body
650 Deg. C for ceramic body

Industria Thermocouple Components / Type K Miniature Male Connector With Metal Wire Holder

Mark	Material	Color
K	Nickel chrome - nickel silicon	yellow (ANSI), green (IEC)
J	Iron-copper nickel	Black
N	Silicon nickel chrome - nickel silicon magnesium	Orange
T	Copper - copper nickel	blue
E	Copper nickel- chrome nickel	purple
R/S	Copper - copper nickel	green

4. Thermocouple Connector Application

This thermocouple connector is widely used in the thermocouple and RTD circuits and instrument machine.

5. Thermocouple Connector Connector

Good Quality :We have strict quality control system .Good reputation in the foreigner market.
Fast & Cheap Delivery: We have big discount from forwarder (Long Contract).
Low MOQ: It can meet your promotional business very well.
OEM Accepted : We can produce any your design as long as you provide us the drawing.
Good Service : We treat clients as friend.
