Mineral insulated thermocouples Resistance Temperature Detector for hot runner system

Mineral insulated thermocouples Resistance Temperature Detector for hot runner system

    • Mineral insulated thermocouples Resistance Temperature Detector  for hot runner system
    • Mineral insulated thermocouples Resistance Temperature Detector  for hot runner system
  • Mineral insulated thermocouples Resistance Temperature Detector  for hot runner system

    Product Details:

    Place of Origin: China
    Brand Name: GME
    Certification: CE

    Payment & Shipping Terms:

    Minimum Order Quantity: 50pcs
    Packaging Details: cartons, pallet
    Delivery Time: 7~10 working days
    Payment Terms: T/T, Western Union, MoneyGram, L/C
    Supply Ability: 100000 pcs per Month
    Contact Now
    Detailed Product Description
    Power Source: Electric Temperature Range: -200~650℃
    Voltage: 12-480V Probe Material: Stainless Steel Or Nickel
    Style: K, J, Pairs Quantity Of Element: Simplex/duplex
    Heating Element: Nichrome Resistance Mounting: Thread/flange/none
    Function: Temperature Sensor Feature: Economical
    Types Of Terminal Box: Anti-spray/water-proof
    High Light:

    temperature sensor rtd

    ,

    resistance temperature detecto

    Mineral insulated k/ J type thermocouples temperature probe for hot runner system

    Description:

    1) The appearances of sheath thermocouples are greatly differential due to their different use requirements. But their basic structures are roughly the same. They are usually composed to the main components such as armoured thermocouple elements, mounted fixing devices, connection boxes and so on .

    2) Sheath thermocouple element: it is a solid substance combined by metal sleeves, insulants (commonly the magnesia powder) and thermocouple wires. According to the structural form of the measured terminal, It may be divided into unground type , ground type, terminal exposed type , separable unground type for consumers’ choice. If not defined by the consumers , we may offer the unground type.

    3) The connection methods: its structure may be divided into porcelain patch board, easy type, co-external diam. Protection cap type, anti-splash connecting box type, water-proof terminal block type, explosion isolation junction block type, socket type, spring- load type, handle type, with compensation conductor type etc.

    Specification:

    1.mineral insulated cable material :310SS
    2.mineral insulated cable size: Dia 3*Length 250mm
    3.wire:1m metal wire
    4.probe feather:flexible / insulated can up to 1100C

    5.accuracy:1.5% or 0.4%t
    6.certification:ISO9001/CE



    Thermocouple catelory Product model

    Graduation
    mark

    Thermometric
    scope

    Protection
    tubings

    Specification
    Total length

    Single Nickel chromium
    Nisiloy

    WRKK-_01
    WRKK-_91

    Ungroud





    K




    0~800°C
    0~1100°C

    304
    321
    310S
    GH3030
    INCONEL600



    Slef-determined by customers

    WRKK-_02
    WRKK-_92

    Ground

    Double Nickel chromium
    Nisiloy

    WEKK2-_01
    WEKK2-_91

    Ungroud

    WEKK2-_02
    WEKK2-_92

    Ground

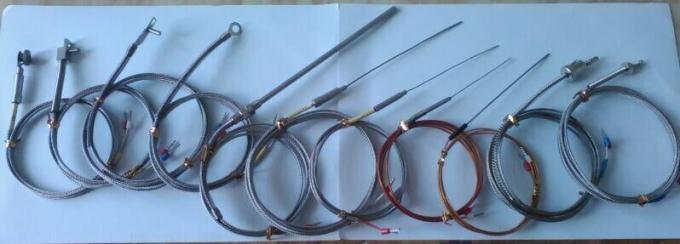

    Mineral insulated thermocouples Resistance Temperature Detector  for hot runner system

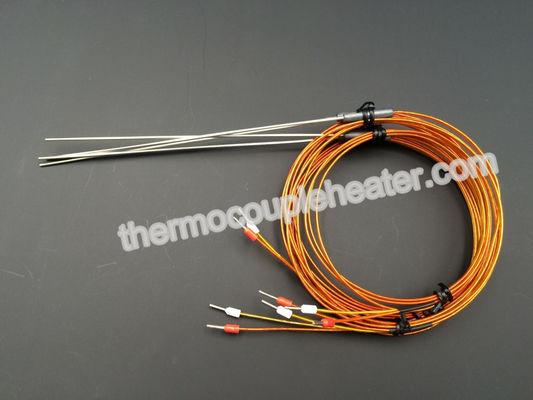

    Mineral insulated thermocouples Resistance Temperature Detector  for hot runner system
    Application:

    This series assembly thermocouple can be used for
    the temperature measuring and control in the erumpent processing of chemical fiber,
    rubber plastic,
    food industry,
    boiler and other industries.

    Payment Terms and Shipping:

    1.Loading Port: Shanghai China
    2. Samples Leading Time: 3-7 working days
    3. Delivery Time: Within 7-15 days after payment
    4.Payment: T/T, Western Union, Paypal



    Mineral insulated thermocouples Resistance Temperature Detector  for hot runner system
