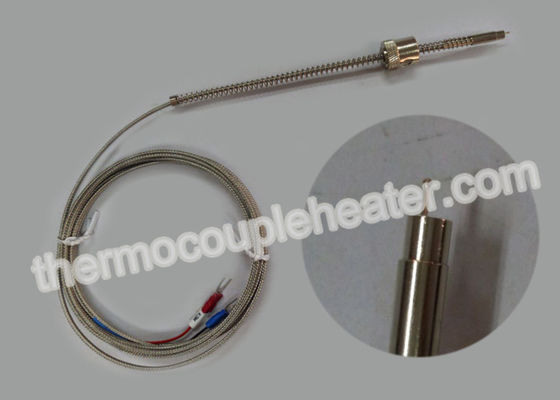

Customized K type Thermocouple RTD with stainless steel lead wire , 12-480V

Customized K type Thermocouple RTD with stainless steel lead wire , 12-480V

    • Customized K type Thermocouple RTD with stainless steel lead wire , 12-480V
    • Customized K type Thermocouple RTD with stainless steel lead wire , 12-480V
  • Customized K type Thermocouple RTD with stainless steel lead wire , 12-480V

    Product Details:

    Place of Origin: China
    Brand Name: GME
    Certification: CE

    Payment & Shipping Terms:

    Minimum Order Quantity: 50pcs
    Packaging Details: cartons, pallet
    Delivery Time: 7~10 working days
    Payment Terms: T/T, Western Union, MoneyGram, L/C
    Supply Ability: 100000 pcs per Month
    Contact Now
    Detailed Product Description
    Power Source: Electric Temperature Range: -200~650℃
    Voltage: 12-480V Probe Material: Stainless Steel Or Nickel
    Style: K, J, Pairs Quantity Of Element: Simplex/duplex
    Heating Element: Nichrome Resistance Mounting: Thread/flange/none
    Function: Temperature Sensor Feature: Economical
    Types Of Terminal Box: Anti-spray/water-proof
    High Light:

    resistance temperature detecto

    ,

    temperature sensor rtd pt100

    Customized K type thermocouple with stainless steel lead wire for injection mould

    Description:



    1) Thermocouples are manufactured in many different configurations for multitude of applications. Diameters, lengths, sheath material, lead lengths and sensor material are just a few of the variables that go into determining the style of thermocouple when manufactured. The main determining factors of what type thermocouple needs to be used in a application is temperature, environment, response time and accuracy. The junction of the thermocouple can be grounded, ungrounded or exposed.



    2) Thermocouples are easy to use, Thermocouples are the most popular temperature sensors. They are cheap, interchangeable, have standard connectors and can measure a wide range of temperatures.



    3) Thermocouple type:Assembly thermocouple, Armored thermocouple, bayonet spring fixed thermocouple,high temperature thermocouple, platinum and rhodium thermocouple,anti-corrosion thermocouple, wear-resistant thermocouple, high pressure thermocouple, special thermocouple, thermocouple, hand-held thermocouple, miniature thermocouple, noble metal thermocouple, rapid thermocouple, tungsten rhenium thermocouple, single core armored thermocouple etc.





    Specification:



    Please identify the following items when ordering:
    1. Shutter support Specification
    2. Single-ouch or double-ouch
    3. Lead Wire Length
    4. Lead Wire Material
    5. Protection material
    6. Protection length
    7. Stainless steel armor tube material
    8. Stainless steel armor tube length
    9. Spring material, ID, OD and length




    Temperature material Type Graduation Spec. of protection tube(mm) Use temperature°C
    Total Lenght Length in fluid external diameter of ceramic tube Material of protection tube
    PtRh10-Pt WRP S

    300

    350

    400

    450

    550

    650

    900

    1150

    1250

    150

    200

    250

    300

    400

    500

    750

    1000

    1100

    φ16

    φ25

    High Al content tube 0-1300
    PtRh30-Ptrh6 WRR B Corundum tube 0-1600
    PtRh13-pT WRQ R

    φ16

    φ20

    High Al content tube 0-1200
    Mini PtRh10-Pt WRP-100 S 252 252 φ7 High Al content tube

    0-1200

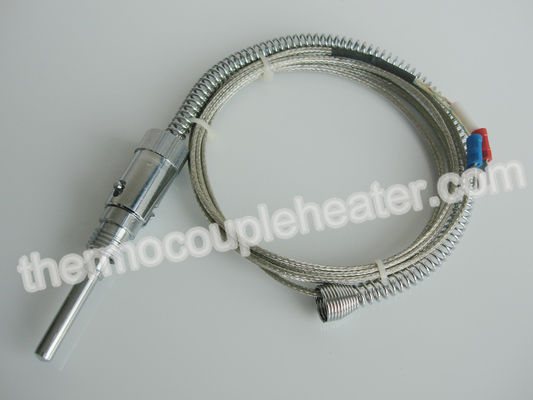

    Customized K type Thermocouple RTD with stainless steel lead wire , 12-480V





    Application:

    1. Hor runner system
    2. Plastic Industry
    3. Packaging Machinery
    4. Medical equipment
    5. Casting Process
    6. Other electric heating industry

    Advantages:

    1. Specializes in manufacturing heater,thermocouple and equipment more than 15 years as well as export the relevant component.
    2. CE-marked products conform to PICC regulations
    3. ISO 9001:2008-certified factory quipped with heater lines
    4. Up to 200000 units turned out each month
    5. Custom orders welcome
    6. R&D team updates every month with 10 new items
    7. Sample take up to 3 days,but can be finished with one day in ugent cases
    8. GME heater can replace Hotset,GC-Heat,Kit,Euroheat,ROTFIL ect
    9. USA high purityMgo,Germany Nici8020 alloy wire,Germany fiberglass protection
