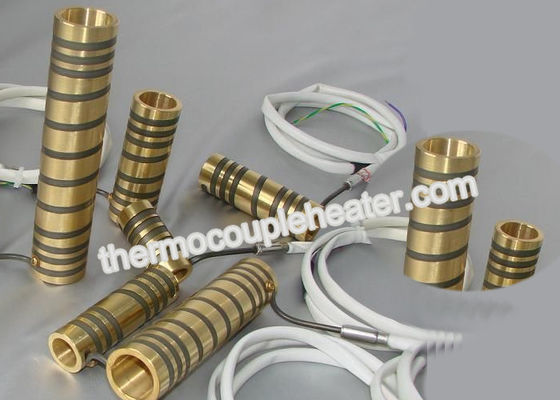

Customized Electric tube Heaters / Hot runner brass pipe heater , CE approved

Customized Electric tube Heaters / Hot runner brass pipe heater , CE approved

    • Customized Electric tube Heaters / Hot runner brass pipe heater , CE approved
    • Customized Electric tube Heaters / Hot runner brass pipe heater , CE approved
  • Customized Electric tube Heaters / Hot runner brass pipe heater , CE approved

    Product Details:

    Place of Origin: China
    Brand Name: GME
    Certification: CE

    Payment & Shipping Terms:

    Minimum Order Quantity: 50pcs
    Packaging Details: cartons, pallet
    Delivery Time: 7~10 working days
    Payment Terms: T/T, Western Union, MoneyGram, L/C
    Supply Ability: 100000 pcs per Month
    Contact Now
    Detailed Product Description
    Power Source: Electric Dimension: Customized
    Voltage: 12-480V Sheath Material: Stainless Steel Or Nickel
    Cross Section: 2.2*4.2mm Style: Straight Or Coil
    Lead Wire: Copper, , Fiberglass Silicon Coiling Scheme: Tangential, Radial Exits, Axial
    High Light:

    electric resistance heater

    ,

    Electric Coil Heaters

    Hot runner brass pipe heater nozzle heater pressed with coil heater thermocouple



    Description:



    1) Brass Nozzle Heaters are utilized in applications across various industries, and extensively in the plastics industry which are installed on cylinder forms such as barrels, pipes and nozzles of injection molding or extrusion machines.



    2) Brass Nozzle Heaters are capable of sheath temperatures up to 1200°F (650°C) with stainless steel sheath, or 900°F (480°C) with aluminized steel sheath. A variety of heater constructions are available, with many termination and clamping options.





    Specification:



    STANDARD CONFIGURATION



    MATERIAL: 304 and brass



    UNHEATED LENGTH :45mm



    POWDER LINES ,GROUNDING WIRES LENGTH :1000mm



    PROFECT WITH SLEEVE : 1.SILICON GLASS FIBER (WHITE ,BLACK,ORANGE ,GREEN AND OTHER )



    Thermocouple :with thermocuple channel and themocouple hole

    SURFACE TREATMENT : grit blast



    SECTION :

    SECTION :2.2*4.2mm,2*4mm,3.3*3.3mm,3*3mm,2.4*1.6mm,2.1*1.5mm,



    3.5*3.5mm,4.5*2.7mm,4*4mm,5*5mm (square)



    Φ1.8mm Φ2mm Φ2.5mm (round)



    Inner Diameter Φ15-35mm X section 2.5*4/3*3
    Watts 250W-1100W Height 50-220mm
    Voltage 220V/230V/240V Standard cold length 30mm
    TC type K J E or no Cable insulation Hi-temp Fiber-glass insulation
    Standard cable length 1000mm
    CE conformity:YES OEM service:YES Customization:YES



    In millimeter(unless specified):mm Wattage:W 2.5*4/3*3
    Inner diameter Outer diameter Min watts Max watts Min height Max height
    2.5*4 3*3
    15 23 24 250 400 50 100
    16 24 25 250 400 50 100
    18 26 27 300 550 60 120
    19 27 28 300 550 50 120
    20 28 29 450 550 60 120
    21 29 30 450 550 60 150
    22 30 31 450 700 80 150
    23 31 32 500 700 80 150
    25 33 34 500 700 80 150
    27 35 36 500 900 80 220
    28 36 37 550 900 80 220
    30 38 39 550 1000 80 220
    32 40 41 600 1000 80 220
    33 41 42 600 1100 100 220
    35 43 44 700 1100 100

    220

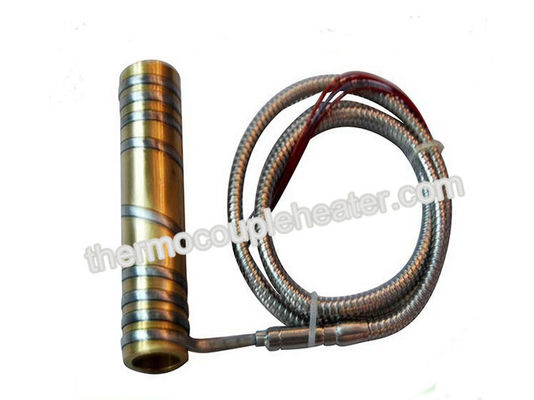

    Customized Electric tube Heaters / Hot runner brass pipe heater , CE approved



    Application:



    Caustic Cyanide used in gold processing

    Hot water storage

    Asphalt Wax

    Caustic solutions Detergent

    Sterilizing equipment

    Heating oils

    Plastic processing&packaging machinery

    Ovens&dryers

    Dies&Tools

    Water& Oil heating appliances

    Vending machines

    Kitchen equipments

    Medical equipments



    Features:



    1) voltage and power according to your requirement.

    2) Material: stainless steel and brass

    3) can build in thermocouple according to your requirement.and other specificaitons
