High Purity MgO Inconel 600 Simplex Mineral Insulated Metal Sheathed Cable J Type

High Purity MgO Inconel 600 Simplex Mineral Insulated Metal Sheathed Cable J Type

    • High Purity MgO Inconel 600 Simplex Mineral Insulated Metal Sheathed Cable J Type
    • High Purity MgO Inconel 600 Simplex Mineral Insulated Metal Sheathed Cable J Type
  • High Purity MgO Inconel 600 Simplex Mineral Insulated Metal Sheathed Cable J Type

    Product Details:

    Place of Origin: Wenzhou, China
    Brand Name: GME
    Certification: ISO9001

    Payment & Shipping Terms:

    Minimum Order Quantity: 50m
    Packaging Details: Packing for sea or air shipping
    Delivery Time: 5-7 working days
    Payment Terms: T/T, Western Union
    Supply Ability: 10000 Meter/Meters per Month
    Contact Now
    Detailed Product Description
    Insulation Material: 99.6% High Purity MgO Type: All Types Available
    Sheath Material: SS304, SS316, SS310 And So On Core Number: 2, 4 Or 6 Cores
    Dia: 0.5mm To 12.7mmmperature Class: 1
    High Light:

    mineral insulated heating cable

    ,

    mineral insulated power cable

    1. Product description

    Name: J type Inconel600 simplex mineral insulated thermocouple cable Usage: Industrial Theory: Temperature sensor
    Insulation material: 99.6% high purity MgO Sheath material: SS304, SS316, SS310 and so on Dia: 0.5mm to 12.7mm
    Type: all types available Core number: 2, 4 or 6 cores Class: 1
    Sample: available

    J type Inconel600 simplex mineral insulated thermocouple cable



    2. Feature



    1). Conductor material: NiCr-NiSi, NiCrSi-NiSi, NiCr-Konstantan, Fe-Konstantan, Cu-Konstantan
    2). Core number: 2, 4 or 6 cores
    3). Sheath material: SS321(SS304), SS316, SS310, INCL600
    4). Insulator: 99.6% high purity MgO
    5). Dia(mm): from 0.5mm to 12.7mm



    Type and sheath table



    Product Name Code Type Sheath material Outer dia.(mm) Temperature
    Ni Cr - Ni Si KK K SS304 0.5-1.0 400
    SS321 1.5-3.2 600
    SS316 4.0-8.0 800
      0.5-1.0 500
    SS310 1.5-3.2 800
    INCL600 4.0-6.4 900
      8.0-12.7 1000
    Ni Cr Si - Ni Si NK N SS304 0.5-1.0 400
    SS321 1.5-3.2 600
    SS316 4.0-8.0 800
      0.5-1.0 500
    SS310 1.5-3.2 800
    INCL600 4.0-6.4 900
      8.0-12.7 1000
    Ni Cr -Konstantan EK E SS304 0.5-1.0 400
    SS321 1.5-3.2 500
    SS316 4.0-8.0 800
    Fe - Konstantan JK J SS304 1.0 300
    SS321 1.5-3.2 500
    SS316 4.0-8.0 800
    Cu - Konstantan TK T SS304 1.0 -200-100
    SS321 1.5-3.2 100-200
    SS316 4.0-8.0 100-350



    Accuracy table



    nicrobell mi cable



    Name Type Class of Accuracy
    I II III
    Tolerance Temperature Tolerance Temperature Tolerance Temperature
    Ni Cr - Ni Si K 1.5 or 0.4%t -40~1000 2.5 or 0.75%t -40~1000 2.5 or 0.75%t -200~40
    Ni Cr Si- Ni Si N -40~1000 -40~1000 -200~40
    Ni Cr - Konstantan E -40~800 -40~800 -200~40
    Fe - Konatantan J -40~750 -40~750 ---
    Cu - Konstantan T 1.5 or 0.4%t -40~350 1 or 0.75%t -40~350 1 or 0.75%t -200~40
    Pt Rh 10 - Pt S 1 or 1+(t-1100)x0.003 0~1600 1.5 or 0.25%t 0~1600 --- ---
    Pt Rh 13 - Pt R 0~1600 0~1600
    Pt Rh 13 - Pt Rh 6 B --- --- 600~1700 4 or 1.5%t 600~1700

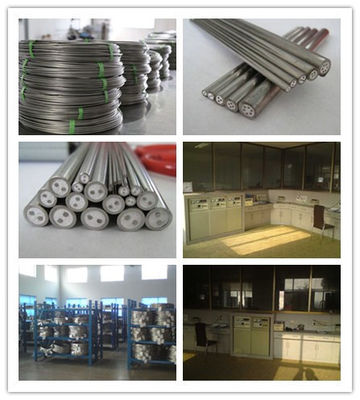

    High Purity MgO Inconel 600 Simplex Mineral Insulated Metal Sheathed Cable J Type

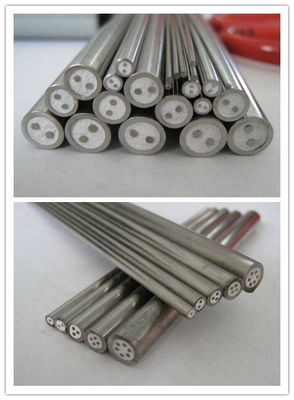

    High Purity MgO Inconel 600 Simplex Mineral Insulated Metal Sheathed Cable J Type

    High Purity MgO Inconel 600 Simplex Mineral Insulated Metal Sheathed Cable J Type



    Shipment

    International express for sample or small orders. Air transportation and sea transportation for big orders.
