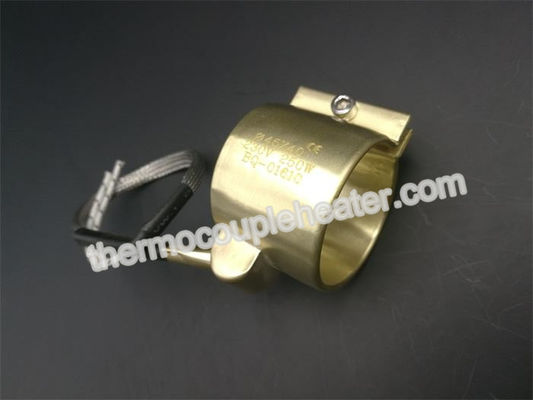

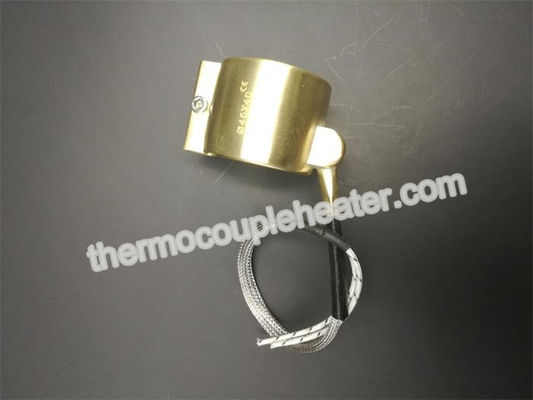

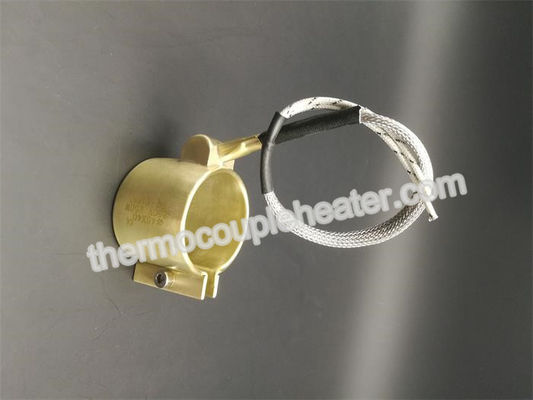

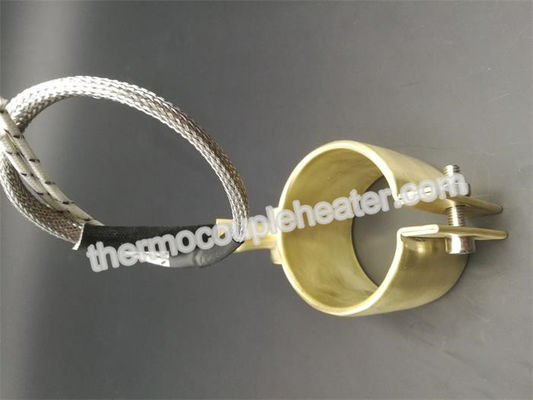

Customized Hot Runner Brass Nozzle Electric Resistance Heater Pressed With Thermocouple

Customized Hot Runner Brass Nozzle Electric Resistance Heater Pressed With Thermocouple

    • Customized Hot Runner Brass Nozzle Electric Resistance Heater Pressed With Thermocouple
    • Customized Hot Runner Brass Nozzle Electric Resistance Heater Pressed With Thermocouple
    • Customized Hot Runner Brass Nozzle Electric Resistance Heater Pressed With Thermocouple
    • Customized Hot Runner Brass Nozzle Electric Resistance Heater Pressed With Thermocouple
  • Customized Hot Runner Brass Nozzle Electric Resistance Heater Pressed With Thermocouple

    Product Details:

    Place of Origin: China
    Brand Name: GME
    Certification: CE

    Payment & Shipping Terms:

    Minimum Order Quantity: 50pcs
    Packaging Details: cartons, pallet
    Delivery Time: 7~10 working days
    Payment Terms: T/T, Western Union, MoneyGram, L/C
    Supply Ability: 100000 pcs per Month
    Contact Now
    Detailed Product Description
    Power Source: Electric Dimension: Customized
    Voltage: 12-480V Sheath Material: Stainless Steel Or Nickel
    Cross Section: 2.2*4.2mm Style: Straight Or Coil
    Lead Wire: Copper, , Fiberglass Silicon Coiling Scheme: Tangential, Radial Exits, Axial
    High Light:

    electric resistance heater

    ,

    coil heater with thermocouple

    Customized Hot runner brass nozzle heater pressed with thermocouple



    Description:



    1) GME Band heaters can be found in several types of dimension, wattage, voltages and material. Mica band heaters are an inexpensive industrial heating solution that surrounds pipes and tubes that require external indirect heating.



    2) Pipe heating, drum heating, barrel heating normally used for oils, lubricants or any other circular applications. Band heaters use electric heating elements (NiCr wire) to heat-up the external surface of drums or pipes for a gradual heat transfer.



    3) Industrial band heaters can be made with terminal boxes or moisture resistant terminal boxes that protect terminations and have the option of a thermostat or thermocouple digital temperature controllers to help control and regulate an applied heat.



    Specification:


    1.Sealed band heater in brass, with folded ends.
    2.Band heater connection, waterproof technology.
    3.Electric insulation by mica plate.
    4.Connection: nick core, fiberglass insulated+earth wire, protected by a galvanized steel braid.
    5.Max watt density: 5W/cm, (Wattage tolerance: +5%-10%)
    6.Diameter: 25-150 mm
    7.Height: 25-70 mm
    8.Max. operating temperature over the surface of the heater 340 ℃,depending on working conditions.



    Sheath Material

    Chrome Nickel Steel



    Insulators

    High Grade Steatite Ceramic Insulators (High temperature)



    Heat Saving Thermal Insulation

    Ceramic Fibre (std.)



    Heating Elements (coil)

    NiCr 60:16, NiCr 80:20



    Nominal Wall Thickness

    Premium Heat : ½" Power Saver : ½" + 5/8" (Outer Insulation) Power Saver PLUS :½" + 1.5" ( Outer Insulation)



    Connection

    Fiber Glass Insulated- Metal Braided Flexible Cable

    (std. 12" long) mounted on rigid screw post terminals



    Voltage Range

    110V - 440V, Single



    Surface Loading

    35-55W / inch2 (depending upon model & application)



    Power Rating

    Depending upon application



    Power Tolerance

    ± 10%



    HV Testing

    1.5 Kv between heating element and sheath



    Insulation Resistance (Cold)

    < 20 MΩ



    Sheath Temperature

    Up to 500°C maximum (Chrome Nickel Steel sheath)



    Gap Between the Clamping Edge

    5 - 10mm



    Resistance

    +/- 10%



    Width :

    Minimum 30mm and there after multiples of 15mm. Minimum 100mm in case of Power saver & Power Saver

    PLUS



    Inner Diameter

    Minimum 50mm Minimum 75mm incase of Power saver & 100mm for Power Saver PLUS







    Customized Hot Runner Brass Nozzle Electric Resistance Heater Pressed With Thermocouple



    Application:



    Injection molding

    Blow-molding

    Plastic extrusion

    Container, pipe, or tank heating

    Pharmaceutical applications

    Applications in the food industry

    Extruder barrel & die heaters

    Hot runner mould systems

    The industry

    Shoes manufacturer

    Semiconductor electric welding

    Die casting

    Engineering industry

    packing equipment

    water heating and injection

    refrigeration
