Silicon Carbide Rod SiC Heater Element Thermocouple Components for Industrial Heating

Silicon Carbide Rod SiC Heater Element Thermocouple Components for Industrial Heating

    • Silicon Carbide Rod SiC Heater Element Thermocouple Components for Industrial Heating
    • Silicon Carbide Rod SiC Heater Element Thermocouple Components for Industrial Heating
    • Silicon Carbide Rod SiC Heater Element Thermocouple Components for Industrial Heating
  • Silicon Carbide Rod SiC Heater Element Thermocouple Components for Industrial Heating

    Product Details:

    Place of Origin: China
    Brand Name: GME
    Certification: ISO

    Payment & Shipping Terms:

    Minimum Order Quantity: 100 pcs
    Price: Negotiation
    Packaging Details: Standard Export Packing
    Delivery Time: 5-25 days
    Payment Terms: T/T, Western Union, Paypel
    Supply Ability: 5000 Piece/Pieces per Month
    Contact Now
    Detailed Product Description
    Heating Power: 3750W Resistance: 0.95 10%(C)
    Operating Voltage: 59.70V Size: 647 X 104mm
    Diameter Of Heating Element: OD 19mm Length Of Heating Element: 272mm
    Diameter Of Cold: OD 19mm Length Of Cold Part: 350mm
    Center: 52 -/+ 0.5mm Termal Expansion: 4.5 X /K
    Thermal Conductivity: 100W/k.m( C), 25W/k.m( C) The Minimum Diameter Of The Hole: 7mm
    SiC Content: 98.5% Type: Air Heater
    Warranty: 1 Year Working Temperature: 600C-1600C
    Application: Furnace Heating
    High Light:

    thermocouple parts and components

    ,

    thermocouple assemblies





    Silicon Carbide Rod SiC Heater Element for Industrial Heating



    1. Introduction



    SiC Heater Element is a kind of non-mental high temperature electric heating element.It is made of selected high-purity green silicon carbide as raw material which is made into blank and silicon crystal under high temperature of 2400ºC. It mainly used for furnance heating temperature from 600C-1600ºC. It is widely used in electric heating of glass, chemical, electronic material etc.



    SiC Content 98.5%
    Type Air Heater
    Tube diameter 8mm to 50mm
    Voltage 110-480V
    Warranty 1 Year
    Material Silicon Carbide (SiC)
    Working temperature 600C-1600C
    Application Furnace heating

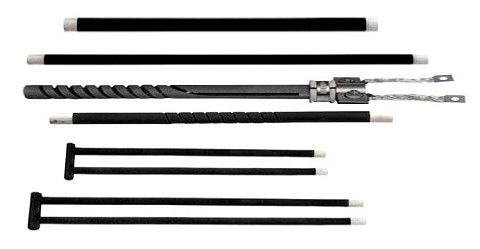

    2. Types

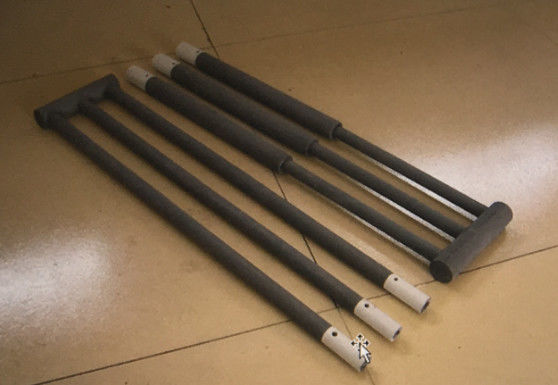

    1. U Type SiC Heater Element



    Silicon Carbide Rod SiC Heater Element Thermocouple Components for Industrial Heating

    2.W Type SiC Heater Element



    Silicon Carbide Rod SiC Heater Element Thermocouple Components for Industrial Heating



    3.Spiral Type SiC Heater Element



    Silicon Carbide Rod SiC Heater Element Thermocouple Components for Industrial Heating



    4.Double Spiral Type SiC Heater Element



    Silicon Carbide Rod SiC Heater Element Thermocouple Components for Industrial Heating



    5.GC ( Dumb bell type )and GD (Rod)Type SiC Heater Element



    Silicon Carbide Rod SiC Heater Element Thermocouple Components for Industrial Heating





    3. Features



    1. withstand high temperature as high as 1600℃

    2. high strength and excellent shock resistance

    3. heat source is free of noise and air pollution

    4. anti-oxidization, anti-corrosion

    5. easy to installation and maintenance





    4. specification



    Silicon Carbide Rod SiC Heater Element Thermocouple Components for Industrial Heating



    5. Tips for usage



    1. Be protected against damp during storing or installing to ensure the performance ;

    2. Divided before assembling. The tolerance of the resistance of each one cannot exceed by 10% each other;

    3. Be careful when using and maintaining;

    4. When operating the electric furnace at the beginning, the voltage should be increased slowly and cannot be fully loaded at once. Otherwise the larger current will be resulted in the damage of heater.

    5. When heater is damaged and need to be changed, the resistance of new ne should follow the increasing resistance. If many are damaged or resistance increased too much, heater should be changed.





    6. Packing and Delivery



    1. Packing

    Export carton packing box for small qty;

    Export wooden packing box for large qty.



    2. Shipping

    Fedex/DHL/UPS/TNT for samples, Door-to-Door;

    By Air or by Sea for batch goods;

    Customers specifying freight forwarders or negotiable shipping methods;

    Delivery Time: 3-7 days for samples; 5-25 days for batch goods.



    Silicon Carbide Rod SiC Heater Element Thermocouple Components for Industrial Heating
