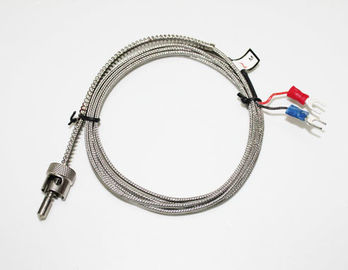

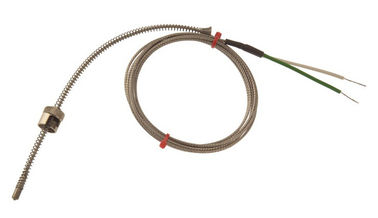

K Type Adjustable Bayonet Fiberglass Insulation Wire Thermocouple Probe

K Type Adjustable Bayonet Fiberglass Insulation Wire Thermocouple Probe

    • K Type Adjustable Bayonet Fiberglass Insulation Wire Thermocouple Probe
    • K Type Adjustable Bayonet Fiberglass Insulation Wire Thermocouple Probe
  • K Type Adjustable Bayonet Fiberglass Insulation Wire Thermocouple Probe

    Product Details:

    Place of Origin: China
    Brand Name: GME
    Certification: ISO9001/CE

    Payment & Shipping Terms:

    Minimum Order Quantity: 10 pcs
    Price: Negotiation
    Packaging Details: Standard Export Packing
    Delivery Time: 7~20 working days after received your payment
    Payment Terms: T/T, Western Union,Paypel
    Supply Ability: 100000 pcs per Month
    Contact Now
    Detailed Product Description
    Product Name: Thermocouple Probe Calibration: K
    Probe Size: OD 1/8'' Wire Length: 1 Meter
    Insulation: Fiberglass Accuracy: Class I
    Probe Material: SS304 Max.temperature: 900F Or 500C
    Protection Material: Stainless Steel Braided Screen
    High Light:

    temperature sensor rtd

    ,

    temperature sensor rtd pt100





    K Type Adjustable Bayonet Fiberglass Insulation Wire Thermocouple Probe



    1.Specification



    Probe material

    SS 304



    Calibration

    Type K



    Accuracy

    Class I



    Junction

    Ungrounded , Ground



    Wire description

     fiberglass insluation and Stainless Steel Braided Screen protection



    Termination type

    3” split leads and 1/2” Bare Ends,

    3” split leads and 1/2” Spade lugs,

    Stranded Male Plug,

    Stranded Female Jack,

    Mini Male Plug,

    Mini Female Jack,



    Accessories

    None,

    Bx connector,

    Cable clamp





    2. Feture



    1. The Adjustable bayonet thermocouple allows for simple and rapid adjustment of the immersion length to each application , which can be adjusted to a specific length and mounted into the process directly ;
    2. The Adjustable bayonet thermocouple are available with a variety of fixing mechanisms ;
    3. With or without stainless steel overbraid or interlocking flexible armour cable;
    4. Wire and tube construction ;
    5. Easily replaceable and interchangeable



    3. Application:

    1. Plastics and rubber industry;
    2. Dies for extrusion profiles;
    3. Direct installation into the process;
    4. Packaging industry;
    5. Compression platens;

    K Type Adjustable Bayonet Fiberglass Insulation Wire Thermocouple Probe
