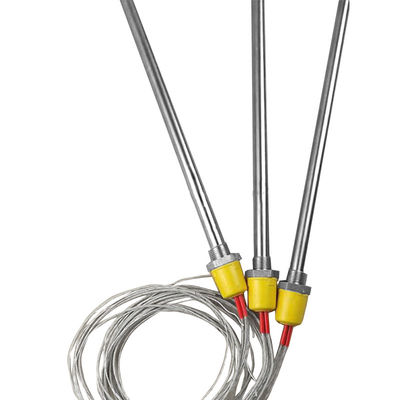

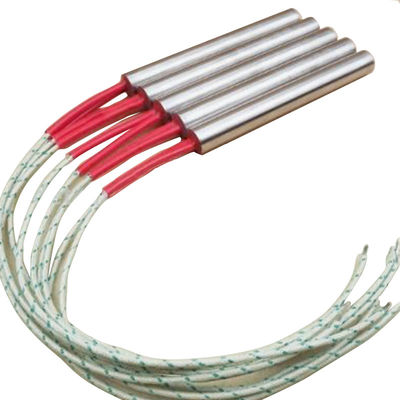

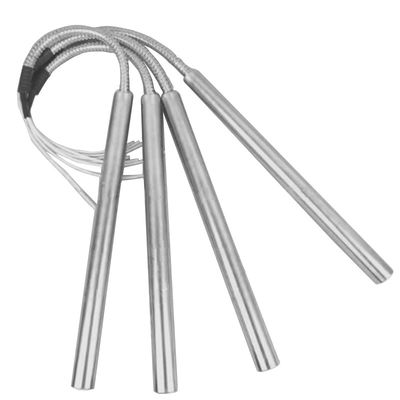

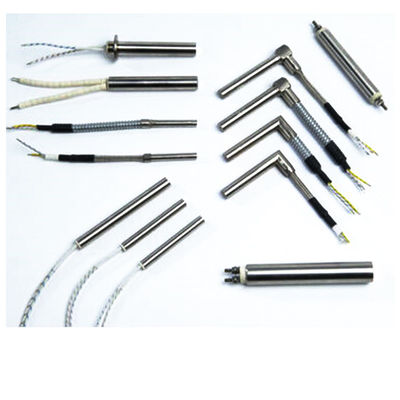

Durable and acurate customized 3mm diameter cartridge heaters Voltage 12-480V Power 0.3-30KW

Durable and acurate customized 3mm diameter cartridge heaters Voltage 12-480V Power 0.3-30KW

    • Durable and acurate customized 3mm diameter cartridge heaters Voltage 12-480V Power 0.3-30KW
    • Durable and acurate customized 3mm diameter cartridge heaters Voltage 12-480V Power 0.3-30KW
    • Durable and acurate customized 3mm diameter cartridge heaters Voltage 12-480V Power 0.3-30KW
    • Durable and acurate customized 3mm diameter cartridge heaters Voltage 12-480V Power 0.3-30KW
  • Durable and acurate customized 3mm diameter cartridge heaters Voltage 12-480V Power 0.3-30KW

    Product Details:

    Place of Origin: China
    Brand Name: GME
    Certification: CE, ISO

    Payment & Shipping Terms:

    Minimum Order Quantity: 50pcs
    Price: Negotiable
    Packaging Details: cartons, pallet
    Delivery Time: 7~10 working days
    Payment Terms: T/T, Western Union, MoneyGram, L/C
    Supply Ability: 100000 pcs per Month
    Contact Now
    Detailed Product Description
    Type: Immersion Heater, Cartridge Heater Material: Stainless Steel
    Insulation Material: High-purity Mgo Powder Heating Resistance Wire: Max 800°C
    Working Temperature: Max 800°C Insulation Resistance: Min5Ω
    High Light:

    cartridge immersion heater

    ,

    cartridge heater with thermocouple

    1. Product description



    Type: Immersion Heater, Cartridge Heater Power Source: Electric, Voltage: Customized, 12-480V
    Dimension(L*W*H): Customized Weight: Customized Material: Stainless steel ss304/316/321/Incoloy 800 etc.
    Power(W): Customized, 0.3-30KW Certification: CE,ISO Warranty: one year
    Insulation material: High-purity Mgo powder Temperature Range: 0-750C/32-1382F



    2. Specification



    1. Sheath material: stainless steel ss304/316/321/Incoloy 800 etc.

    2. Insulation Material:High-purity Mgo powder

    3. Heating resistance wire:Cr20Ni80



    4. Working temperature: max 800°C

    5. Diameter range (mm):2.6mm-30mm

    6. Length range (mm):15mm-3000mm



    7. Rated voltage (110-220):max1.27 times

    8. Insulation resistance: min5Ω

    9. With(and voltage:1500v/min)

    10. Designed life:3000 hours



    3. Detailed information:



    1. The smallest diameter could be 2 to 3 mm.
    2. Unlimited length, 15 to 2000mm
    3. High power density, and the highest power density could be 50W per square centimeter.
    4. Long life time
    5. Warranty: One year
    6. Different type of wire available according to the usage environment.



    Durable and acurate customized 3mm diameter cartridge heaters Voltage 12-480V Power 0.3-30KW

    Durable and acurate customized 3mm diameter cartridge heaters Voltage 12-480V Power 0.3-30KW



    Durable and acurate customized 3mm diameter cartridge heaters Voltage 12-480V Power 0.3-30KW

    4. Applications:

    3D printer.
    Extruder.
    Injection & blow moulding.
    Food processing machinery.
    Packing machine.
    Hot runner bushing.
    Hot plates, molds & dies.
    Medical equipment.



    5. Delivery



    Height 31MM Coil Heater With Stainless Steel Armor Outside And Type J Thermocouple
