| Product Name: | Cartridge Heater | Thermocouple: | None |
|---|---|---|---|
| Tube Material: | High Quality 304SS, 316L | Resistance Wire: | Cr20Ni80 |
| Insulation Material: | 99.99% High Purity Magnesium | Tolerance Of Length: | +/-1.5% |
| Wattage: | 0.5-15KW | ||
| High Light: | cartridge immersion heater,cartridge heater with thermocouple |
||

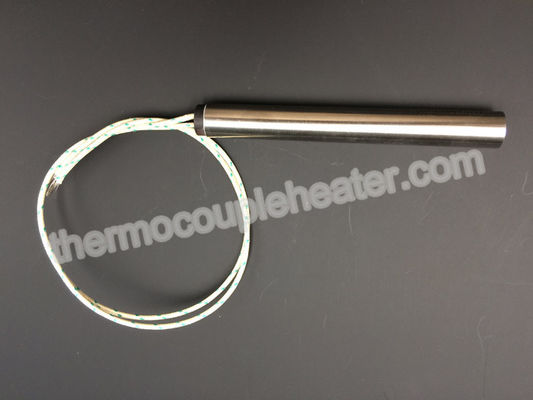

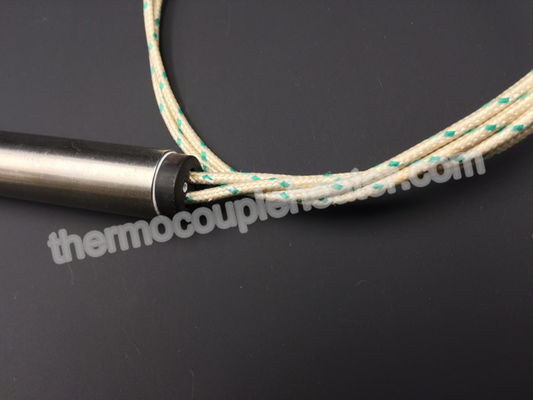

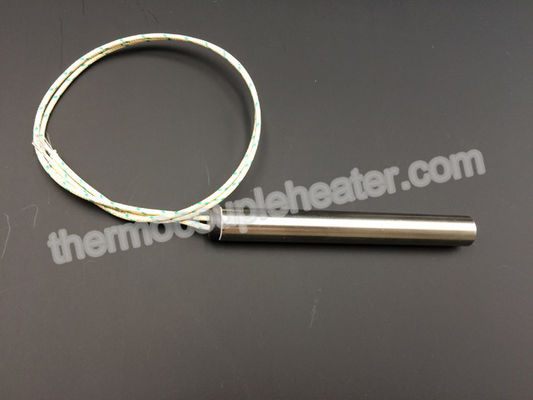

277V 500W Cartridge Heaters in 100mm Length With Internally Leads
Description:
Cartridge heater is cylindrical electrical heating elements. Protected with a stainless steel sheath, their watt density can reach 25 W/cm2 and their operating temperature can go up to 800°C (1472°F)
Mostly cartridge heater is used for heating up solids such as injection presses heating plates or various tools, cartridge heater can also be used for heating up water of gases under certain conditions. Widely used for manufacturing plastic and rubber parts in the car industry or in the food processing industry, etc . cartridge heaters are also commonly found in the chemical, electronics, medical equipment, packing and nuclear industries. Various cartridge heater technologies are available. The choice of technology will depend on technical specifications required and the application. Unless you know exactly which product you are looking for, we will recommend you the best solution for your needs.
Technical Details
1. Inside magnesium oxide insulation material: 99.99% high purity magnesium oxide
2. Heating element: high durance and high temperature NiCr2080 heating elements from Germany
3. TC material: High quality TC elements to ensure ±5 ℃tolerance
4. Max working temperature: 400℃
5. High voltage stability test:
6. Less than 0.5mA leak under 1000V for 30 seconds
7. OD range: 3mm-32mm
8. The range of the Total Length: 25mm----2500mm
9. Maximum power density: 40w/cm²
10. Unheated zone: 10mm at lead end and about 5mm at bottom
11. Lead options:
A: Solid Nickel Pin: wire 300℃ or 500℃
B: Swaged in wire: 500℃ wire coming from inside
Specifications:
| Heat intensity | Not exceeding 30Wcm2 (advisable) |
| Power | Depends on the dimension |
| Escape of current (when cold) | <=0.1mA a 242 v. |
| Insulation (when cold) | 5 Min Ohmios 500 Watts minimum |
| Dielectric strength | 1500v. 1/seg |
| Working temperature | 750ºG max. |
| Tolerance of length | +/-1.5% |
| Tolerance of diameter | -0.01 a -0.06 m/m |
| Tolerance of cut of connexion | +/-15 mlm |
| Power tolerance (w) | 5 % - 10 % |
| Cold areas | Depends on length and diameter 5-25mm |
Applications:
1.Injection moulding - Internal heating of nozzles
2.Hot runner systems - Heating of manifolds
3.Packaging industry - Heating of cutting bars, hot stamps
4.Laboratories - Heating of analytical equipment
5.Medical: Dialysis, Sterilization, Blood Analyzer, Nebulizer, Blood/Fluid Warmer, Temperature Therapy
6.Telecommunications: Deicing, Enclosure Heater
7.Transportation: Oil/Block Heater, Aircraft Coffee Pot Heaters,
8.Food Service: Steamers, Dish Washers,
9.Industrial: Packaging Equipment, Hole Punches, Hot Stamp.
