Wuhan Global Metal Engineering Co., Ltd
The pioneer manufacturer of heaters & sensors
 |
| Place of Origin: | China |
| Certification: | ISO9001 |
| Model Number: | OEM |
| Minimum Order Quantity: | 10pcs |
|---|---|
| Packaging Details: | Standard Export Packing |
| Delivery Time: | 7-15days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/month |
| Brand Name: | OEM | Dimension: | Custom Size |
|---|---|---|---|
| Warranty:: | 6000hours | Voltage: | 12-480v |
| Product Name: | Industrial Electric Cartridge Heater | Material: | Stainless Steel Sheath |
| High Light: | cartridge immersion heater,cartridge heater with thermocouple |
||

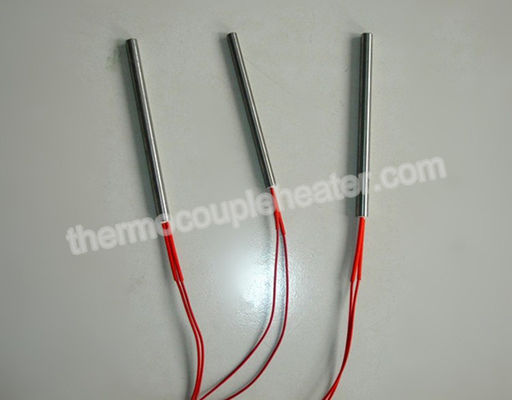

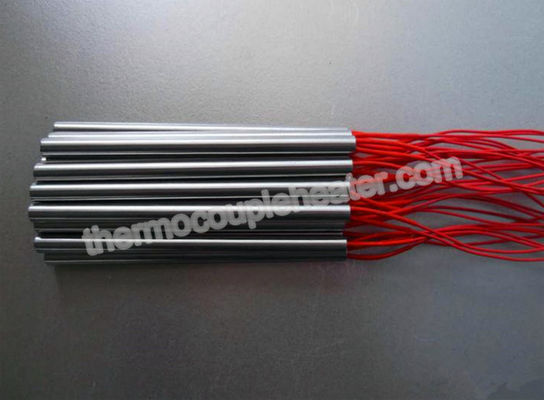

Industrial electric Cartridge Heater, heating rod for mold heating
Description
1. Small size, big power
2. Heat fast response, high precision temperature control, high overall thermal efficiency.
3. Apply a wide range of adaptability: the cycle heater suitable for explosion-proof or ordinary occasions, it's proof grade up to B grade and C grade, its pressure up to 10Mpa. And the use of vertical or horizontal installation according to user needs cylinder.
The heating temperature is high: The heater design maximum working temperature up to 850 ℃, which is generally the heat exchanger can not be obtained.
5. Full automatic control: through the heater circuit design, can easily achieve outlet temperature, pressure, flow and other parameters of automatic control, and computer networking, to achieve human-computer dialogue.
6. Long life, high reliability: the electric heater is made of special material, combined with design power load than those reasonable heater with multiple protection, so that the safety and life of the heater is greatly increased.
7. stainless steel electric heating rods is a metal tube housing axially along the tube within the central uniform spiral heating alloy wire (nickel-chromium, iron-chromium alloy) compacted fill voids with good thermal insulation properties of magnesium sand, two nozzle ends with silicone or ceramic seal, the metal sheathed heating elements can heat the air, metal molds and various liquids. In the high temperature stainless steel seamless pipe evenly distributed temperature resistance wire, in the space portion densely populated thermal conductivity and insulation properties are good crystalline magnesium oxide powder, this structure is not only advanced, high thermal efficiency and heat evenly, when the high temperature resistance There are current through the wire, the heat generated by the crystallization of magnesium oxide powder to the metal tube surface diffusion, and then passed to the destination is the heating element or air to reach the heating.
Parameter
Heating Wire: Ni80Cr20
Insulation: Magnesium Oxide (High purity)
Outside Diameter:6mm 6.5mm 8mm 10mm 12mm 12.5mm 13mm 15mm 17.5mm 20mm
Inserted Length:Customized.
Overall Length:Customized.
Sheath: Incoloy840&800,SUS304,SUS316,SUS321.
Watts:Customized.
Volts: 12Volts: 110v 200v 220v 230v 240v 380v 415v
Lead Length:Customized.
Lead Exit: straight / 90°
Applications
1.Plastic Processing
2.Packaging Machinery
3.Injection and Blowing Moulding
4.Extruders
5.Foundries
6.For Fastening of turbine bolts
